Digi-Sense Type J High-Temperature Thermocouple Probes; 25" L

(0)No Reviews yet
$94.72 $108.25
4 – 9$92.01
10 +$89.31
SKU: WD-08517-97
Item Number: WD-08517-97
Model Number: 08517-97
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08517-97
Condition: New

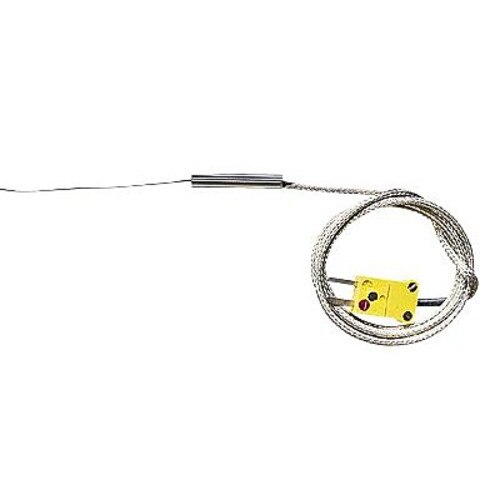

Digi-Sense Type-J Thermocouple Probe, High-Temperature, 25 inch L x 0.063 inch Dia, Grounded Junction, 3 feet SS Armored Fiberglass Cable, Mini ANSI Connector (each)

High-Temperature Thermocouple probes are designed for multiple bends ideal for any environment

  • Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
  • Response Time: .85 seconds or greater
  • Ideal for industrial environments where fast accurate readings are required
  • Fiberglass insulated cable with stainless steel overbraid
  • Probe comes with a color coded ANSI mini connector: type J-black
Note: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-J
Grade: High-Temperature
Material: Inconel® 600
Temperature Range: -310 to 500°F (-190 to 260°C)
Connections: Mini ANSI Connector
Probe Length: 25 inches x 0.063 inch diameter
Cable Length: 3 feet
Overall Dimensions: Sheath: 25 inch length x 0.063 inch diameter
Notes: Grounded Junction
