Digi-Sense Type-T Dropping / Magnetic Probe 1.5" L Mini-Connector, Exposed 10ft SS Braid Cable

(0)No Reviews yet
$164.90 $194.00
2 – 9$160.05
10 +$155.20
SKU: WD-08525-86
Item Number: WD-08525-86
Model Number: 08525-86
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08525-86
Condition: New

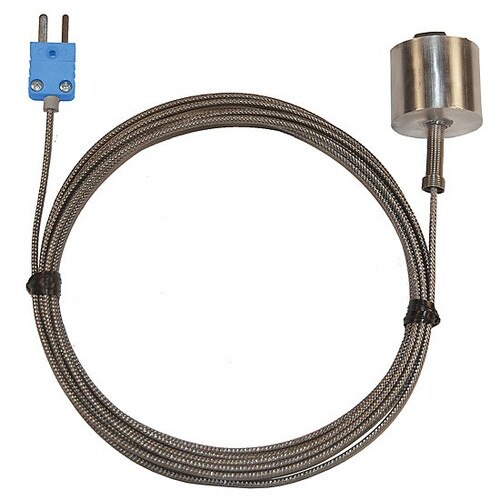

Digi-Sense Type-T Thermocouple Probe, Dropping / Magnetic, 1.5 inch L x 1 inch Dia, Exposed Junction, 10 feet SS Armored Fiberglass Cable, Mini ANSI Connector (each)

Magnetic probes are designed for monitoring a wide range of flat surfaces

  • Easily attach to any ferrous surface
  • Ideal for long term installation
  • Magnet strength is 15lbs max
  • Response Time: 1.25 seconds or greater
  • Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-T
Grade: Dropping / Magnetic
Material: Aluminum Housing
Temperature Range: -328 to 500°F (-200 to 260°C)
Temperature Accuracy: ±2.7°F (1.5°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 1.5 inches x 1 inch diameter
Cable Length: 10 feet
Pack Quantity: 1
Packaging: each
Overall Dimensions: Sheath: 1.5 inch length x 1 inch dia
Notes: Exposed Junction
