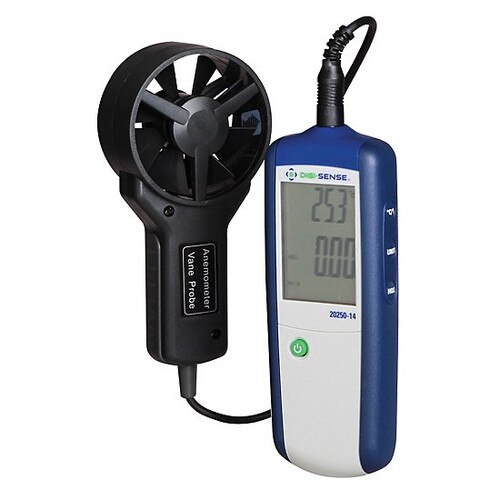

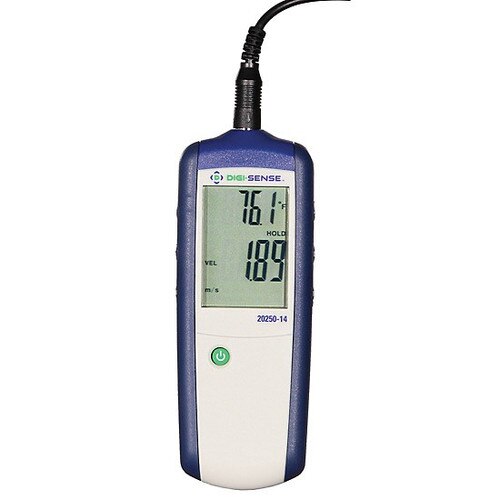

Digi-Sense CFM/CMM Vane Thermoanemometer with NIST-Traceable Calibration
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Digital Vane Anemometer, with a NIST Traceable Calibration Certificate
The Digi-Sense CFM/CMM vane thermoanemometer is designed for precision air velocity and airflow measurements in seven user-selectable units of measurement (ft/min, m/s, mph, km/h, knots, CFM, and CMM). The instrument will help you meet cooling and environmental requirements for safety and comfort. The large dual display allows you to simultaneously read air velocity or airflow, and air temperature (°F/°C).
Key features include:
The Digi-Sense CFM/CMM vane thermoanemometer is designed for precision air velocity and airflow measurements in seven user-selectable units of measurement (ft/min, m/s, mph, km/h, knots, CFM, and CMM). The instrument will help you meet cooling and environmental requirements for safety and comfort. The large dual display allows you to simultaneously read air velocity or airflow, and air temperature (°F/°C).
Key features include:
- High precision with extra large backlit LCD and flow area data storage
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- User-selectable units of measure eliminate the need for conversion
- Measure air velocities up to 5900 ft/min (30 m/s) to cover a broad range of applications
- Measure air flow up to 999,900 CFM, 999,900 CMM
- Two memory locations, one CFM and one CMM, store commonly used vent area sizes to save you time
- Large dual-function 4-digit LCD with backlight for easy reading
- Auto power-off extends battery life
- Fits comfortably in your hand
| Product Type: | Anemometer |
| Brand: | Digi-Sense |
| Class: | Digital |
| Range: | Air velocity: 0.40 to 30 m/s, 80 to 5900 ft/min, 1.4 to 108.0 km/hr, 0.9 to 67.0 mph, 0.8 to 58.0 knots; Air flow: 0 to 999,900 CFM, 0 to 999,900 CMM; Air temperature: 32 to 122°F, 0 to 50° |
| Resolution: | Air velocity: 0.01 m/s, 1 ft/min, 0.1 km/hr, 0.1 mph, 0.1 knots; Air flow: 0.001 to 100 CFM, 0.001 to 100 CMM; Air temperature: 0.1°F, 0.1°C |
| Accuracy: | Air velocity: ±(3% + 0.20 m/s), ±(3% + 40 ft/min), ±(3% + 0.8 km/hr), ±(3% + 0.4 mph), ±(3% + 0.4 knots); Air temperature: ±4.0°F, ±2.0°C |
| Cable Length: | 3.9 ft |
| Display: | LCD, backlit |
| Operating Modes: | Min/Max/Ave, data hold |
| Units of Measure: | Air velocity: m/s, ft/min, km/hr, mph, knots; Airflow: CFM, CMM; Air temperature: °C or °F |
| Warranty: | 2 years |
| Overall Dimensions: | Meter: 6.75 x 2.5 x 1 inches, Vane sensor head: 2.75 inch diameter |
| Includes: | Vane probe sensor with 3.9-ft (1.2-m) cable, three AAA batteries, and NIST-traceable calibration report with data supplied by InnoCal. |
