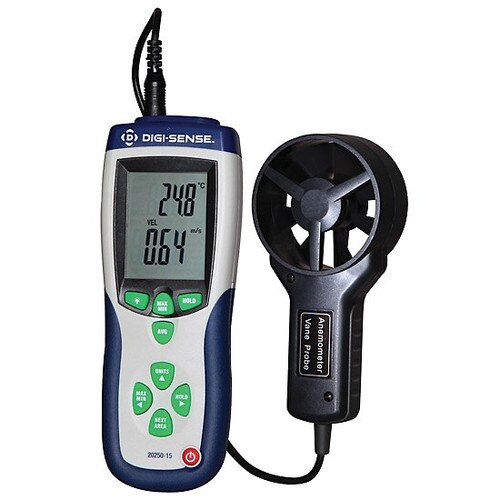

Digi-Sense Professional CFM/CMM Vane Thermoanemometer with NIST-Traceable Calibration
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Professional CFM/CMM Vane Thermoanemometer with a NIST Traceable Calibration Certificate (each)
The Digi-Sense Professional CFM/CMM vane thermoanemometer is designed for precision air velocity and airflow measurements in seven user-selectable units of measure (ft/min, m/s, mph, km/h, knots, CFM, and CMM). The instrument will help you meet cooling and environmental requirements for safety and comfort. The large dual display allows you to simultaneously read air velocity or airflow and air temperature.
Air velocity, airflow, and temperature parameters can be measured on a single point, average, maximum or minimum basis. Up to 16 memory storage locations (8 CFM and 8 CMM) for commonly tested air vent sizes are available to save time. A foam-cut hard carrying case is included to protect the instrument between uses.
Key features include:
The Digi-Sense Professional CFM/CMM vane thermoanemometer is designed for precision air velocity and airflow measurements in seven user-selectable units of measure (ft/min, m/s, mph, km/h, knots, CFM, and CMM). The instrument will help you meet cooling and environmental requirements for safety and comfort. The large dual display allows you to simultaneously read air velocity or airflow and air temperature.
Air velocity, airflow, and temperature parameters can be measured on a single point, average, maximum or minimum basis. Up to 16 memory storage locations (8 CFM and 8 CMM) for commonly tested air vent sizes are available to save time. A foam-cut hard carrying case is included to protect the instrument between uses.
Key features include:
- Save time by storing up to 16 commonly used vent area sizes into memory (eight CFM and eight CMM)
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards by InnoCal
- User-select units of measure (ft/min, m/s, mph, km/h, knots, CFM, and CMM) eliminates need for conversion
- Measure air velocities up to 5900 ft/min (30 m/s) to cover broad range of applications
- Measure air flow up to 999,900 CFM (999,900 CMM)
- Large dual function 4-digit LCD with backlight capability for easy reading
- Auto power-off extends battery life
- Fits comfortably in your hand
| Product Type: | Anemometer |
| Brand: | Digi-Sense |
| Range: | Air velocity: 0.40 to 30 m/s, 80 to 5900 ft/min, 1.4 to 108.0 km/hr, 0.9 to 67.0 mph, 0.8 to 58.0 knots; Air flow: 0 to 999,900 CFM, 0 to 999,900 CMM |
| Resolution: | Air velocity: 0.01 m/s, 1 ft/min, 0.1 km/hr, 0.1 mph, 0.1 knots; Air flow: 0.001 to 100 CFM, 0.001 to 100 CMM |
| Accuracy: | Air velocity: ±(3% + 0.20 m/s), ±(3% + 40 ft/min), ±(3% + 0.8 km/hr), ±(3% + 0.4 mph), ±(3% + 0.4 knots) |
| Temperature Range: | 32 to 122°F (0 to 50°C) |
| Temperature Resolution: | 0.1°F (0.1°C) |
| Temperature Accuracy: | ±4.0°F (±2.0°C) |
| Cable Length: | 3.9 ft |
| Display: | LCD, backlit |
| Operating Modes: | Min/Max/Ave, data hold, record |
| Units of Measure: | Air velocity: m/s, ft/min, km/hr, mph, knots; Airflow: CFM, CMM; Air temperature: °C or °F |
| Warranty: | 2 years |
| Overall Dimensions: | Meter: 8 x 3 x 2 inches, Vane sensor head: 2.75 inch diameter |
| Includes: | Vane probe sensor with 3.9-ft (1.2-m) cable, three AAA batteries, and NIST-traceable calibration report with data supplied by InnoCal. |
| Notes: | Data Logging: 16 memory locations (8 under CFM, 8 under CMM) |
