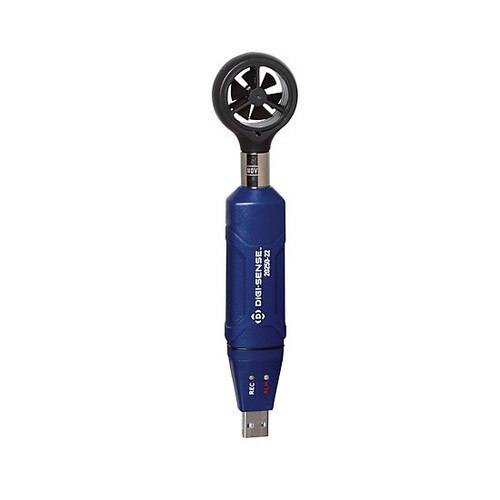

Digi-Sense Data Logging Vane Anemometer with NIST-Traceable Calibration
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Digital Data Logging Vane Anemometer, with a NIST Traceable Calibration Certificate
The Digi-Sense data logging anemometer is designed for precision air velocity measurements in five user-selectable units (ft/min, m/s, mph, km/h, or knots). The instrument will help you meet cooling and environmental requirements for safety and comfort. A metallic mounting stand is included that provides an opportunity to position the anemometer to best fit the application. Built-in USB interface and included software allow logged data to be easily downloaded to a PC for analysis and graphing.
Digi-Sense comes pre-calibrated, saving you hundreds of dollars and extra waiting time to calibrate separately
Key features include:
The Digi-Sense data logging anemometer is designed for precision air velocity measurements in five user-selectable units (ft/min, m/s, mph, km/h, or knots). The instrument will help you meet cooling and environmental requirements for safety and comfort. A metallic mounting stand is included that provides an opportunity to position the anemometer to best fit the application. Built-in USB interface and included software allow logged data to be easily downloaded to a PC for analysis and graphing.
Digi-Sense comes pre-calibrated, saving you hundreds of dollars and extra waiting time to calibrate separately
Key features include:
- Versatile handheld or mountable design for quick air velocity sampling or long term monitoring
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- User-selectable units of measure eliminate the need for conversions
- Measure air velocities up to 3937 ft/min (20.0 m/s) to cover broad range of applications
- Analyze and graph logged data using included software
- User-defined high and low alarm levels with visual LED indication to bring attention to potential problems
- Articulated screw-on mounting stand provides flexible positioning to fit the application
| Product Type: | Anemometer |
| Brand: | Digi-Sense |
| Range: | Air velocity: 1.1 to 20.00 m/s, 0.8 to 72.0 km/hr, 80 to 3937 ft/min, 0.9 to 44.8 mph, 0.8 to 38.8 knots |
| Resolution: | Air velocity: 0.01 m/s, 0.1 km/hr, 1 ft/min, 0.1 mph, 0.1 knots |
| Accuracy: | Air velocity: ±(3% + 0.20 m/s), ±(3% + 1.0 km/hr), ±(3% + 40 ft/min), ±(3% + 0.4 mph), ±(3% + 0.4 knot) |
| Display: | LCD, backlit |
| Units of Measure: | Air velocity: m/s, km/hr, ft/min, mph, knots |
| Warranty: | 2 years |
| Overall Dimensions: | 5.75 x 1.5 x 1.25 inches |
| Includes: | Data analysis software on CD, one 3.6 V replaceable battery, and NIST-traceable calibration report with data supplied by InnoCal. |
| Notes: | Data Logging: 32,000 datapoints; Logging Intervals: 2 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 30 min, 1 hr, 2 hr, 3 hr, 6 hr, 12 hr, 24 hr |
