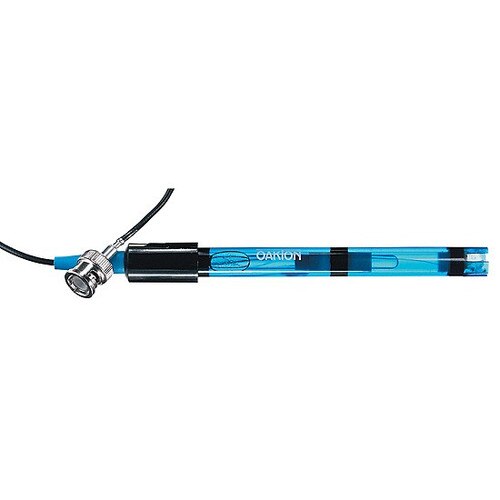

Cole-Parmer ORP in-line/submersible electrode, double junction, Pt sensor, 16 cm x ¾"
Cole-Parmer ORP Electrode, Double Junction, In-line/Submersible, Platinum Band Sensor, CPVC, Sealed, 10 feet Cable, BNC (each)
These rugged, permanently encapsulated combination electrodes can be placed in a tee-fitting for in-line or on a submersion pipe for easy tank mounting. Sealed KCl/AgCl reference, built-in 100O Pt temperature element and BNC connector
CPVC electrodes are impact resistant and provide excellent durability for field applications. Electrodes feature KCl/AgCl reference cells.
Max Temperature: 80°C (176°F)
These rugged, permanently encapsulated combination electrodes can be placed in a tee-fitting for in-line or on a submersion pipe for easy tank mounting. Sealed KCl/AgCl reference, built-in 100O Pt temperature element and BNC connector
CPVC electrodes are impact resistant and provide excellent durability for field applications. Electrodes feature KCl/AgCl reference cells.
Max Temperature: 80°C (176°F)
| Product Type: | ORP Electrode |
| Brand: | Cole-Parmer |
| Class: | All-in-One, Double Junction |
| Material: | CPVC |
| Range: | ±2000 mV |
| Temperature Range: | 32 to 176°F (0 to 80°C) |
| Connections: | BNC |
| Cable Length: | 10 feet |
| ATC: | Yes |
| Outer Diameter: | 1 inch |
| For Models: | Oakton pH 5+/6+, pH 6, Ion 5/6, Ion 6+, pH 10/100, pH 300/310, pH 500, pH 510, Ion 510, pH 1000/2100/2500, pH/CON 510, pH 700/2700, Ion 700/2700, PC700/2700 |
| Notes: | 3/4 inch NPT threads |
