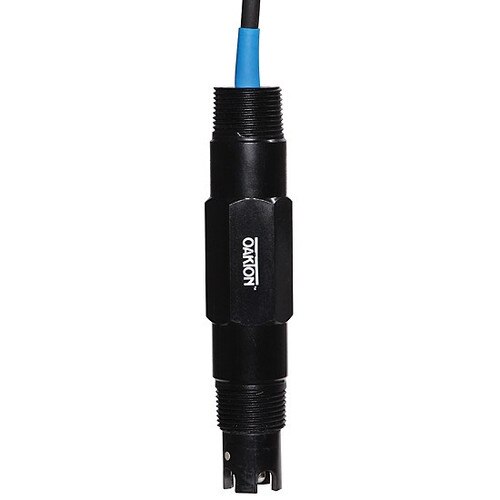

Oakton pH Electrode, Ryton Body, Stripped Wire
Images are for representation only. Actual product may differ in size, color or options.
Oakton pH Electrode and Temperature Sensor, Double PTFE Junction, Ryton® PPS, Gel-Filled, Sealed, Solution Ground, 10 feet Cable, ATC (Stripped Wire End), BNC (each)
These permanently encapsulated, double-junction combination electrodes have 3/4 inch NPT threads on both ends. Install in a tee fitting or on a submersion pipe for tank mounting.
Max Temperature: 100°C (212°F)
- Clog-resistant Teflon junction and Ryton body offer excellent chemical resistance
- Solution ground pin eliminates ground loop and electrical noise problems
- Great for tough wastewater and plating applications
These permanently encapsulated, double-junction combination electrodes have 3/4 inch NPT threads on both ends. Install in a tee fitting or on a submersion pipe for tank mounting.
Max Temperature: 100°C (212°F)
| Product Type: | pH Electrode and Temperature Sensor |
| Brand: | Oakton |
| Class: | Standard, Double PTFE Junction |
| Grade: | Industrial |
| Material: | Ryton® PPS, Gel-Filled |
| Range: | 0 to 13 pH |
| Temperature Range: | 32 to 212°F (0 to 100°C) |
| Connections: | ATC (Stripped Wire End), BNC |
| Cable Length: | 10 feet |
| ATC: | Yes |
| Outer Diameter: | 1 inch |
| For Models: | Oakton pHTester BNC, pH 5/6, Ion 6, pH5+/6+, Ion 6+, pH 10/11/100/110, pH300/310, pH500/510, Ion 510, pH 1000/1100/2100/2500, pH 700/2700, Ion 700/2700, PC 700/2700, pH/DO 300 , pH/CON 300, pH/CON 510, pH/CON 600/610/620, PC600, PD600, PDC650, and other meters with BNC pH electrodes |
| Overall Dimensions: | 6 inch L x 1 inch OD |
| Includes: | protective electrode storage bottle |
| Notes: | 3/4 inch NPT theads |
