Digi-Sense Type-J, High-Temperature Wire Probe, 25" Length, 0.063" Diameter, Mini-Connector, Exposed, 3 ft 24-Gauge Cable

(0)No Reviews yet
$54.08 $61.80
2 – 9$52.53
10 +$50.99
SKU: WD-93630-20
Item Number: WD-93630-20
Model Number: 93630-20
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 93630-20
Condition: New

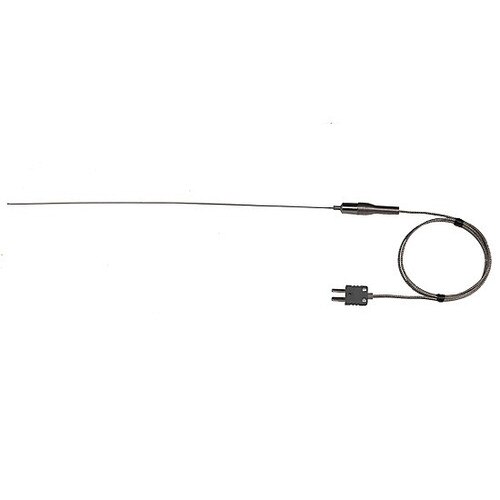

Digi-Sense Type-J Thermocouple Probe, High-Temperature Wire, 25 inch L x 0.063 inch Dia., Exposed Junction, 24 Gauge, 3 feet Stainless Steel Armored Fiberglass Cable, Mini ANSI Connector (each)

High-Temperature Thermocouple Probes designed for multiple bends in any environment

  • Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
  • Response Time: 1.5 seconds or greater
  • Probes are tightly packed with powdered MgO in 25 inch long sheaths
  • Each probe comes with a color coded ANSI Mini-Connectors: type J-black
Note: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-J
Grade: High-Temperature Wire
Material: Inconel® 600
Temperature Range: 32 to 825°F (0 to 440°C)
Temperature Accuracy: ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 25 inches x 0.063 inch diameter
Cable Length: 3 feet
Unit Size: 24 Ga
Overall Dimensions: Sheath: 25 inch length x 0.063 inch diameter; Handle: 1.5 inch length
Notes: Exposed Junction
