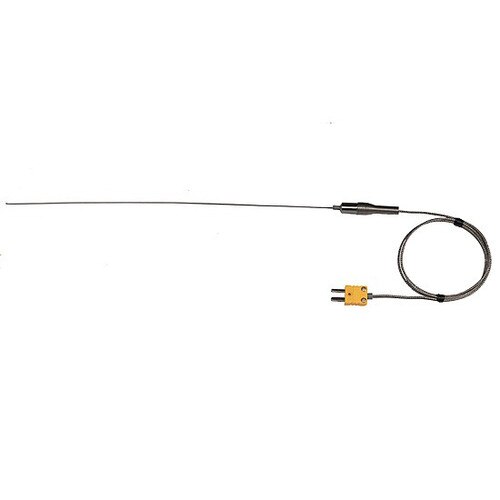

Digi-Sense Type-K, High-Temperature Wire Probe, 12" Length, 0.020" Diameter, Grounded, Mini-Connector, 3 ft 24-Gauge Cable

(0)No Reviews yet
$59.85 $68.40
4 – 9$58.14
10 +$56.43
SKU: WD-93631-01
Item Number: WD-93631-01
Model Number: 93631-01
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 93631-01
Condition: New


Digi-Sense Type-K Thermocouple Probe, High-Temperature Wire, 12 inch L x 0.02 inch Dia., Grounded Junction, 24 Gauge, 3 feet Stainless Steel Armored Fiberglass Cable, Mini ANSI Connector (each)

High-Temperature Thermocouple Probes designed for multiple bends in any environment

  • Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
  • Response Time: 0.3 - 1.5 seconds or greater
  • Probes are tightly packed with powdered MgO in 12 inch long sheaths
  • Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: High-Temperature Wire
Material: Inconel® 600
Temperature Range: -250 to 1290°F (-150 to 700°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 12 inches x 0.02 inch diameter
Cable Length: 3 feet
Unit Size: 24 Ga
Overall Dimensions: Sheath: 12 inch length x 0.02 inch diameter; Handle: 1.5 inch length
Notes: Grounded Junction
