WD-93756-04

(0) No Reviews yet
$88.00 $110.00
QuantityPrice
1 +$110.00
1 – 1$88.00
2 – 3$82.50
4 +$77.00
SKU: WD-93756-04

New

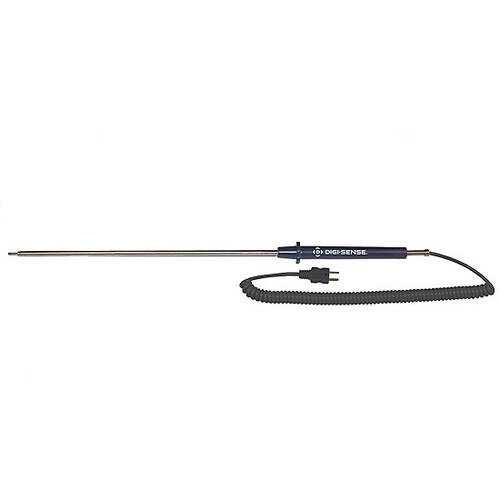

Digi-Sense Type-J Thermocouple Probe, Heavy-Duty Extra-Long, 24 inch L x 0.25 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

Heavy-Duty Extra-Long Penetration Probes are designed for use with liquids, gases and semisolids

  • Response Time: 2 seconds or greater
  • ABS handles provide a light weight design for ease of use along with durability
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with a color coded ANSI miniconnectors: type J-black
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-J
Grade: Heavy-Duty Extra-Long
Material: 316 Stainless Steel, ABS Plastic
Temperature Range: 32 to 1400°F (0 to 760°C)
Temperature Accuracy: ±5.9°F (3.3°C), or ±0.4% of reading above 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 24 inches x 0.25 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 24 inch length x 0.25 inch diameter; Handle: 5.5 inch length
Notes: Grounded Junction
