Digi-Sense Penetration Ctd Thermistor Probe, Phono Plug, 4" L, .188" Dia, 5ft Coil

(0)No Reviews yet
$123.81 $141.50
4 – 9$120.28
10 +$116.74
SKU: WD-93824-30
Item Number: WD-93824-30
Model Number: 93824-30
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 93824-30
Condition: New

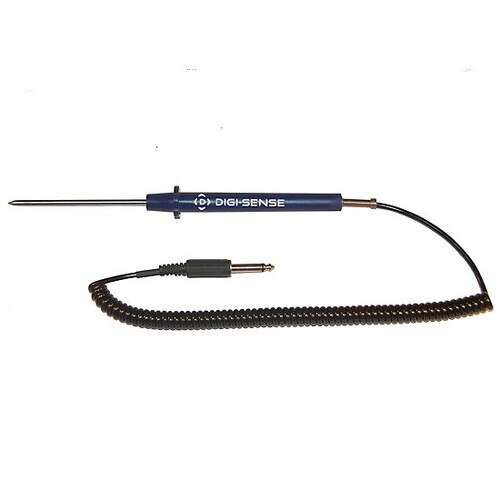

Digi-Sense Thermistor Probe, Penetration, 4 inch L x 0.188 inch Dia, 5 feet Cable, 1/4 inch Phono Plug (each)

Thermistor Probes offer excellent accuracy over the biological temperature range. These 100? RTD probes are for use with liquids, gases and semisolids.

  • Probes are electronically isolated and with a 1/4 inch mono plug
  • Epoxy coated probes can be used in liquid immersions
  • Time constant : 1-4 seconds or greater
Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega/omega/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega.

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C).

Product Type: Thermistor Probe
Brand: Digi-Sense
Class: 400-Series
Grade: Penetration
Material: 316 Stainless Steel, ABS Plastic
Temperature Range: -40 to 212°F (-40 to 100°C)
Temperature Accuracy: ±0.2°F from 32 to 150°F (0.1°C from 0 to 70°C)
Connections: 1/4 inch Phono Plug
Probe Length: 4 inches x 0.188 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 4 inch length x 0.188 inch diameter; Handle: 5.5 inch length
