ADM-PTM 500
Images are for representation only. Actual product may differ in size, color or options.

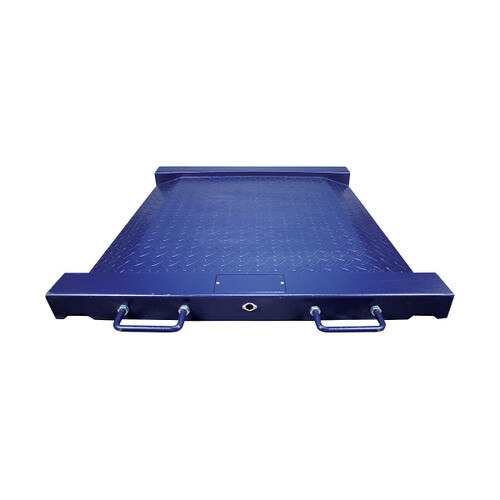

PTM Series 1100lb / 500kg Drum / Wheelchair Platform Scale

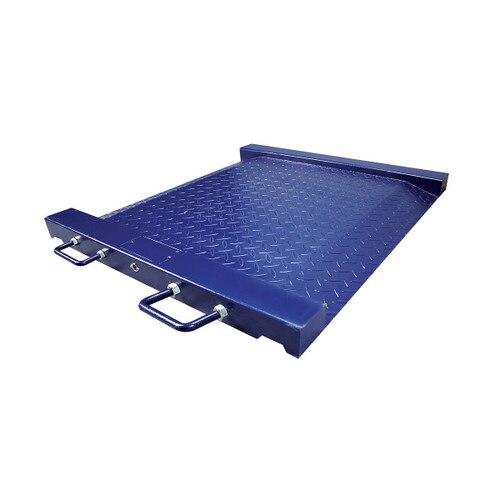

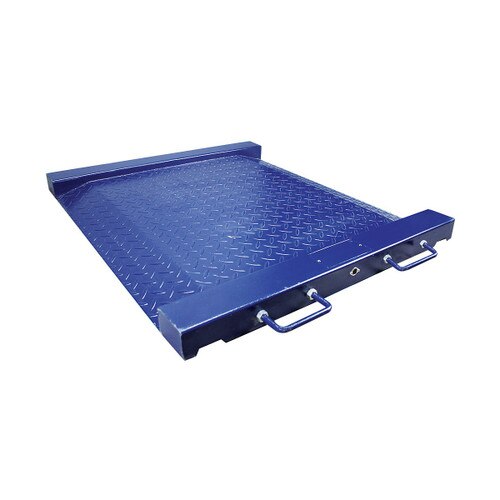

The PTM low profile platform is ideal for drums and wheelchairs. The easy access ramps on both sides offers smooth transitions from the floor to the weighing platform and the diamond checked platform offers a durable weighing area.
The PTM low profile platform is ideal for drums and wheelchairs. The easy access ramps on both sides offers smooth transitions from the floor to the weighing platform and the diamond checked platform offers a durable weighing area.
Features:
| Applications:
|
| Product Type: | Platform Scale |
| Brand: | Adam Equipment |
| Product Line: | PTM Series |
| Class: | Drum / Wheelchair Platform |
| Capacity: | 1100lb / 500kg |
| Readability: | 0.2lb / 100g |
| Repeatability (S.D.): | 0.4lb / 0.1kg |
| Linearity (±): | 0.4lb / 0.2kg |
| Pan Size: | 32.3 x 30.7 inches / 820 x 780 mm |
| Housing: | Mild Steel |

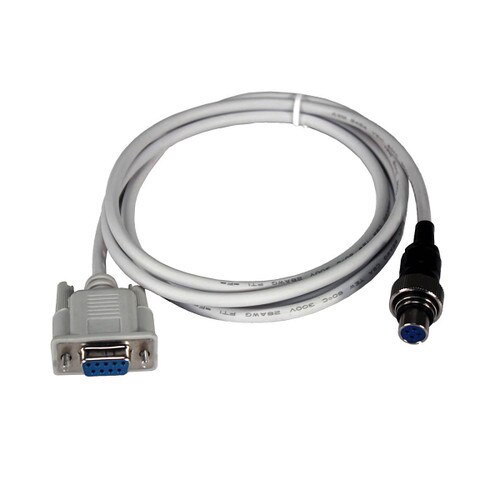

| Interface: | Bi-directional RS-232 |
| Units of Measure: | Pound (lb), Kilogram (kg) |
| Warranty: | 3 years |
| Net Weight: | 78.2 lb / 35.5 kg |
| Overall Dimensions: | 40.2 x 31.6 x 3 inches / 1020 x 803 x 75 mm |
| Working Environment: | -10° to 40°C / 14° to 104°F |
| Applications: | Animal Weighing Checkweighing Dynamic Weighing Parts Counting Percent Weighing Weighing |
