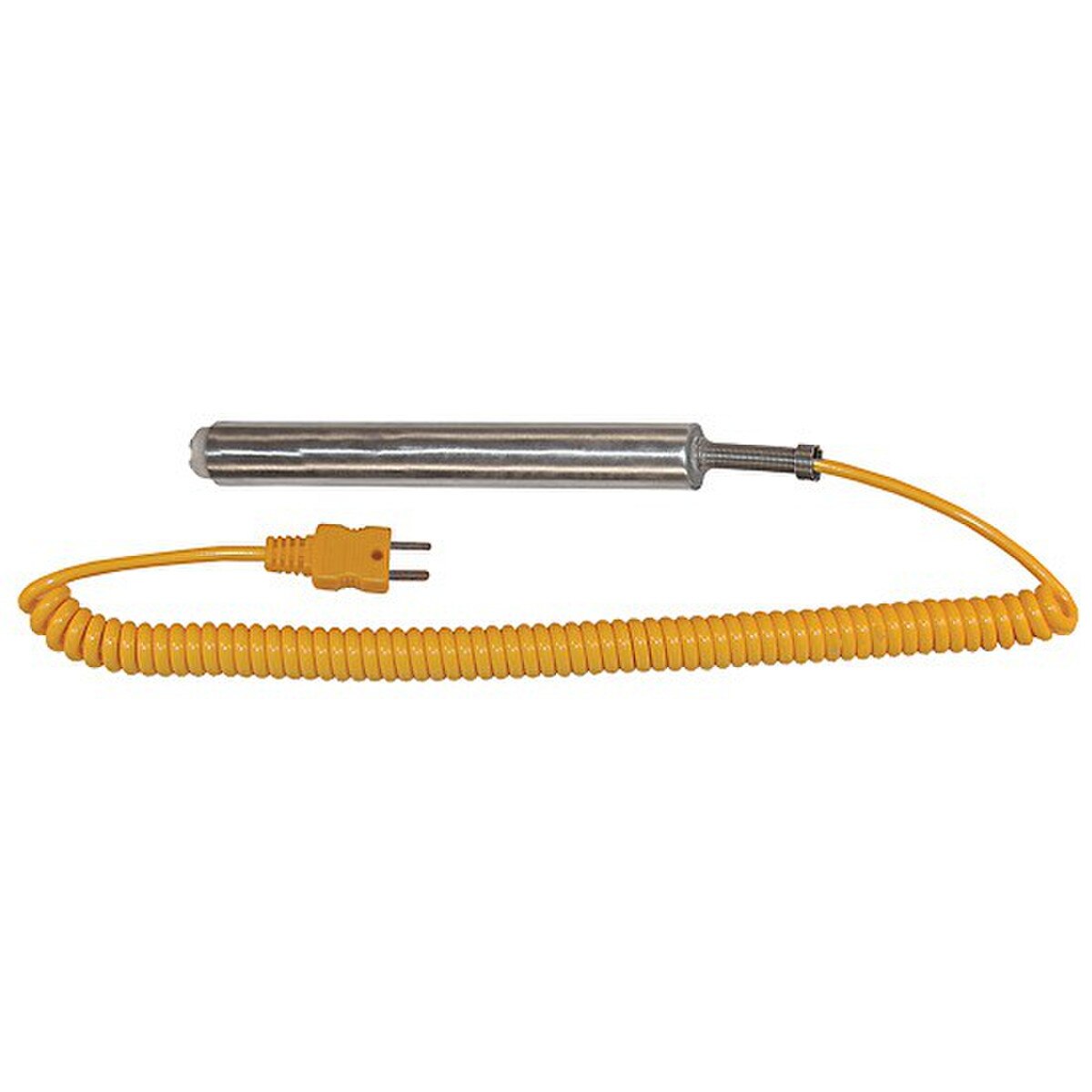

Digi-Sense Type-K, Compact Surface Probe, 4.5" L, Mini-Connector, Exposed, 5ft Coil

(0)No Reviews yet
$71.84 $82.10
QuantityPrice
1$71.84
4 +$69.79
SKU: CPI-08439-72
Item Number: CPI-08439-72
Model Number: 08439-72
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08439-72
Condition: New

New

Digi-Sense Type-K Thermocouple Probe, Surface, 4.75 inch L, Exposed Junction, 5 feet Cable, Mini ANSI Connector (each)

Use to monitor hot plates, furnaces, molds, or any other flat surface

  • Ideal for hard to reach places or lower temperature applications
  • Response Time: 1.25 seconds or greater
  • Each probe comes with color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: Surface
Material: Aluminum housing w/Ceramic, ABS Plastic
Temperature Range: -250 to 1200°F (-150 to 649°C)
Temperature Accuracy: ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 4.75 inches
Cable Length: 5 feet
Overall Dimensions: Sheath: 4.5 inch length
Notes: Exposed Junction
