CPI-08515-01
Images are for representation only. Actual product may differ in size, color or options.

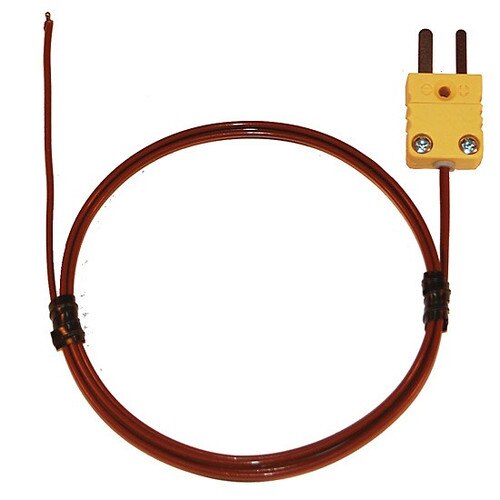

Digi-Sense Type-K Thermocouple Probe, Flexible Wire, 3 inch L x 0.020 inch Dia., Exposed Junction, 24 Gauge, 3 feet Cable, Mini ANSI Connector (each)
Economical PVC-Insulated probes are ideal for quick readings
Economical PVC-Insulated probes are ideal for quick readings
- Response Time: 0.5 seconds or greater
- Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-K |
| Grade: | Flexible Wire |
| Material: | PVC Insulated Wire |
| Temperature Range: | -250 to 221°F (-150 to 105°C) |
| Temperature Accuracy: | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 3 inches x 0.020 inch diameter |
| Cable Length: | 3 feet |
| Unit Size: | 24 Ga |
| Overall Dimensions: | Sheath: 3 inch length x 0.020 inch dia |
| Notes: | Exposed Junction |
