GVI-PRM025K
Images are for representation only. Actual product may differ in size, color or options.

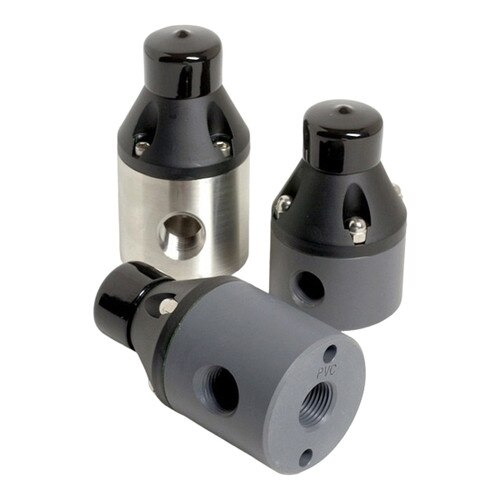

Griffco M-Series Pressure Relief Valve (10 to 150 PSI, PVDF, 1/4" NPT)
Griffco M-Series low-flow pressure relief valves are pump system valves designed to protect chemical feed systems from over pressure damage caused by defective equipment or a blockage in the chemical feed line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.
| Product Type: | Pressure Relief Valve |
| Brand: | Griffco Valve |
| Range: | 10 to 150 PSI |
| Temperature Range: | 300°F (149°C) Maximum |
| Housing: | PVDF Body; Noryl Top |
| Max Pressure (PSI): | 150 |
| Diaphragm: | PTFE/EPDM |
| Connections: | 1/4" NPT |
