HBM-DW-86L578J

Haier Biomedical Ultra Low Temperature Freezer Key Design Features

• Microprocessor-controlled system designed for controllable range of -40 °C to -86 °C for cabinet space with 1 °C increment

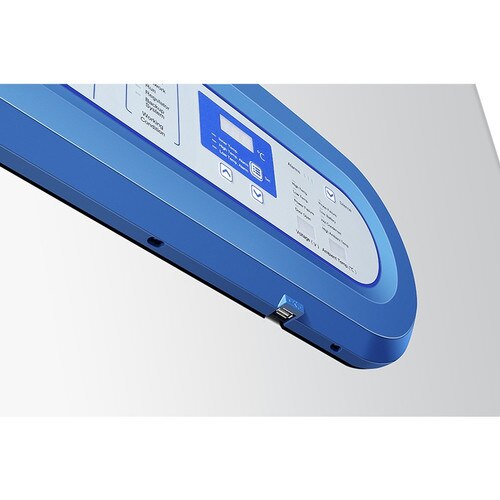

• Large LED display for cabinet temperature, set temperature, ambient temperature, and input voltage
• Settable high temperature and low temperature alarms
• Automatic clean-filter alarm and sensor error alert

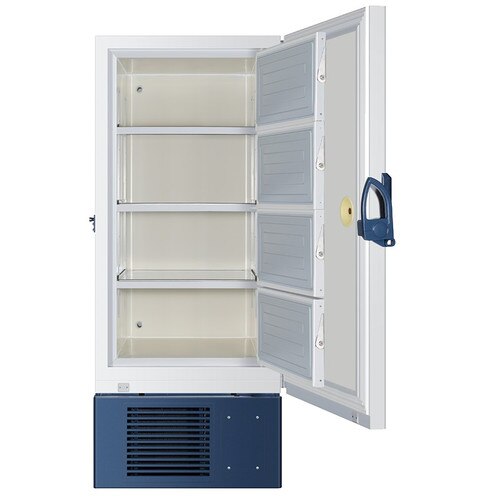

• Adjustable storage shelf height
• Can be connected with network, and remote alarm systems
• Optional temperature recorder, storage racks and storage boxes

Field Proven Reliability

• Refrigeration system designed and manufactured with best known practice, and components with highest possible quality
• Reliability test performed and passed on all models including aging test on control electronics at 85 °C and 85% humidity environment

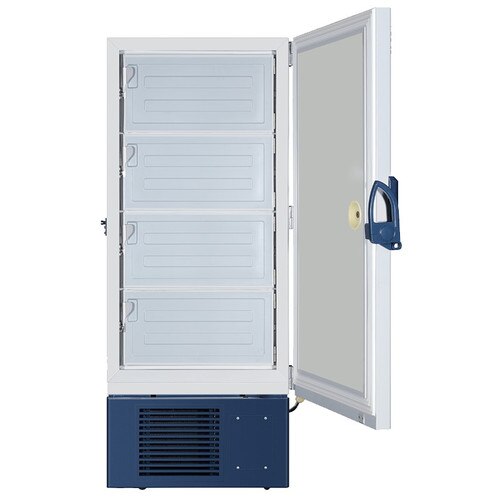

• Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber
• Specialized control system design for a well-balanced operation of cascade refrigeration system

Safety

• Equipped with a complete alarm system with optional remote network monitoring system UL, ENERGY STAR and CE certified for application safety
• Malfunction alarms including high and low temperature, power outage, sensor errors, high voltage and low voltage, clean-filter, and extremely high ambient, door ajar feature standard
• Capable of producing two types of alarm outputs: audible buzzer and visible flashing light
• Multiple built-in system protection features including user-settable protection code for controls, user settable delay to start, voltage compensation system, and protection against extreme high voltages USB port for temperature data downloading
• Safety padlock compatible on outer door

Installation and Application

• Wide range operating voltage system from 115V to 230V designed to allow units installed in areas with poor voltage condition
• Suitable for 10 °C to 32 °C
• Ambient temperature
• Input voltage and ambient temperature shown simultaneously for ease of monitoring environmental conditions
• Freezer design for global installations
• Robust door latch designed for secure door closing and compact casters for ease of maneuvering
• Low Sound Level
• Specialized refrigeration system design using whisper quiet fan and compressors
• Freezer chassis designed to absorb vibration and sound
• Energy Saving
• Unique door seal and breaker design for the minimum loss of cold temperature during a door opening
• High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability
• Patented cabinet insulation system designed for optimal performance of cold storage temperature and minimal frost buildup
• Condenser fan intelligently start-stop to reduce power consumption
• Unique design of independent insulated inner door systems for independent access of storage space to provide the maximum protection of stored samples and save energy
• Warranty Information: 3 years on all parts and 5 years on the compressor
