FTC-LAV-3/G-DKIT

(0)No Reviews yet
$1,082.43 $1,413.09
QuantityPrice
1 – 1$1,413.09
1 – 1$1,082.43
2 +$1,055.58
SKU: FTC-LAV-3/G-DKIT

New

High Vacuum Pump, 3CFM, 110V, 60Hz, with Experiment Accessories Kit

This kit comes with everything you need to start teaching high vacuum in the classroom. Demonstrate water boiling at room temperature as well as what happens to a balloon at a high vacuum plus much more!

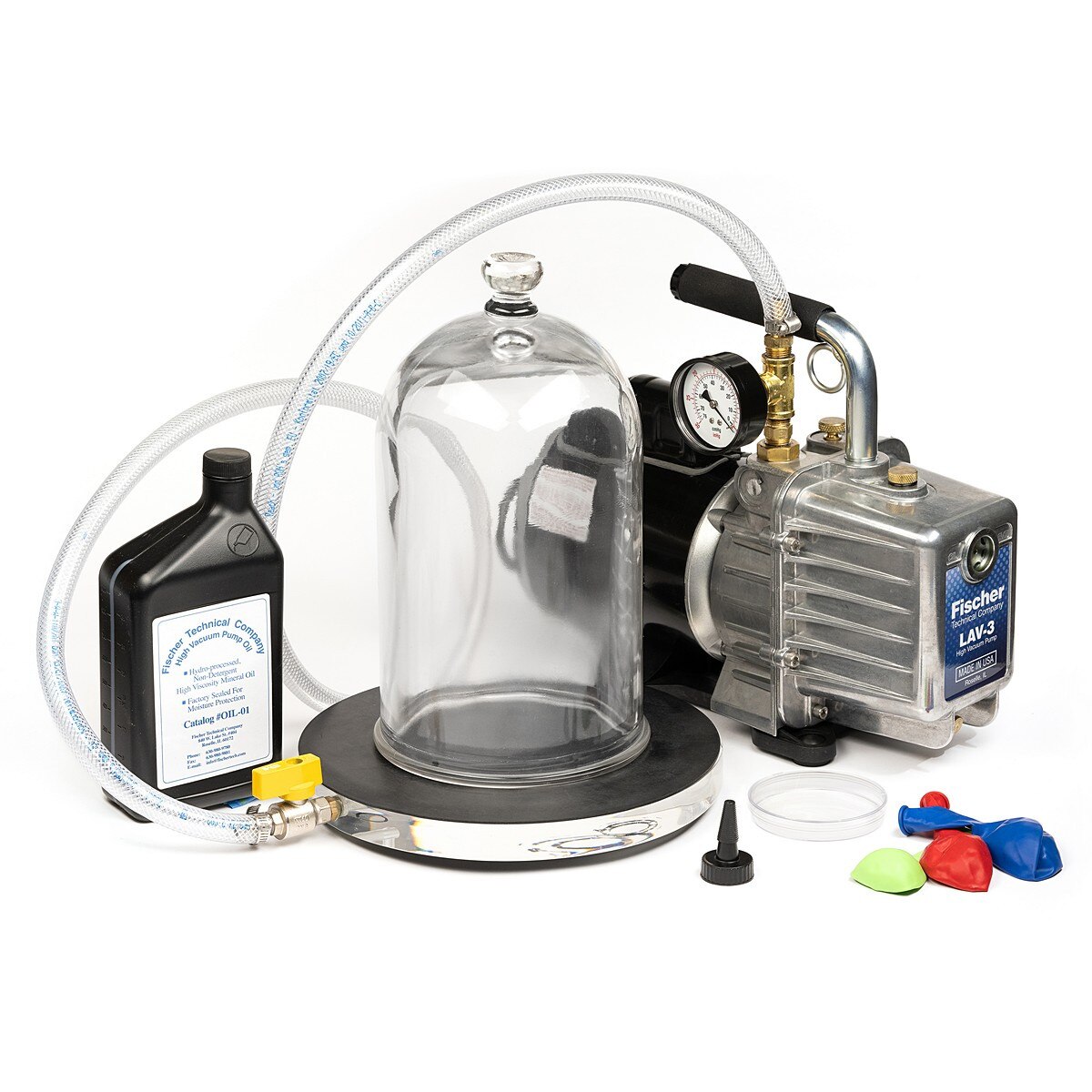

Vacuum Pump and Experiment Accessory Kit:
  • LAV-3/G High Vacuum Pump, 3CFM
  • 1 EA. acrylic pump plate
  • 1 EA. 6" x 11" glass bell jar
  • 5' HIGH VACUUM TUBING
  • 2 hose clamps
  • 1-quart high vacuum pump oil
  • 3 EA. balloons
  • 1 EA. petri dish
The LAV-3/G model 3 CFM (85 l/m) rotary style, 2 stage direct drive pumps are ideal for use in virtually all high vacuum applications. Pumps are tested to 15 microns Hg but are suitable for all applications requiring a vacuum under 500 microns Hg. The pumps use High Vacuum Pump Oil (one quart included) and are designed to run on a closed and dry system. Regular oil changes and proper maintenance will ensure these pumps will last for years in your laboratory.

This model includes an installed 0-30” Bourdon Tube Type Gauge.

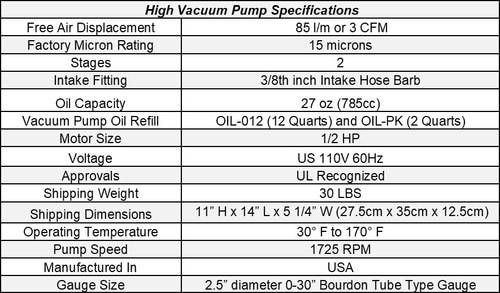

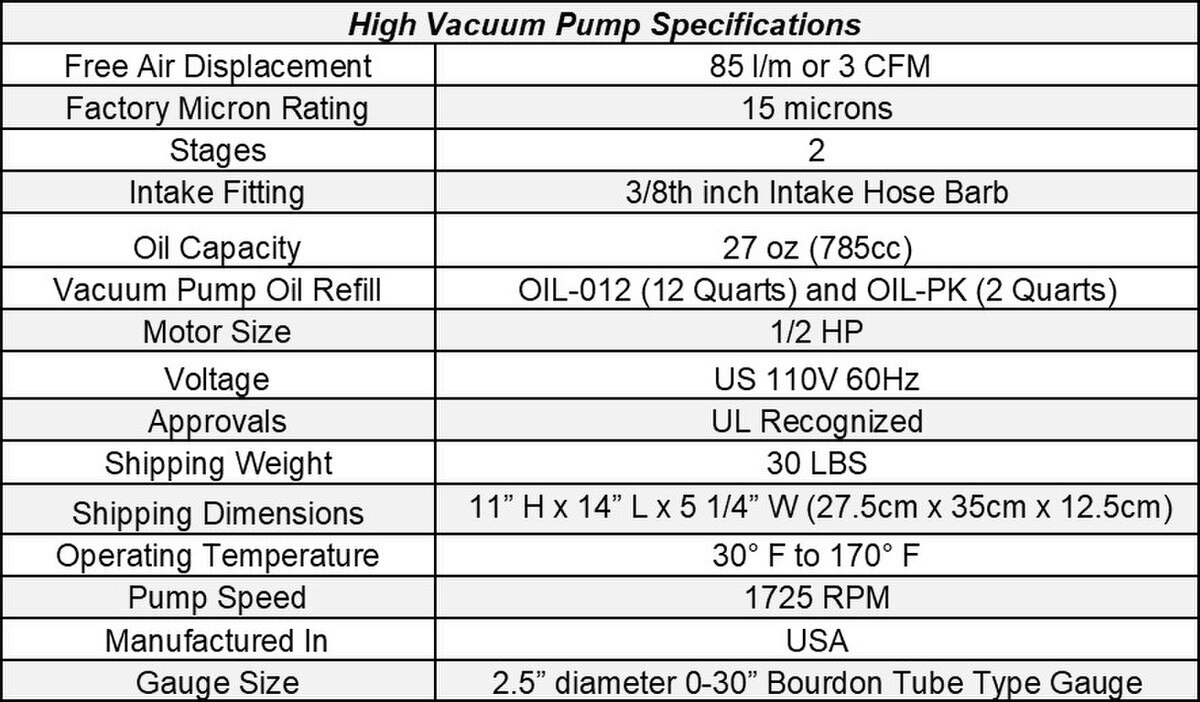

Product Type: High Vacuum Pumps
Brand: Fischer Technical
Capacity: 3 CFM
Motor: 1/2 HP, 1725 RPM capacitor start motor with thermal overload protection
Power Supply: 115 VAC 60 Hz, US Plug
Hose Barb Size: 3/8 inch
Overall Dimensions: 11"H x 14"L x 5-1/4"W (27.5cm X 35cm X 12.cm)
Includes: 1 Quart Pump Oil
