FTC-LAV-10/G/220
Images are for representation only. Actual product may differ in size, color or options.

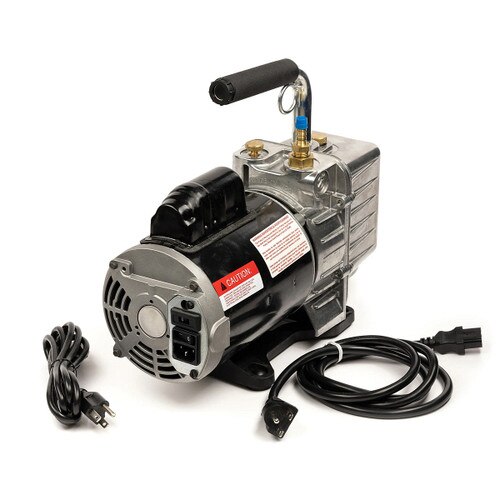

High Vacuum Pump, 10CFM, 110V/220V, 60Hz/50Hz with 0-30" Bourdon Tube Type Gauge
These 10 CFM (285 l/m) rotary style, 2 stage direct drive pumps are ideal for use in the laboratory in virtually all high vacuum applications. Pumps are tested to 15 microns Hg but are suitable for all applications requiring a vacuum under 500 microns Hg. The pumps use High Vacuum Pump Oil (one quart included) and are designed to run on a closed and dry system. Regular oil changes and proper maintenance will ensure these pumps will last for years in your laboratory.
These Dual Voltage/Dual Cycle vacuum pumps come with a motor that includes a switch between 110V, 60Hz, and 220V, 50Hz. They also include both cords and plug for the US 110V and US 220V outlets.

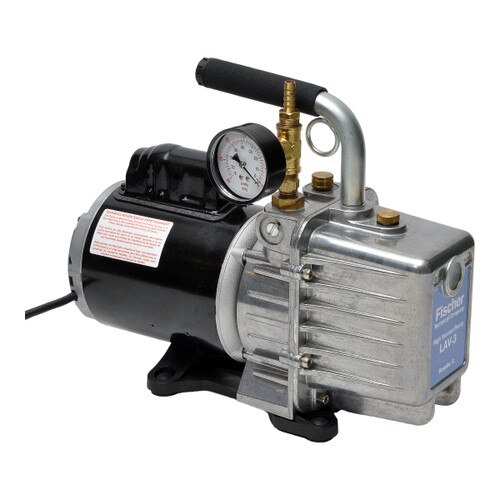

This model includes an installed 0-30” Bourdon Tube Type Gauge.
These 10 CFM (285 l/m) rotary style, 2 stage direct drive pumps are ideal for use in the laboratory in virtually all high vacuum applications. Pumps are tested to 15 microns Hg but are suitable for all applications requiring a vacuum under 500 microns Hg. The pumps use High Vacuum Pump Oil (one quart included) and are designed to run on a closed and dry system. Regular oil changes and proper maintenance will ensure these pumps will last for years in your laboratory.
These Dual Voltage/Dual Cycle vacuum pumps come with a motor that includes a switch between 110V, 60Hz, and 220V, 50Hz. They also include both cords and plug for the US 110V and US 220V outlets.
This model includes an installed 0-30” Bourdon Tube Type Gauge.

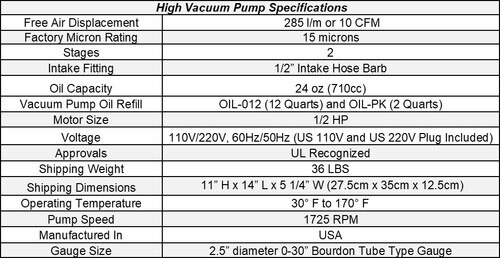

| Product Type: | High Vacuum Pumps |
| Brand: | Fischer Technical |
| Capacity: | 10 CFM |
| Motor: | 1/2 HP, 1725 RPM capacitor start motor with thermal overload protection |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Hose Barb Size: | 1/2 inch |
| Overall Dimensions: | 11"H x 14"L x 5-1/4"W (27.5cm X 35cm X 12.cm) |
| Includes: | 1 Quart Pump Oil |
