KOF-1/2-32

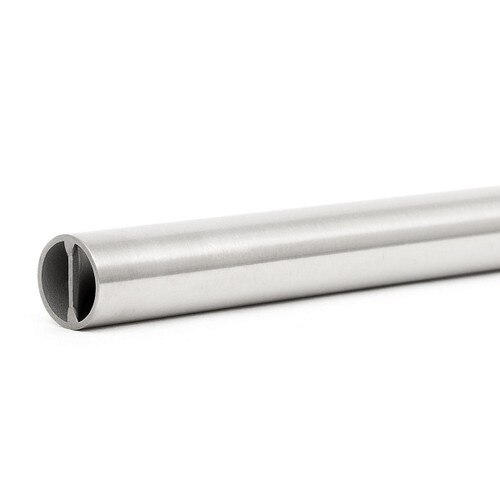

0.500" O.D. Stratos Static Tube Mixer 32 elements, 24-3/4" long, 316L Stainless Steel
The Koflo Stratos Static Tube Mixer consists of a series of fixed alternating right and left hand helical mixing elements designed for mixing light viscosity to high viscosity components. Both the elements and housing are constructed of 316L SS for superior performance. Mixing elements are fixed by either 316L stainless steel TIG welds (1/4", 3/8", 1/2" tube mixers) or a silver braze (3/16" tube mixer only).

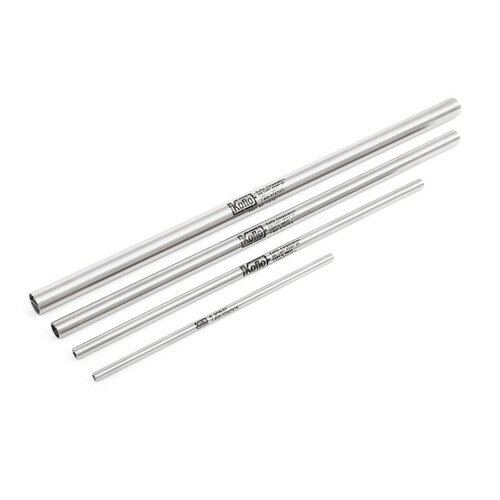

316 SS tube Inline mixers come in a variety of sizes and lengths, depending on viscosity and whether the blended products are of similar or dissimilar physical characteristics.
Typical Applications
- Laboratory scale mixing.
- Pilot plants.
- Epoxy blending.
- Gas blending.
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above.
Features
Housing: 316/316L Stainless Steel.
Elements: 316/316L Stainless Steel.
End Connections: Plain (for use with compression fittings, not supplied).
- Small-scale design allows for homogeneous blending in lab-scale applications.
- Helical design elements optimal performance with viscous, laminar flows such as epoxy resins.
| Stratos™ Part No. | Tube O.D. | Tube I.D. | Length | Weight | Max. Working Pressure (PSI @ 75°F) | Number of Elements |
|---|---|---|---|---|---|---|
| 3/16-17 | .187 | .132 | 4-7/8" | .02 lb | 5000 | 17 |
| 3/16-21 | .187 | .132 | 6" | .03 lb | 5000 | 21 |
| 3/16-27 | .187 | .132 | 7-1/2" | .03 lb | 5000 | 27 |
| 1/4-21 | .250 | .194 | 7" | .05 lb | 4200 | 21 |
| 1/4-27 | .250 | .194 | 9-1/4" | .06 lb | 4200 | 27 |
| 1/4-34 | .250 | .194 | 11-1/2" | .07 lb | 4200 | 34 |
| 3/8-21 | .375 | .319 | 11" | .12 lb | 2800 | 21 |
| 3/8-27 | .375 | .319 | 14" | .15 lb | 2800 | 27 |
| 3/8-32 | .375 | .319 | 17" | .18 lb | 2800 | 32 |
| 1/2-15 | .500 | .430 | 11-7/8" | .21 lb | 2100 | 15 |
| 1/2-21 | .500 | .430 | 16-3/8" | .29 lb | 2100 | 21 |
| 1/2-32 | .500 | .430 | 24-3/4" | .44 lb | 2100 | 32 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | 316L Stainless Steel |
| Length: | 24-3/4" |
| Inner Diameter: | 0.430" |
| Outer Diameter: | 0.500" |
| Net Weight: | 0.44 lb |
