0.500" O.D. Stratos Static Tube Mixer 21 elements, 16-3/8" long, 316L Stainless Steel

(0)No Reviews yet
$227.75 $241.00
QuantityPrice
1$227.75
2 +$227.02
SKU: KOF-1/2-21
Item Number: KOF-1/2-21
Model Number: 1/2-21
Manufacturer: Koflo Corporation
Brand: Koflo
MPN: 1/2-21
Condition: New

New

0.500" O.D. Stratos Static Tube Mixer 21 elements, 16-3/8" long, 316L Stainless Steel

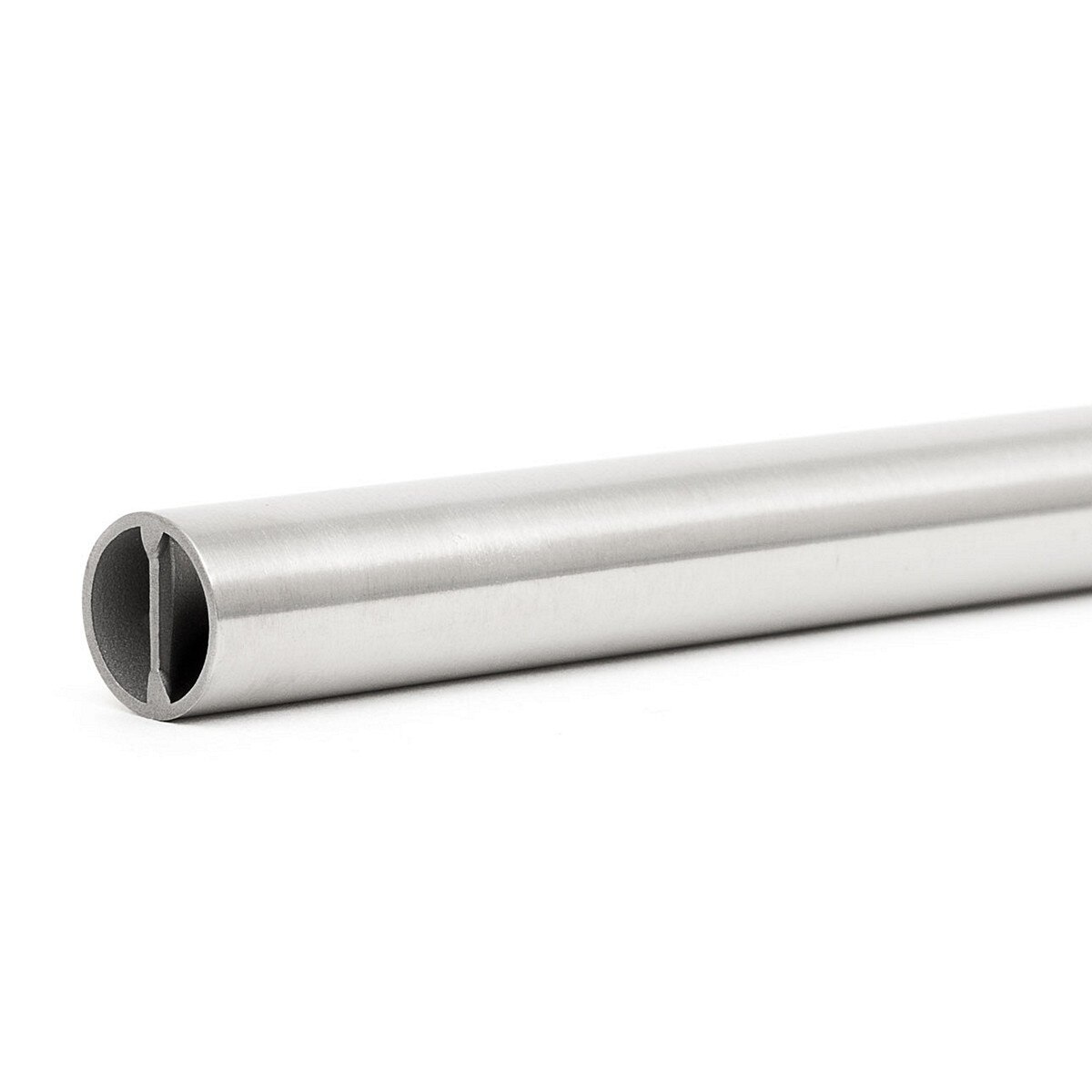

The Koflo Stratos Static Tube Mixer consists of a series of fixed alternating right and left hand helical mixing elements designed for mixing light viscosity to high viscosity components. Both the elements and housing are constructed of 316L SS for superior performance. Mixing elements are fixed by either 316L stainless steel TIG welds (1/4", 3/8", 1/2" tube mixers) or a silver braze (3/16" tube mixer only).

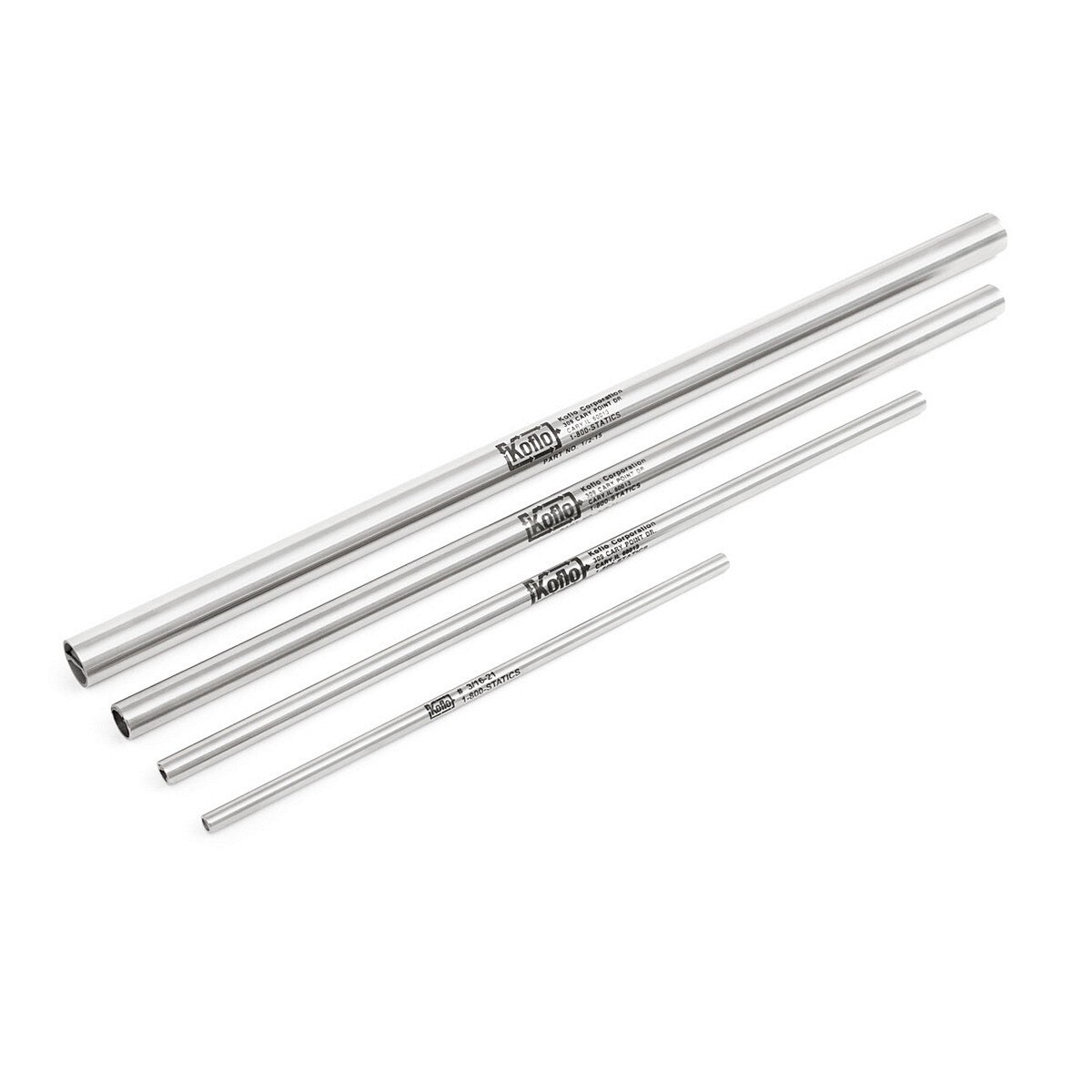

316 SS tube Inline mixers come in a variety of sizes and lengths, depending on viscosity and whether the blended products are of similar or dissimilar physical characteristics.


Typical Applications

  • Laboratory scale mixing.
  • Pilot plants.
  • Epoxy blending.
  • Gas blending.

Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above.


Features

Housing: 316/316L Stainless Steel.
Elements: 316/316L Stainless Steel.
End Connections: Plain (for use with compression fittings, not supplied).


  • Small-scale design allows for homogeneous blending in lab-scale applications.
  • Helical design elements optimal performance with viscous, laminar flows such as epoxy resins.

Specifications

  • Tube O.D.: 0.500"
  • Tube I.D.: 0.430"
  • Length: 16-3/8"
  • Weight: 0.29 lb
  • Max. Pressure: 2100 psi @ 75°F
  • Elements: 21
Product Type: Static Mixer
Brand: Koflo
Material: 316L Stainless Steel
Length: 16-3/8"
Housing: 316/316L Stainless Steel Tube
Connections: Plain ends for compression fittings (not supplied)
Inner Diameter: 0.430"
Outer Diameter: 0.500"
Net Weight: 0.29 lb
PDF IconKoflo Stratos Static Tube Mixers Datasheet.pdf
PDF IconKoflo Inline Static Mixers Brochure.pdf
PDF IconKoflo Stratos Static Tube Mixers Drawing.pdf
