Short Path Distillation Kit
Images are for representation only. Actual product may differ in size, color or options.
Short Path Distillation Kit

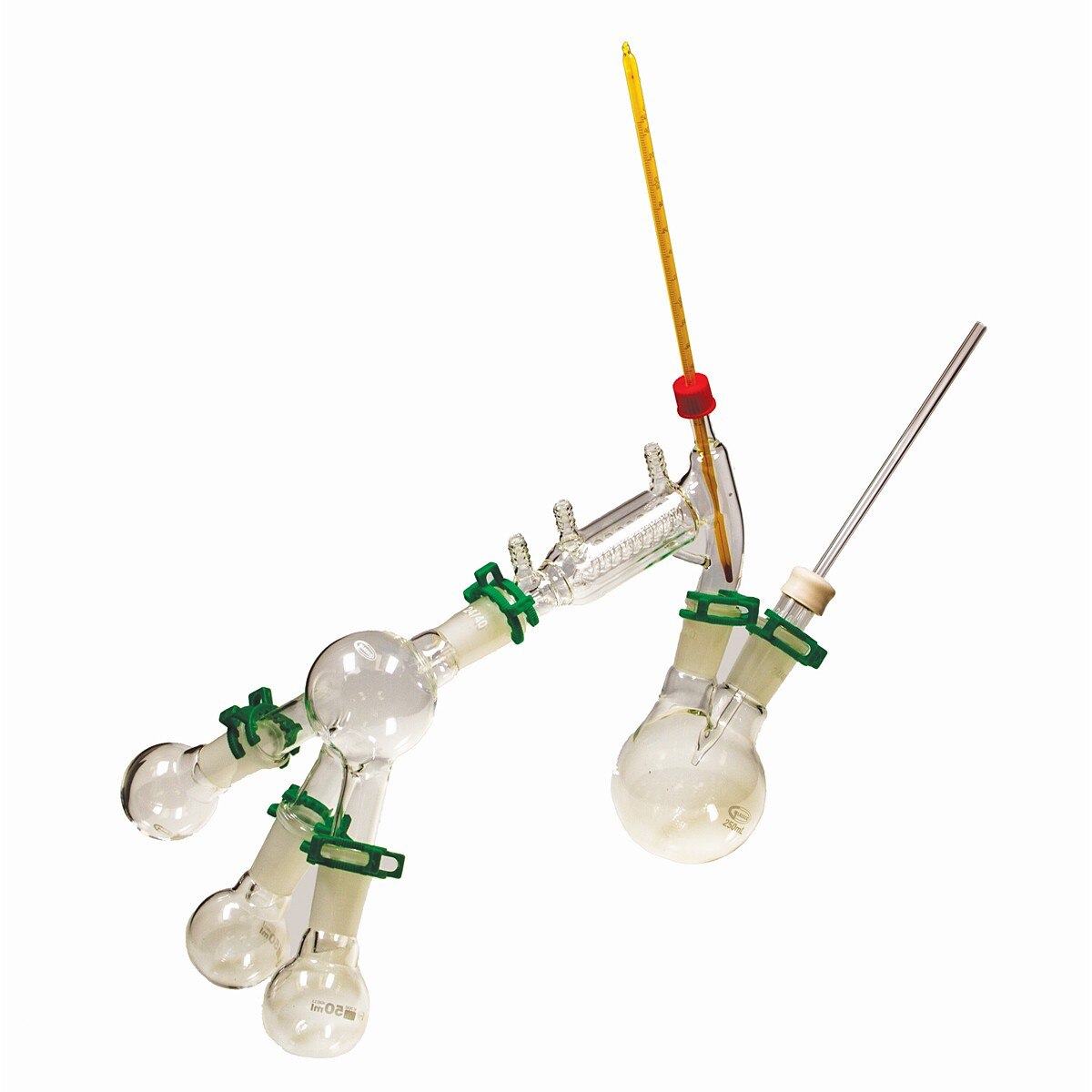

This kit contains essential components for short path distillation. All glass parts are manufactured from high-quality 3.3 borosilicate glass.
Short Path Distillation Head with 24/40 flask joints and 10/30 thermometer port features a condenser coil and three 1/4" hose nozzles, two for condenser and one for vacuum.
The cow-type Distillation Receiver has one 24/40 outer joint and three 24/40 inner joints that can be used to attach up to three 50ml Single Neck round bottom flasks.
The 250ml round bottom 2-Neck flask includes 24/40 outer joints to accept the Distillation Head and the Rubber Inlet Adapter holds the tapered Glass Inlet Tube.
The Thermometer, with a range of -10 degrees to 50 degrees Celcius and filled with a petroleum-based solution with red dye, connects to the Distillation Head through the 10/30 port.
Penny Head Glass Stoppers are included to cap the 50ml Single Neck round bottom flasks after distillate is collected.
This kit contains essential components for short path distillation. All glass parts are manufactured from high-quality 3.3 borosilicate glass.
Short Path Distillation Head with 24/40 flask joints and 10/30 thermometer port features a condenser coil and three 1/4" hose nozzles, two for condenser and one for vacuum.
The cow-type Distillation Receiver has one 24/40 outer joint and three 24/40 inner joints that can be used to attach up to three 50ml Single Neck round bottom flasks.
The 250ml round bottom 2-Neck flask includes 24/40 outer joints to accept the Distillation Head and the Rubber Inlet Adapter holds the tapered Glass Inlet Tube.
The Thermometer, with a range of -10 degrees to 50 degrees Celcius and filled with a petroleum-based solution with red dye, connects to the Distillation Head through the 10/30 port.
Penny Head Glass Stoppers are included to cap the 50ml Single Neck round bottom flasks after distillate is collected.

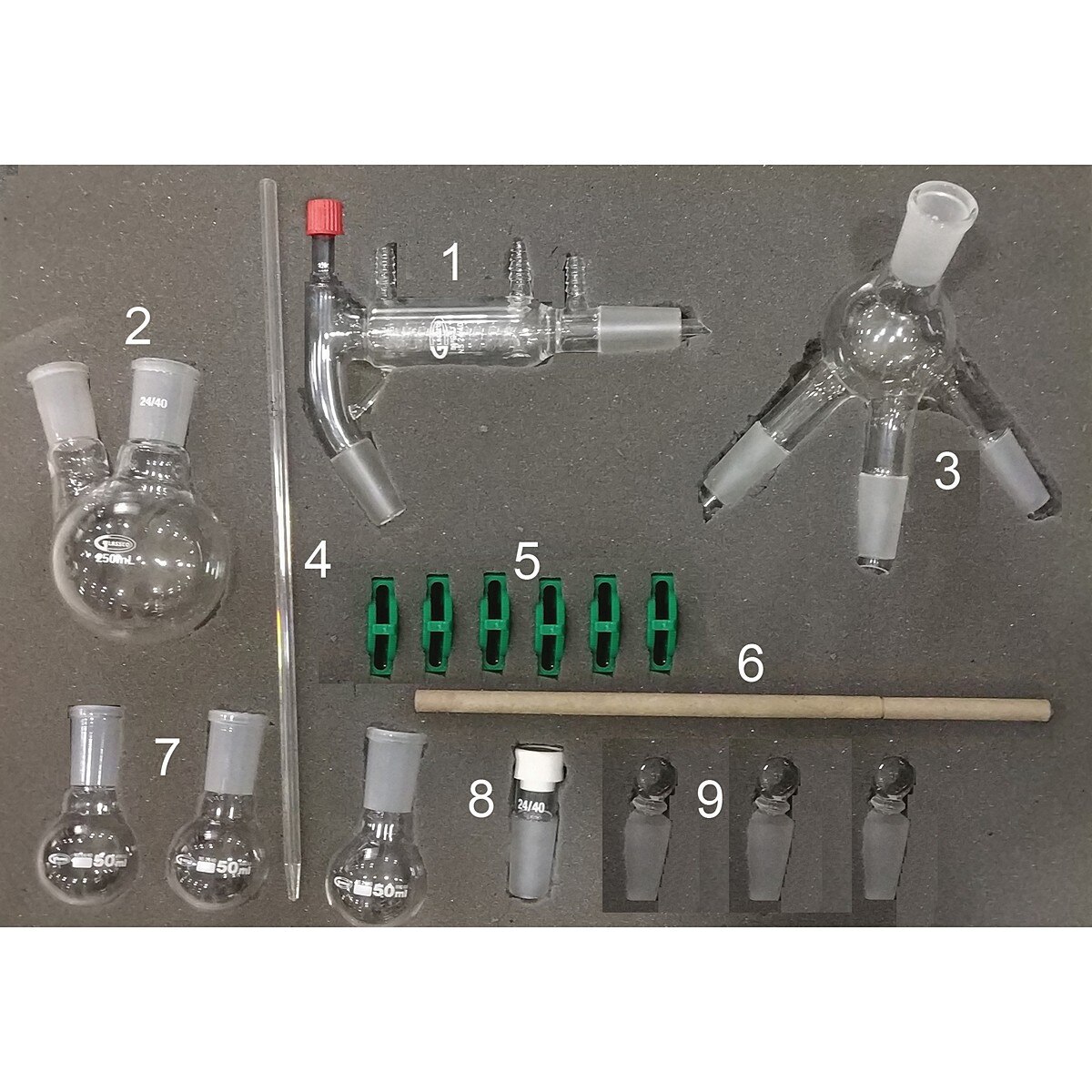

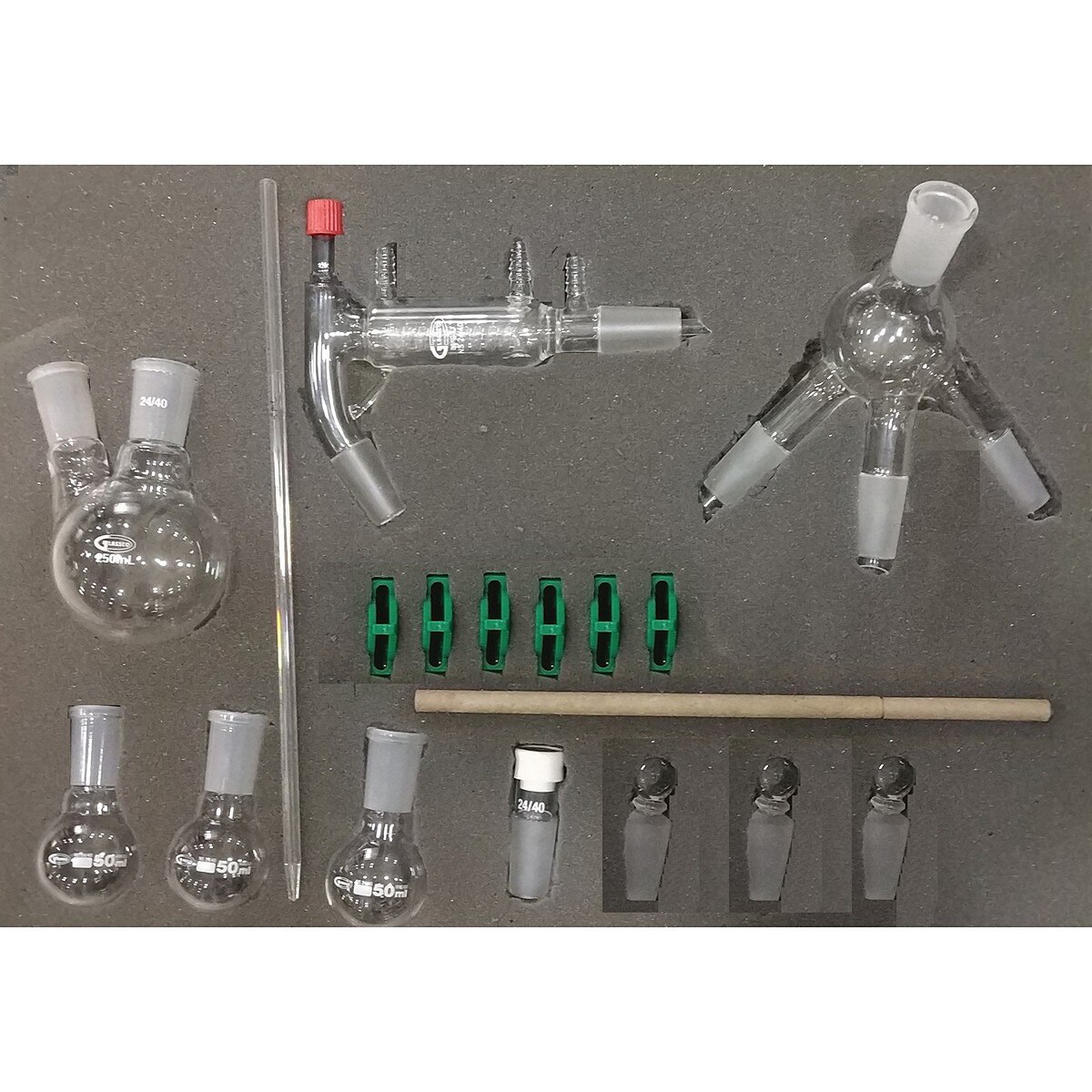

- 1 x Short Path Distillation Head, Vacuum Jacketed, 24/40
- 1 x Flask, Round Bottom, 2-Neck 250ml
- 1 x Distillation Receiver, Cow-Type, 1-3, 24/40
- 1 x Glass Inlet Tube, with Tapered End, 11 inch
- 6 x Clamp for Jointed Glassware, Plastic, size 24
- 1 x Thermometer, Red Spirit, -10 to 50°C, 12 inch
- 3 x Flask, Round Bottom, Single Neck, 50ml, 24/40
- 1 x Inlet Adapter, Rubber, with Glass Connector, 24/40
- 1 x Stopper, Glass, Penny Head, 24/40
| Product Type: | Distillation Apparatus |
| Brand: | United Scientific |
| Material: | Glass |
| Includes: | 1 x Short Path Distillation Head, Vacuum Jacketed, 24/40; 1 x Flask, Round Bottom, 2-Neck 250ml;1 x Distillation Receiver, Cow-Type, 1-3, 24/40; 1 x Glass Inlet Tube, with Tapered End, 11 inch; 6 x Clamp for Jointed Glassware, Plastic, size 24; 1 x Thermometer, Red Spirit, -10 to 50°C, 12 inch; 3 x Flask, round Bottom, Single Neck, 50ml, 24/40; 1 x Inlet Adapter, Rubber, with Glass Connector, 24/40; 1 x Stopper, Glass, Penny Head, 24/40 |
