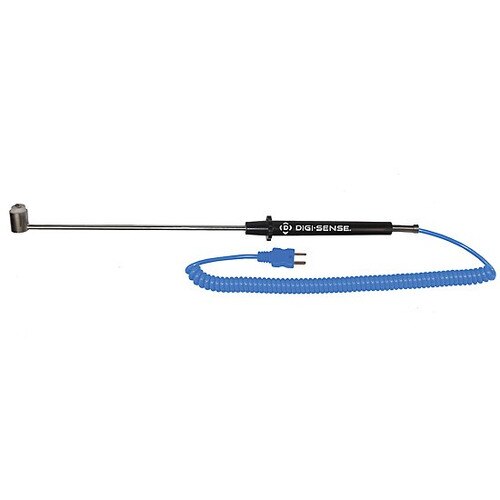

Digi-Sense Type-T, Comp 90 Angle Surf Probe, 8.5" L, Mini-Connector, Exposed, 5ft Coil
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Type-T Thermocouple Probe, Compact 90 Degree Angle Surface, 8.5 inch L x 0.63 inch Dia, Exposed Junction, 5 Feet Cable, Mini ANSI Connector (each)
Designed to measure the temperature at the surface without perpetrating the material
Designed to measure the temperature at the surface without perpetrating the material
- Response Time: 1.25 seconds or greater
- Ideal for monitoring flat surfaces such as hot plates, furnaces, or molds
- Each probe comes with a lower profile tip than other surface probes for hard to reach areas
- Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-T |
| Grade: | Compact 90 Degree Angle Surface |
| Material: | 316 Stainless Steel with Stainless Steel Housing, ABS Plastic |
| Temperature Range: | -328 to 500°F (-200 to 260°C) |
| Temperature Accuracy: | ±3.6°F (2.0°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 8.5 inches x 0.63 inch diameter |
| Cable Length: | 5 Feet |
| Overall Dimensions: | Sheath: 8.5 inch length x 0.63 dia; Handle: 5.5 inch length |
| Notes: | Exposed Junction |
