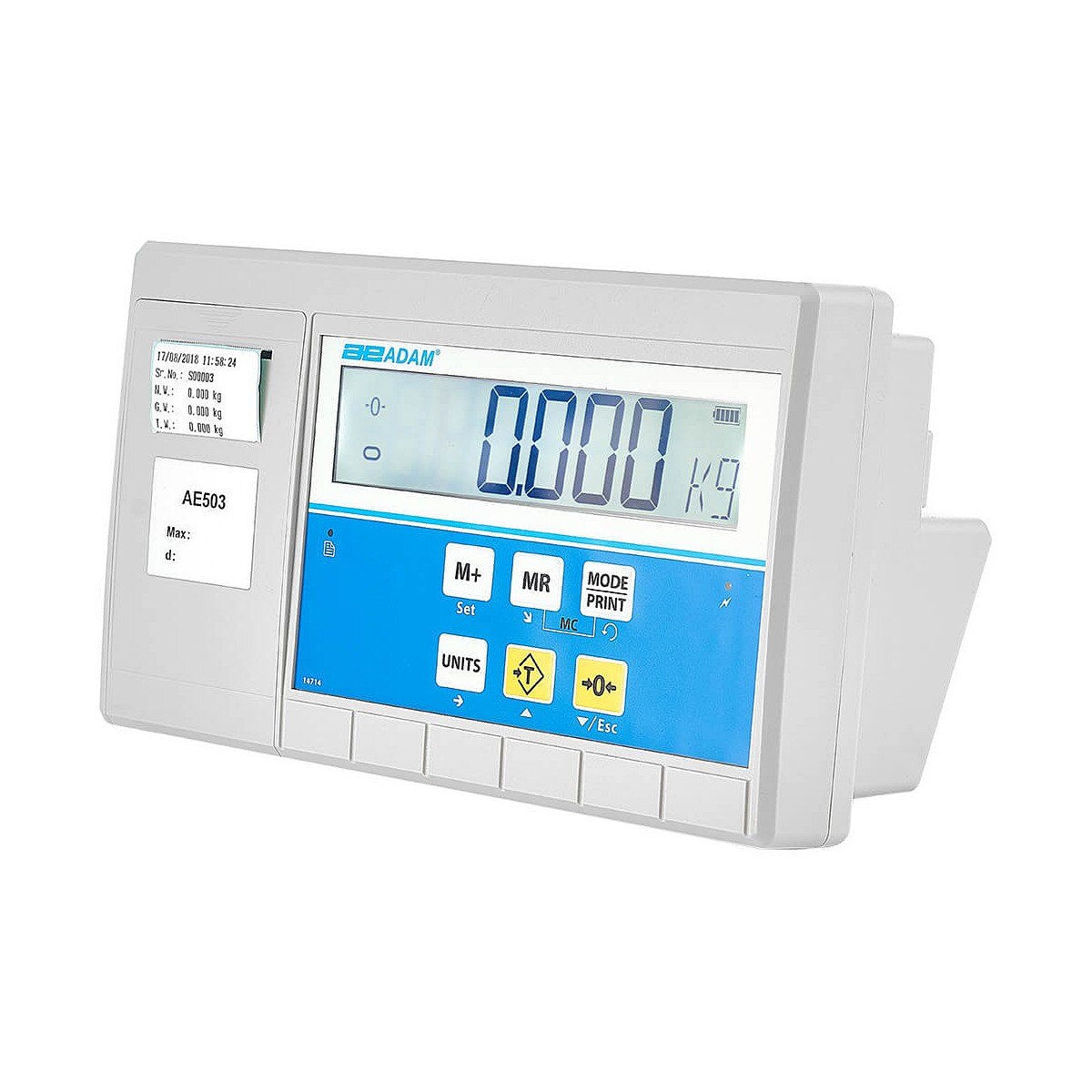

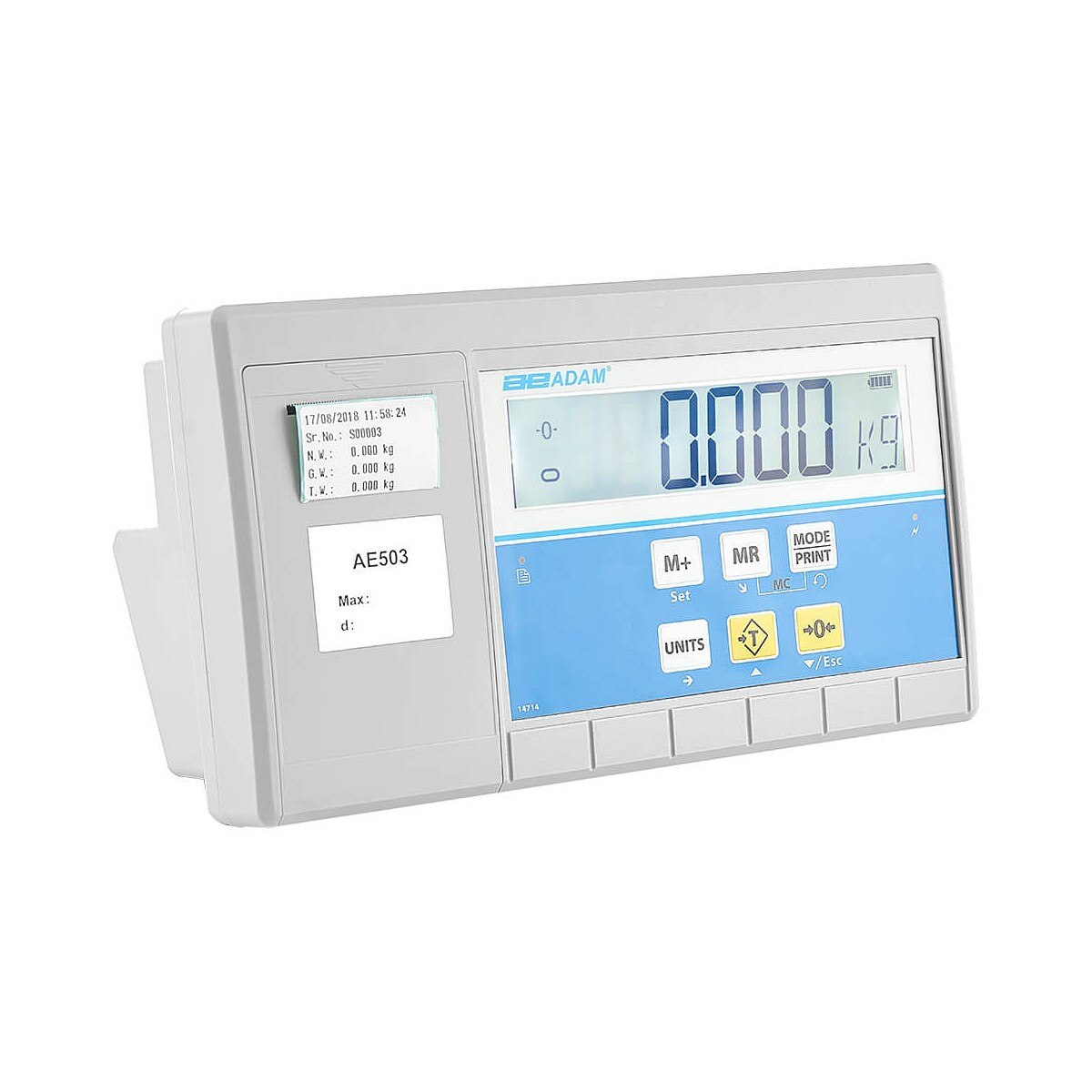

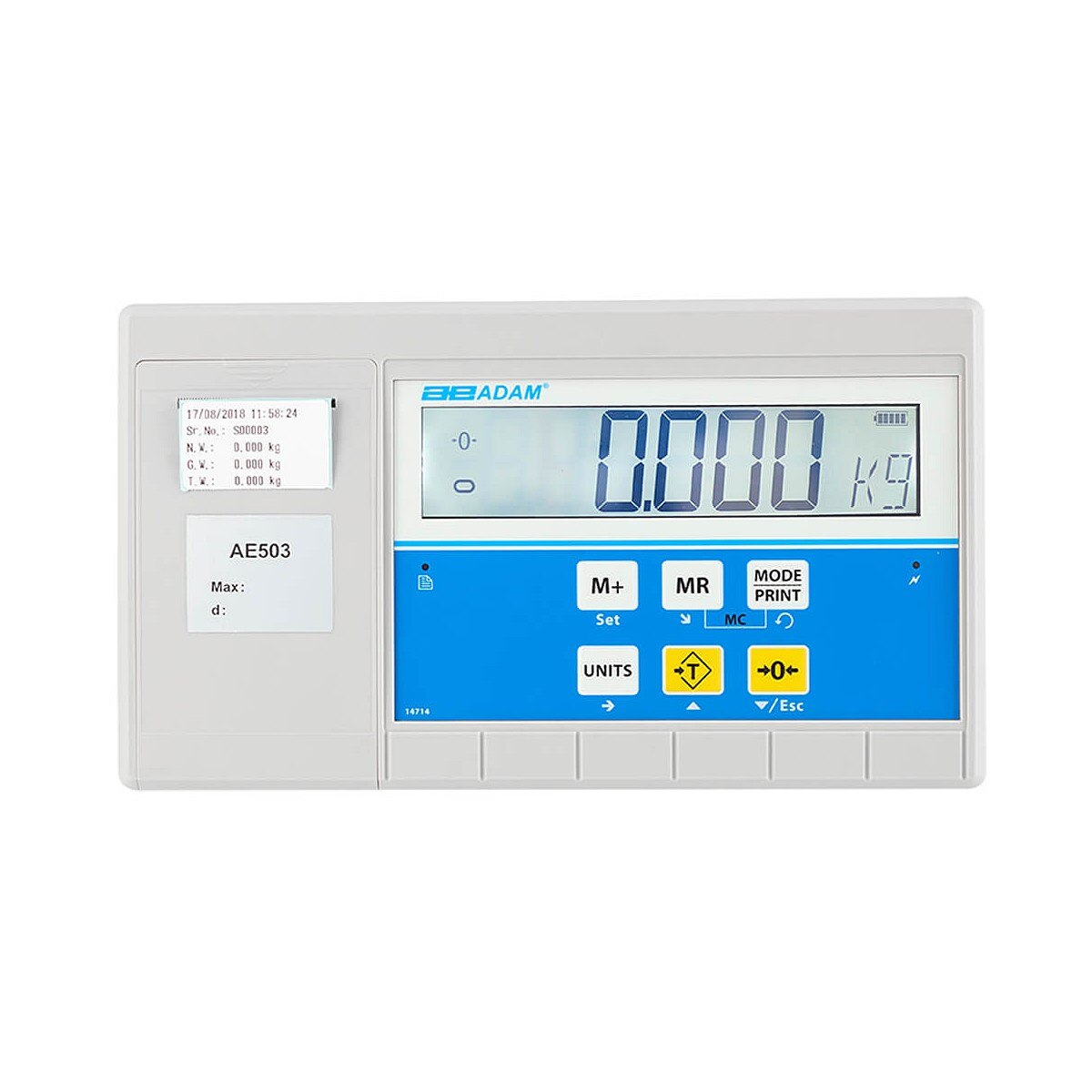

AE 503 Indicator (Cable to Scale Not Included)
AE 503 Indicator (Cable to Scale Not Included)
*** Indicator ONLY, please contact Nova-Tech International with your scale Model and Serial Number for the correct cable needed for your indicator ***
The AE 503 label printing indicator combines weighing applications and a printer in one easy-to-use device, providing an ideal solution for manufacturing, packing, and distribution needs.
Strong ABS construction and an integrated label printer enhance the functionality of the AE 503 label printing indicator, making it an ideal option for weighing, parts counting, percentage weighing, dynamic weighing, check counting, checkweighing, and averaging. A large, easy-to-read backlit LCD screen features 1.3-inch/34mm-tall digits and symbols to show over, under, or within limits during checkweighing. A sealed, color-coded keypad allows quick and easy configuration. Using the built-in printer, add barcodes, QR codes, pictures, and custom logos to the 50mm-wide printed labels.
- Vivid, backlit LCD easily visible in any lighting conditions.
- Programmable backlight can be set to "always on," "always off" or “light only when weighing”.
- Color-coded keys facilitate quick recognition of the most frequently used buttons.
- RS-232 interface provides a speedy connection to computers and printers.
- Rugged construction stands up to industrial use.
- Built-in printer can print weight, QR codes, bar codes, and customized labels in numerous languages.
- Rechargeable battery included for operation almost anywhere.
- Programmable auto power-off to save energy.
- Zero-tracking feature ensures the display returns to zero reading.
- Parts counting optimization automatically refines piece weight as parts are added.
- Checkweighing with audible alarm.
- External calibration allows for verification and adjustment with weights.
- Quick and easy configuration using the keypad.
- User-selectable scale division.
- A 3-year warranty means quality assured for years of use.
Applications:
- Weighing.
- Parts Counting.
- Percentage Weighing.
- Checkweighing.
- Check Counting.
- Dynamic / Animal Weighing.
- Accumulation.
- Display Hold.
- Averaging.
- Barcode / Label Printing.
- Peak Hold.
| Product Type: | Indicator |
| Brand: | Adam Equipment |
| Product Line: | AE Indicator |
| Housing: | ABS plastic |
| Power Supply: | 12 VDC 3A adapter / Internal Rechargeable Battery |
| Display: | Backlit LCD with 1.3" / 34mm high digits |
| Interface: | RS-232 |
| Calibration: | External calibration |
| Units of Measure: | ct, dr, g, kg, lb, mm, oz, T, tonne |
| Warranty: | 3 years |
| Net Weight: | 6.2lb / 2.8kg |
| Overall Dimensions: | 11.8 x 4.9 x 6.7in / 300 x 125 x 170mm |
| Notes: | Capacity: Selectable, Readability: Selectable |
| Working Environment: | 0° to 40°C / 32° to 104°F |
| Certifications: | NSF/ANSI 169 |
| Applications: | Accumulation Animal Weighing Averaging Barcode/Label Printing Check Counting Checkweighing Display Hold Dynamic Weighing Parts Counting Peak Hold Percent Weighing Weighing |
