PTM Series 1100lb / 500kg Drum / Wheelchair Platform Scale

(0)No Reviews yet
$996.00 $1,245.00
SKU: ADM-700000207
Item Number: ADM-700000207
Model Number: PTM 500
UPC: 819309015130
Manufacturer: Adam Equipment
Brand: Adam Equipment
MPN: 700000207
Condition: New

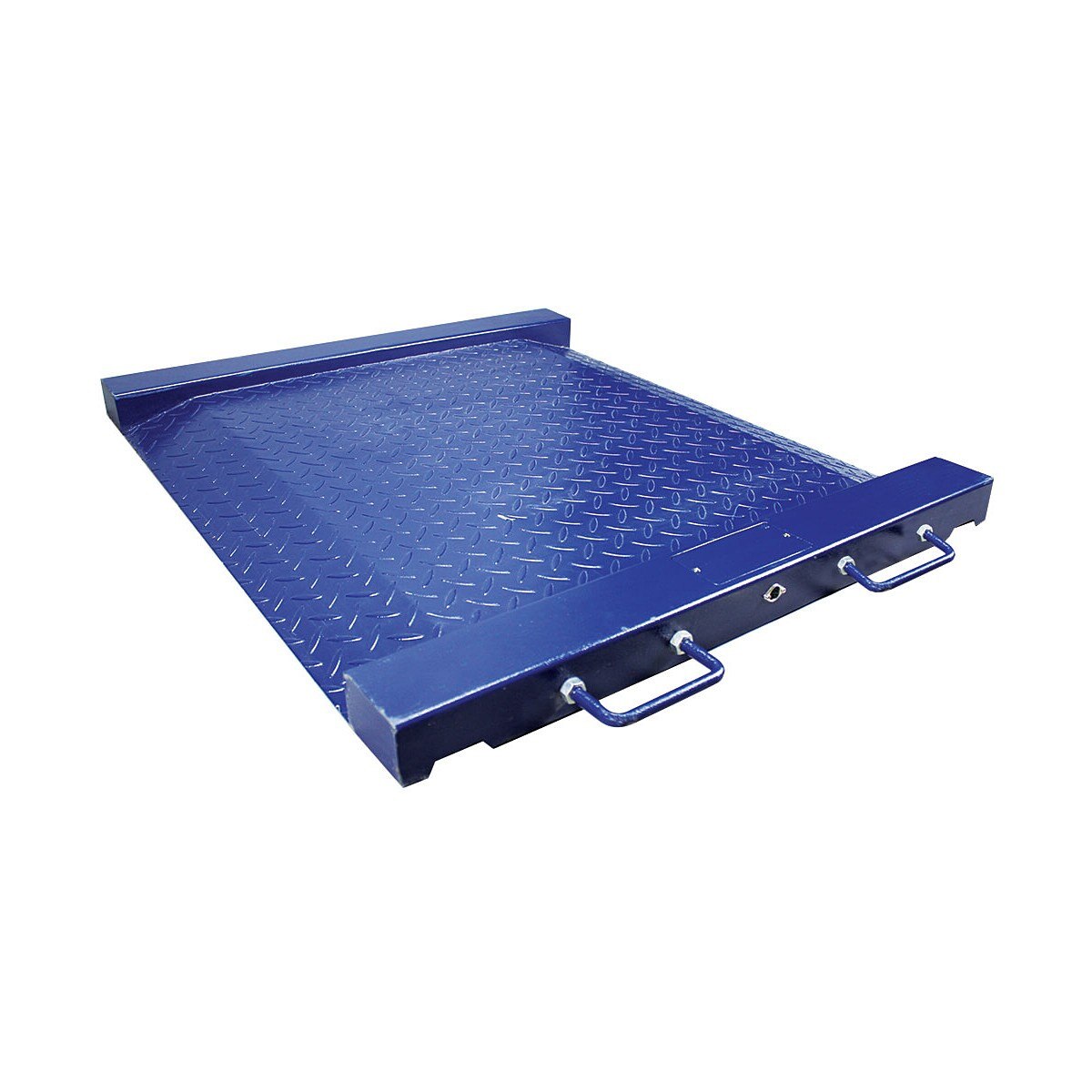

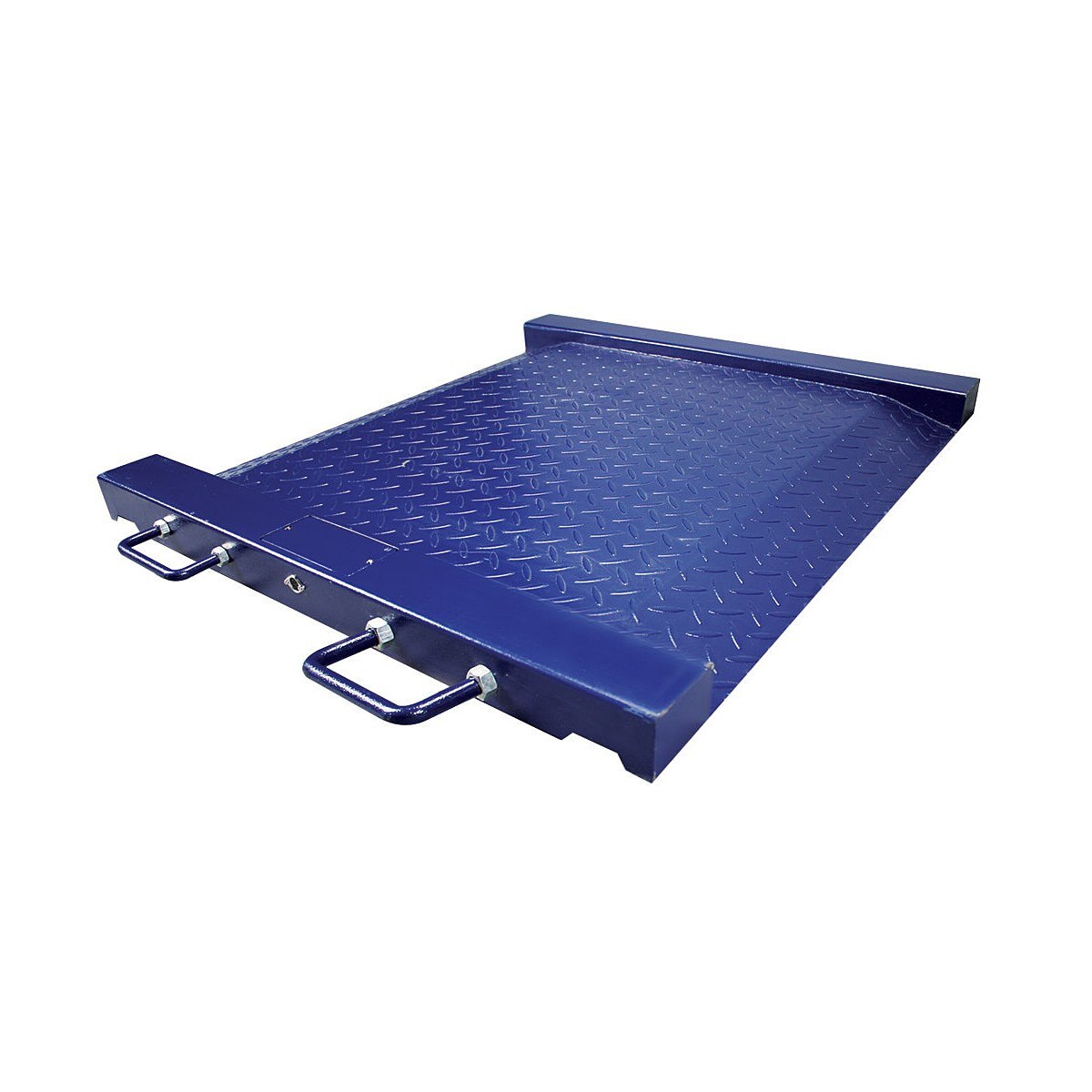

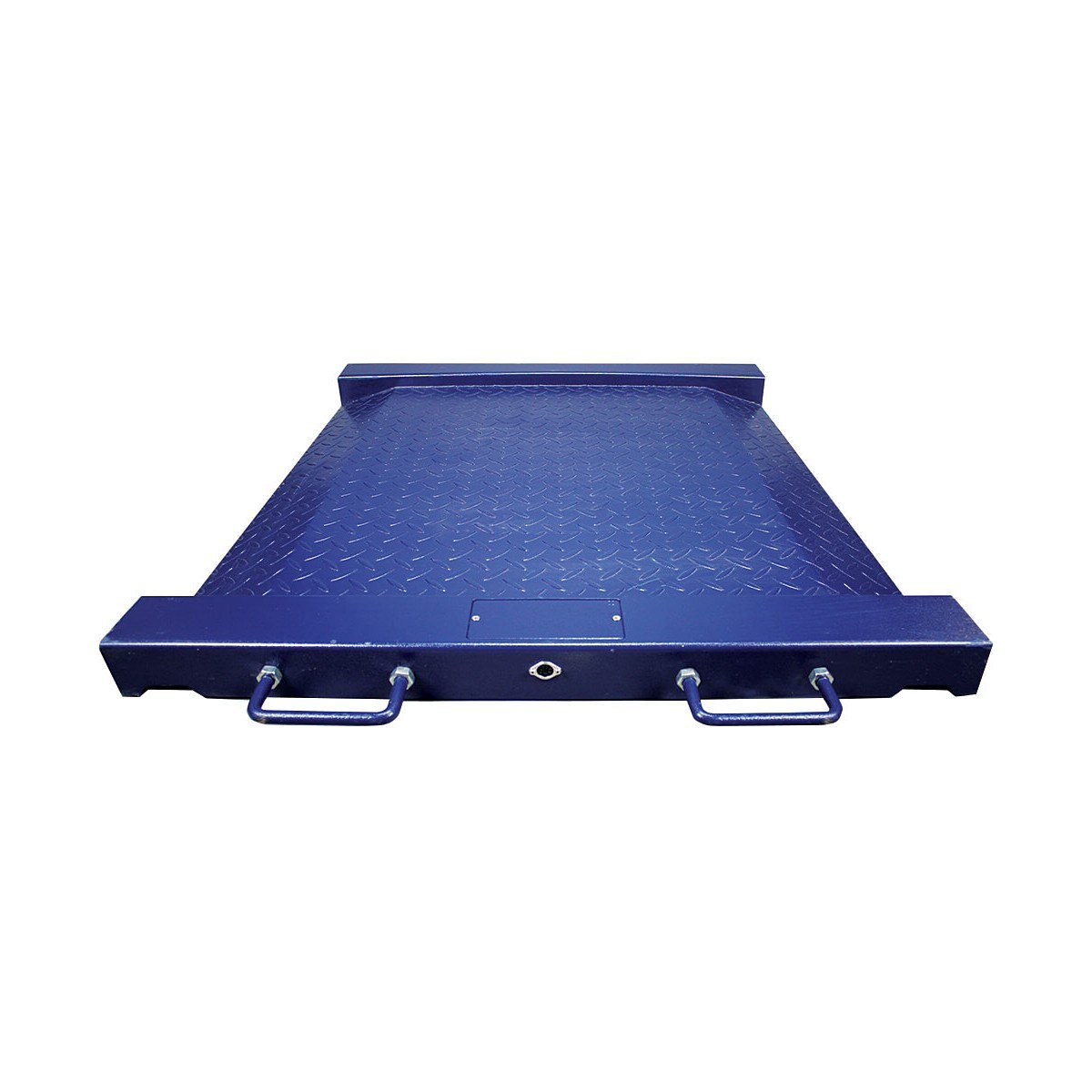

PTM Series 1100lb / 500kg Drum / Wheelchair Platform Scale

The PTM low profile platform is ideal for drums and wheelchairs. The easy access ramps on both sides offers smooth transitions from the floor to the weighing platform and the diamond checked platform offers a durable weighing area.

  • Adjustable feet
  • Non-slip adjustable leveling feet
  • Four load cell construction
  • Checked plate for added grip
  • Approximately 10 feet long shielded cable
  • Wheels to allow easy movement
  • Available with a choice of indicators
  • Built in ramps on each side for easy access
  • Weighing
  • Wheelchair Weighing
  • Weighing Drums

Product Type: Platform Scale
Brand: Adam Equipment
Product Line: PTM Series
Class: Drum / Wheelchair Platform
Capacity: 1100lb / 500kg
Readability: 0.2lb / 100g
Repeatability (S.D.): 0.4lb / 0.1kg
Linearity (±): 0.4lb / 0.2kg
Pan Size: 32.3 x 30.7 inches / 820 x 780 mm
Housing: Mild Steel
Interface: Bi-directional RS-232
Units of Measure: Pound (lb), Kilogram (kg)
Warranty: 1 year
Net Weight: 78.2 lb / 35.5 kg
Overall Dimensions: 40.2 x 31.6 x 3 inches / 1020 x 803 x 75 mm
Working Environment: -10° to 40°C / 14° to 104°F
Applications: Animal Weighing
Dynamic Weighing
Parts Counting
Percent Weighing
