ADM-PT 310-10 [AE403a]
Images are for representation only. Actual product may differ in size, color or options.

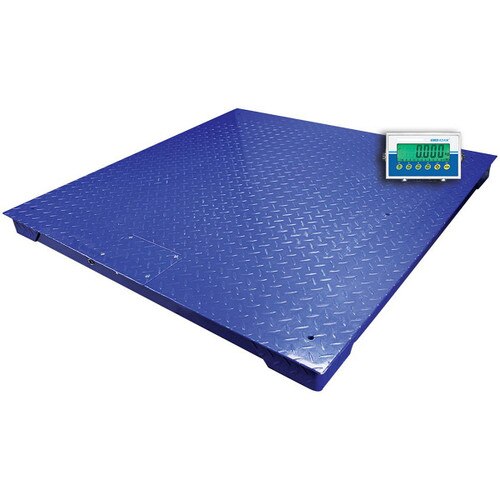

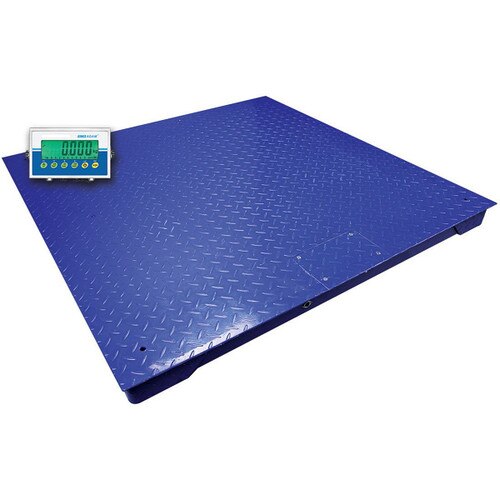

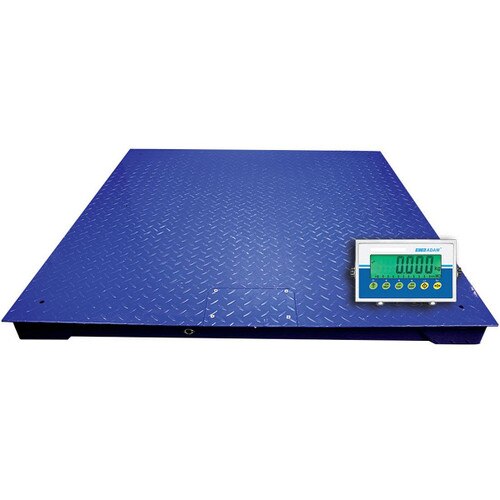

PT Platform Scale with AE 403 Indicator, 10000lb / 4500kg, 39.4 x 39.4 inches
PT industrial platform scales offer durability, quality construction, and ease of use for weighing oversized or heavy objects on warehouse floors.
The PT features a large, steel base with a 5mm chequer plate surface, adjustable leveling feet and cable. Optional ramps facilitate loading and unloading heavy objects.
Combined with our AE 403 indicator, this PT platform scale range includes check weighing, parts counting and percentage weighing which allows operators to perform a wide range of inventory control tasks in warehouse environments.
- Backlit display changes color for quick notification of check weighing limits.
- Programmable backlight can be set to "always on," "always off" or "light only when weighing".
- Rugged construction stands up to industrial use.
- Diamond-plate surface for added grip.
- Optional ramps facilitate loading and unloading.
- Can be used with any Adam indicators.
- Approximately five-meter/15-foot shielded cable.
- Color-coded keys facilitate quick recognition of the most frequently used buttons.
- Rechargeable battery included for operation almost anywhere.
- Battery level is clearly displayed to indicate when the scale needs to be recharged.
- Programmable auto power-off to save energy.
- External calibration allows for verification and adjustment with weights.
- Parts counting with preset sample sizes.
- Check weighing with an audible alarm.
- Selectable digital filtering helps minimize the effects of vibration and disturbances.
- Zero-tracking feature ensures the display returns to zero reading.
- Hold function freezes the displayed weight, allowing time to elapse without losing the result.
- A 3-year warranty means quality assured for years of use.
Product Type: | Platform Scale |
Brand: | Adam Equipment |
Product Line: | PT Series |
Class: | Platform |
Capacity: | 10000lb / 4500kg |
Readability: | 2lb / 1.0kg |
Repeatability (S.D.): | 4lb / 2000g |
Linearity (±): | 4lb / 2000g |
Pan Size: | 39.4 x 39.4 inches / 1000 x 1000 mm |
Housing: | Mild Steel |
Power Supply: | 12VDC 800mA adapter / Internal rechargeable battery |
Display: | Backlit LCD with 1.6" / 40mm high digits |
Interface: | RS-232 |
Calibration: | External |
Units of Measure: | g, kg, lb, lb:oz, oz, N, custom unit |
Warranty: | 3 years |
Net Weight: | 141.9lb / 64.4kg |
Overall Dimensions: | 39.4 x 39.4 x 4.3 inches / 1000 x 1000 x 110 mm |
Includes: | AE 403 indicator |
Working Environment: | 0° to 40°C / 32° to 104°F |
Applications: | Animal Weighing Checkweighing Display Hold Dynamic Weighing Parts Counting Percent Weighing Weighing |
