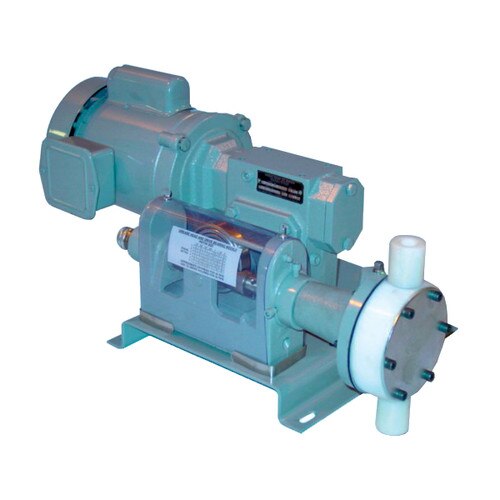

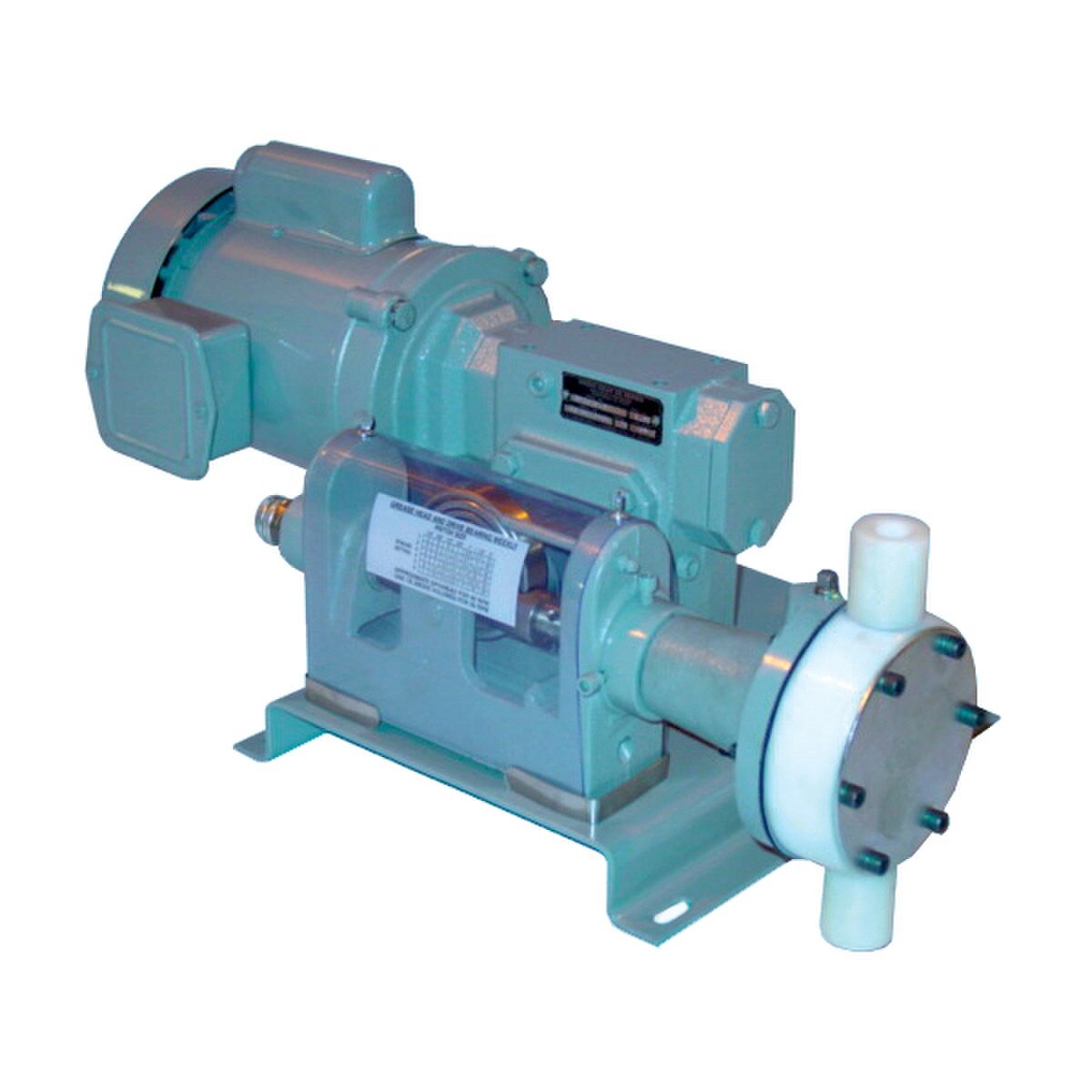

A&F Machine V-10-H Hydraulic Diaphragm Metering Pump, Simplex.
28.8 - 144.0 GPD (gallons per day), 1.2 - 6.0 GPH (gallons per hour), 2.56 - 12.8 ounces per minute
109.0 - 545.0 LPD (liters per day), 4.6 - 23.0 LPH (liters per hour), 75.8 - 379.0 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure, metal wet end.
Output rated at 100 PSI (6.89 BAR) maximum pressure, polyethylene wet end.
5/8" diameter hydraulic piston and Teflon diaphragm.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
This model separates the piston from the chemical by a diaphragm allowing the pump to be used for aggressive chemicals.
Connections: 3/8" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12 = 1/3 Horsepower 120/240VAC, 1PH, TEFC, 60Hz with power cord.
Wet End Materials: Polyethylene.
Includes: pressure relief valve and instruction manual.
28.8 - 144.0 GPD (gallons per day), 1.2 - 6.0 GPH (gallons per hour), 2.56 - 12.8 ounces per minute
109.0 - 545.0 LPD (liters per day), 4.6 - 23.0 LPH (liters per hour), 75.8 - 379.0 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure, metal wet end.
Output rated at 100 PSI (6.89 BAR) maximum pressure, polyethylene wet end.
5/8" diameter hydraulic piston and Teflon diaphragm.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
This model separates the piston from the chemical by a diaphragm allowing the pump to be used for aggressive chemicals.
Connections: 3/8" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12 = 1/3 Horsepower 120/240VAC, 1PH, TEFC, 60Hz with power cord.
Wet End Materials: Polyethylene.
Includes: pressure relief valve and instruction manual.
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10-H |
| Class: | Simplex |
| Max Flow (GPH): | 6 |
| Max Flow (GPD): | 144 |
| Max Pressure (PSI): | 100 |
| Max Viscosity (CPS): | 1,000 |
| Max Strokes per Minute: | 60 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | Polyethylene |
| Valve Balls: | Ceramic |
| Diaphragm: | Teflon |
| Valve / Seat / O-Ring: | Viton |
| Motor: | 1/3 HP 120/240VAC, 1PH, TEFC, 60Hz, 56C Frame |
| Connections: | 3/8" FNPT |
| Power Supply: | 120/240 VAC, 60 Hz, 1 Phase |
| Operating Modes: | Manual |
| Net Weight: | 78 lbs |
| Overall Dimensions: | 23 x 13 x 11 inches |
| Includes: | Pressure Relief Valve and Owners Manual |
