AFM-10960-16-S6

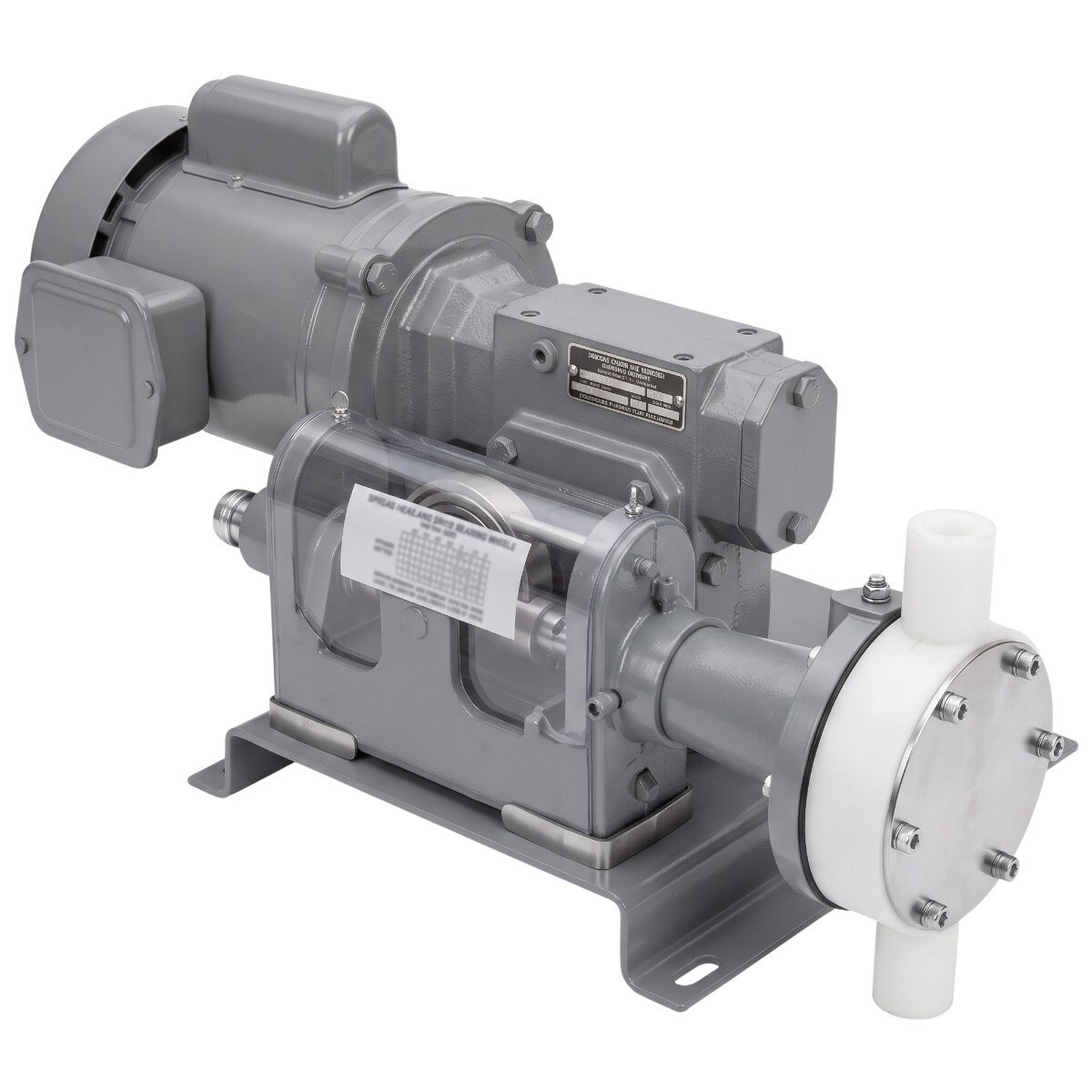

Images are for representation only. Actual product may differ in size, color or options.
A&F Machine V-10-H Hydraulic Diaphragm Metering Pump, Simplex
288.0 - 1440.0 GPD (gallons per day), 12.0 - 60.0 GPH (gallons per hour), 25.6 - 128.0 ounces per minute
1090.2 - 5451.0 LPD (liters per day), 45.4 - 227.0 LPH (liters per hour), 757.1 - 3785.4 milliliters per minute
Output rated at 100 PSI (6.89 BAR) maximum pressure.
2" diameter hydraulic piston and Teflon diaphragm.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
This model separates the piston from the chemical by a diaphragm allowing the pump to be used for aggressive chemicals.
Connections: 1" NPT male piping.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 16 = 1/2 Horsepower 240/480VAC, EPFC, 60Hz 3Phase.
Wet End Materials: S6 = 316 Stainless Steel.
Includes: pressure relief valve and instruction manual.
288.0 - 1440.0 GPD (gallons per day), 12.0 - 60.0 GPH (gallons per hour), 25.6 - 128.0 ounces per minute
1090.2 - 5451.0 LPD (liters per day), 45.4 - 227.0 LPH (liters per hour), 757.1 - 3785.4 milliliters per minute
Output rated at 100 PSI (6.89 BAR) maximum pressure.
2" diameter hydraulic piston and Teflon diaphragm.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
This model separates the piston from the chemical by a diaphragm allowing the pump to be used for aggressive chemicals.
Connections: 1" NPT male piping.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 16 = 1/2 Horsepower 240/480VAC, EPFC, 60Hz 3Phase.
Wet End Materials: S6 = 316 Stainless Steel.
Includes: pressure relief valve and instruction manual.
Product Type: | Diaphragm Metering Pump, Mechanically Driven |
Brand: | A&F Machine Products |
Product Line: | V-10-H |
Class: | Simplex |
Max Flow (GPH): | 60 |
Max Flow (GPD): | 1440 |
Max Pressure (PSI): | 100 |
Max Viscosity (CPS): | 3,000 |
Max Strokes per Minute: | 60 |
Flow Control: | Manual stroke length adjustment (0 to 100%) |
Turn Down Ratio: | 5 : 1 |
Head/Fittings: | S6 (316 SS) |
Valve Balls: | S6 (316 SS) |
Diaphragm: | Teflon |
Valve / Seat / O-Ring: | S6 (316 SS) |
Motor: | 1/2 HP 240/480VAC, 3PH, EPFC, 60Hz, 56C Frame |
Connections: | 1" MNPT |
Power Supply: | 240/480 VAC, 60 Hz, 3 Phase |
Operating Modes: | Manual |
Net Weight: | 112 lbs |
Overall Dimensions: | 31 x 14.5 x 16 inches |
Includes: | Pressure Relief Valve and Owners Manual |
