AFM-1230-12
Images are for representation only. Actual product may differ in size, color or options.

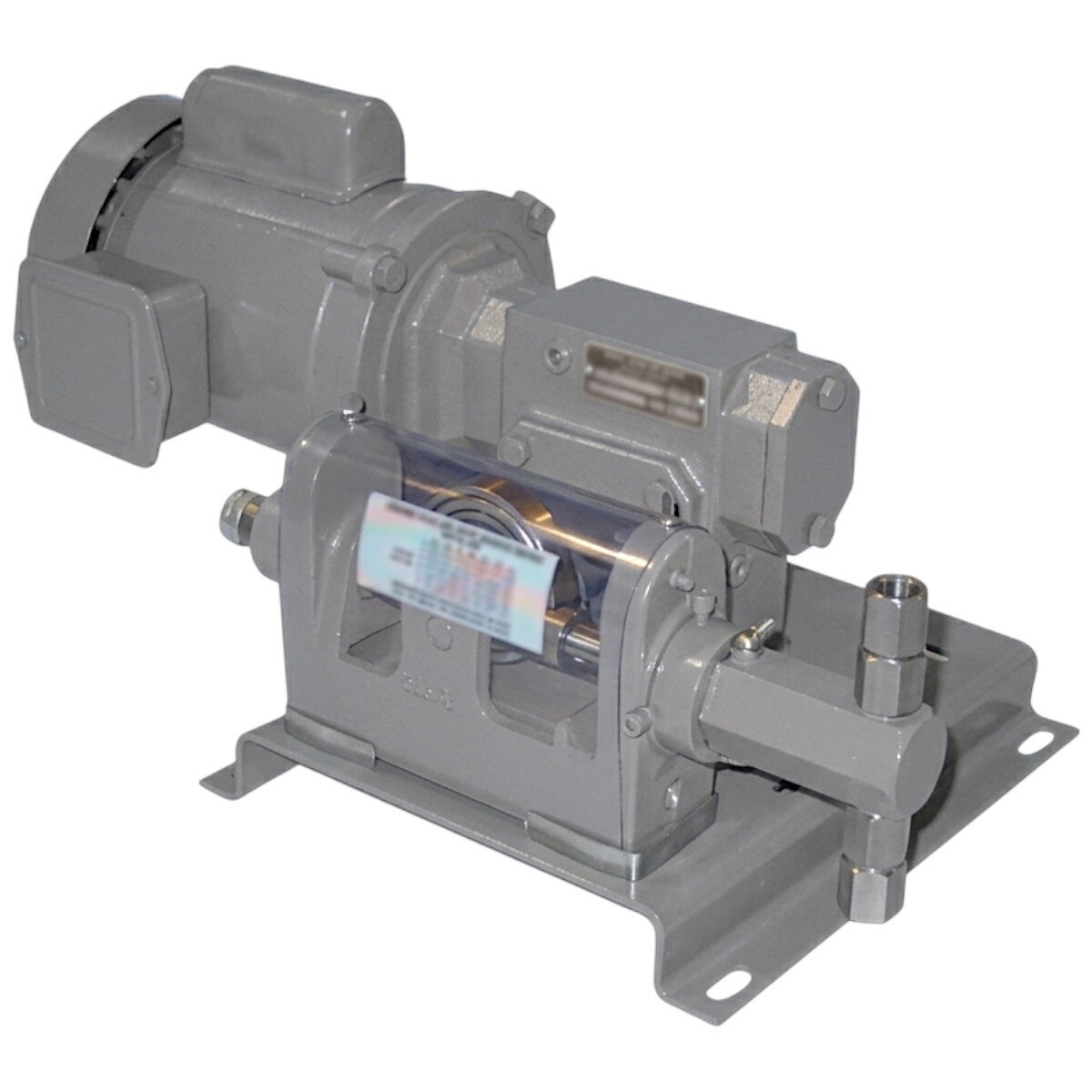

A&F Machine V-10 Piston Metering Pump, Simplex.
2.4 - 12.0 GPD (gallons per day), 0.1 - 0.5 GPH (gallons per hour), 0.21 - 1.07 ounces per minute
9.0 - 45.0 LPD (liters per day), 0.378 - 1.89 LPH (liters per hour), 6.3 - 31.5 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
1/4" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12 = 1/3 Horsepower 120/240VAC, 1PH, TEFC, 60Hz with power cord.
Wet End Materials: Carbon Steel.
Includes: pressure relief valve and instruction manual.
2.4 - 12.0 GPD (gallons per day), 0.1 - 0.5 GPH (gallons per hour), 0.21 - 1.07 ounces per minute
9.0 - 45.0 LPD (liters per day), 0.378 - 1.89 LPH (liters per hour), 6.3 - 31.5 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
1/4" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12 = 1/3 Horsepower 120/240VAC, 1PH, TEFC, 60Hz with power cord.
Wet End Materials: Carbon Steel.
Includes: pressure relief valve and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Simplex |
| Max Flow (GPH): | 0.5 |
| Max Flow (GPD): | 12 |
| Max Pressure (PSI): | 1000 |
| Max Viscosity (CPS): | 2,000 |
| Max Strokes per Minute: | 30 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | CS (Carbon Steel) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/3 HP 120/240VAC, 1PH, TEFC, 60Hz, 56C Frame |
| Connections: | 1/4" FNPT |
| Power Supply: | 120/240 VAC, 60 Hz, 1 Phase |
| Operating Modes: | Manual |
| Net Weight: | 78 lbs |
| Overall Dimensions: | 24 x 12 x 11 inches |
| Includes: | Pressure Relief Valve and Owners Manual |
