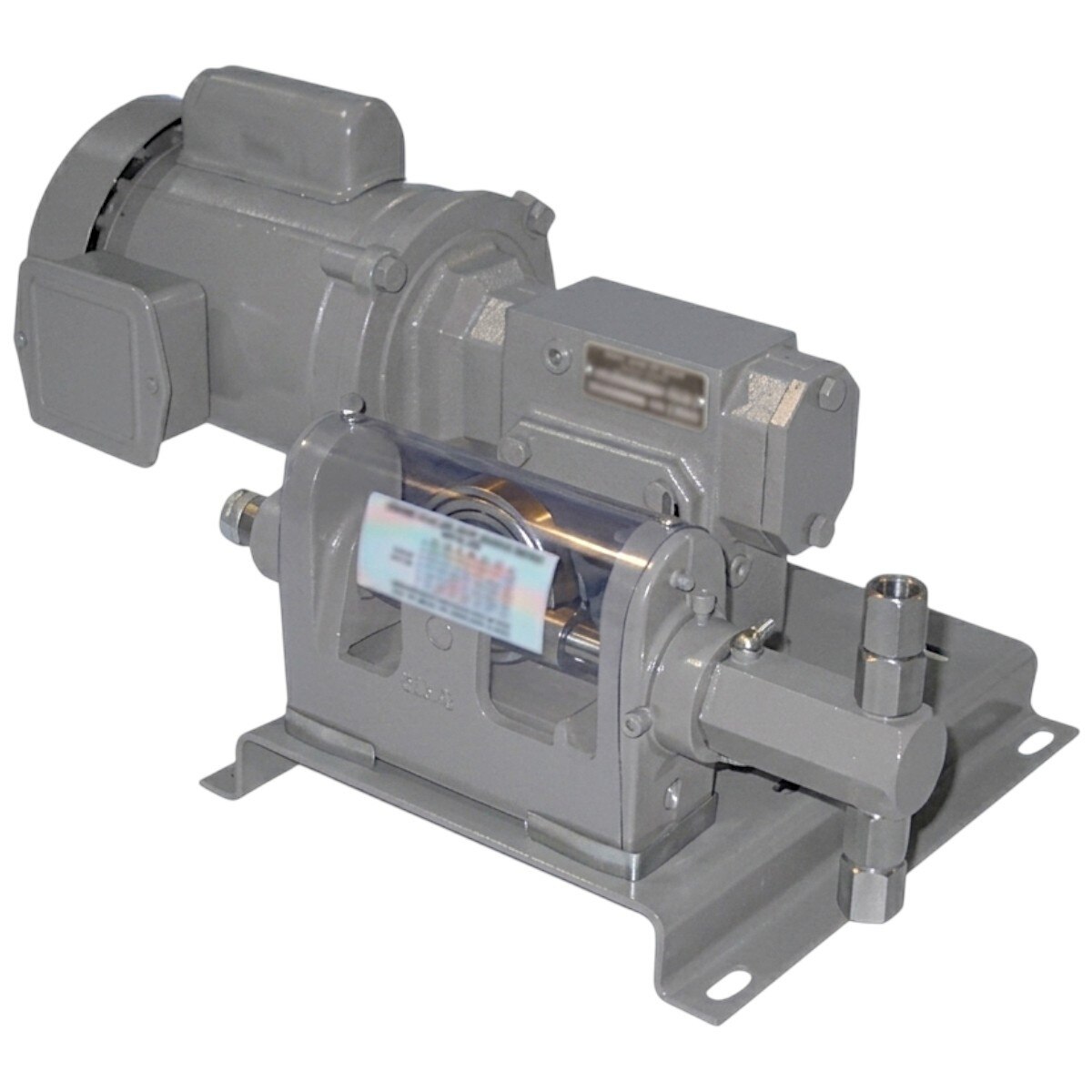

A&F Machine V-10 Piston Metering Pump, Simplex

(0)No Reviews yet
$1,971.75 $2,390.00
QuantityPrice
1$1,971.75
SKU: AFM-1260-12-S6
Item Number: AFM-1260-12-S6
Model Number: 1260-12-S6
Manufacturer: A&F Machine Products
Brand: A&F Machine Products
MPN: 1260-12-S6
Condition: New

New

A&F Machine V-10 Piston Metering Pump, Simplex.
4.8 - 24.0 GPD (gallons per day), 0.2 - 1.0 GPH (gallons per hour), 0.43 - 2.14 ounces per minute
18.2 - 91.0 LPD (liters per day), 0.75 - 3.79 LPH (liters per hour), 13.0 - 63.0 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
1/4" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12 = 1/3 Horsepower 120/240VAC, TEFC, 60Hz 1Phase with power cord
Wet End Materials: S6 = 316 Stainless Steel
Includes: pressure relief valve and instruction manual.


Product Type: Piston Metering Pump, Mechanically Driven
Brand: A&F Machine Products
Product Line: V-10
Class: Simplex
Max Flow (GPH): 1
Max Flow (GPD): 24
Max Pressure (PSI): 1000
Max Viscosity (CPS): 1,000
Max Strokes per Minute: 60
Flow Control: Manual stroke length adjustment (0 to 100%)
Turn Down Ratio: 5 : 1
Head/Fittings: S6 (316 SS)
Valve Balls: S6 (316 SS)
Valve / Seat / O-Ring: Nickel Plated Copper Seal
Motor: 1/3 HP 120/240VAC, 1PH, TEFC, 60Hz, 56C Frame
Connections: 1/4" FNPT
Power Supply: 120/240 VAC, 60 Hz, 1 Phase
Operating Modes: Manual
Net Weight: 78 lbs
Overall Dimensions: 24 x 12 x 11 inches
Includes: Pressure Relief Valve and Owners Manual
