AFM-1430-3

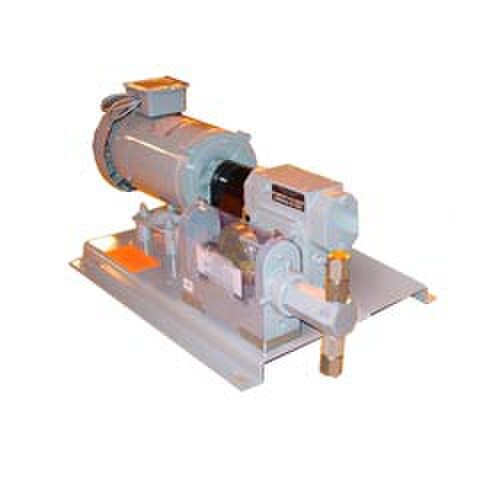

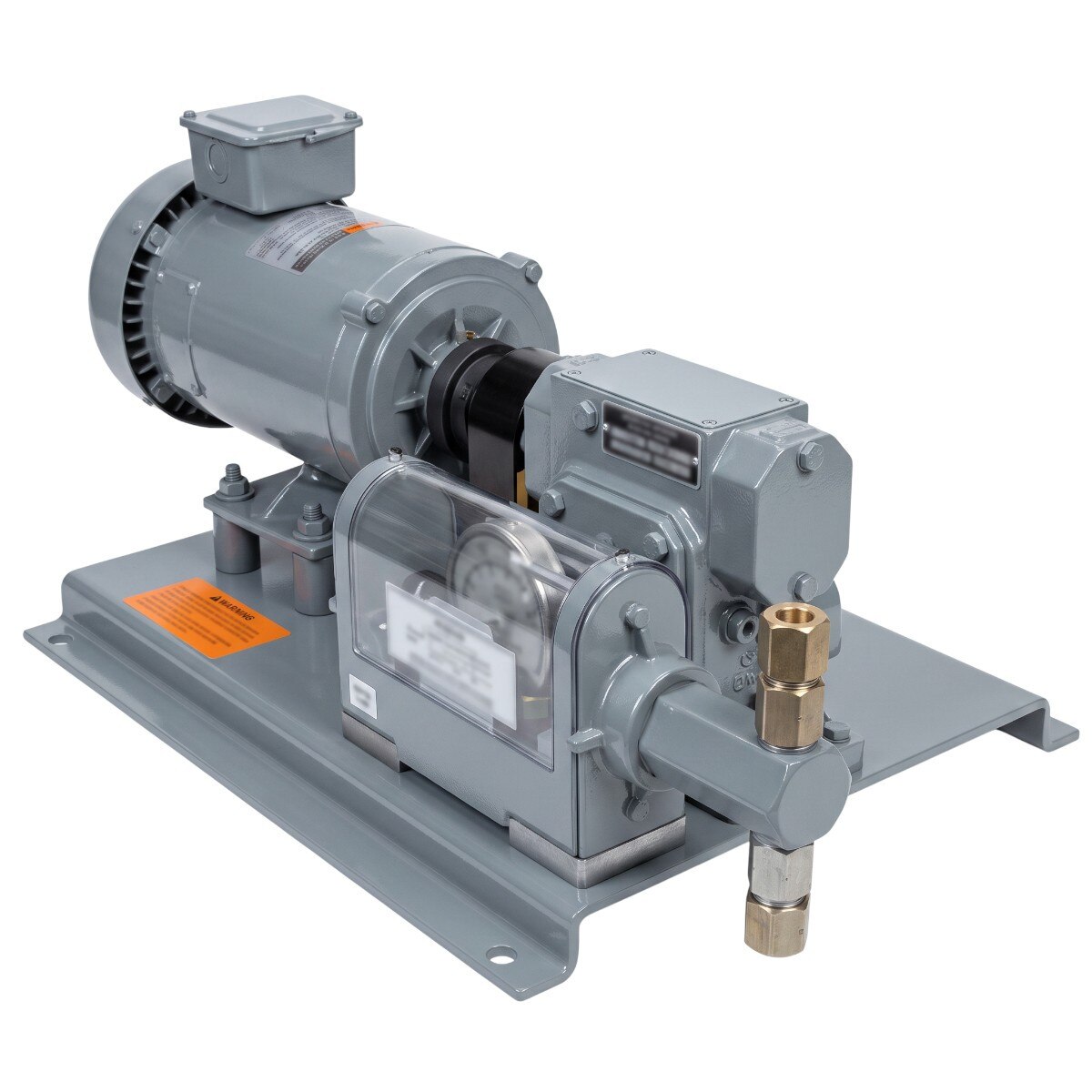

A&F Machine V-5 Piston Metering Pump, Simplex.
7.2 - 36.0 GPD (gallons per day), 0.3 - 1.5 GPH (gallons per hour), 0.64 - 3.2 ounces per minute
27.2 - 136.0 LPD (liters per day), 1.14 - 5.7 LPH (liters per hour), 18.92 - 94.6 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
1/2" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56 Foot Mount Motor Connection (Coupling Drive).
Drive Motor: 3 = 1/2 Horsepower 120/240VAC, EPFC, 60Hz 1Phase
Wet End Materials: Carbon Steel.
Includes: pressure relief valve and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-5 |
| Class: | Simplex |
| Max Flow (GPH): | 1.5 |
| Max Flow (GPD): | 36 |
| Max Pressure (PSI): | 1000 |
| Max Viscosity (CPS): | 2,000 |
| Max Strokes per Minute: | 30 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | CS (Carbon Steel) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/2 HP 120/240VAC, 1PH, EPFC, 60Hz, 56 Frame |
| Connections: | 1/4" FNPT |
| Power Supply: | 120/240 VAC, 60 Hz, 1 Phase |
| Operating Modes: | Manual |
| Net Weight: | 95 lbs |
| Overall Dimensions: | 23 x 14.125 x 11.5 inches |
| Includes: | Pressure Relief Valve and Owners Manual |
