AFM-1506-12-S6
Images are for representation only. Actual product may differ in size, color or options.

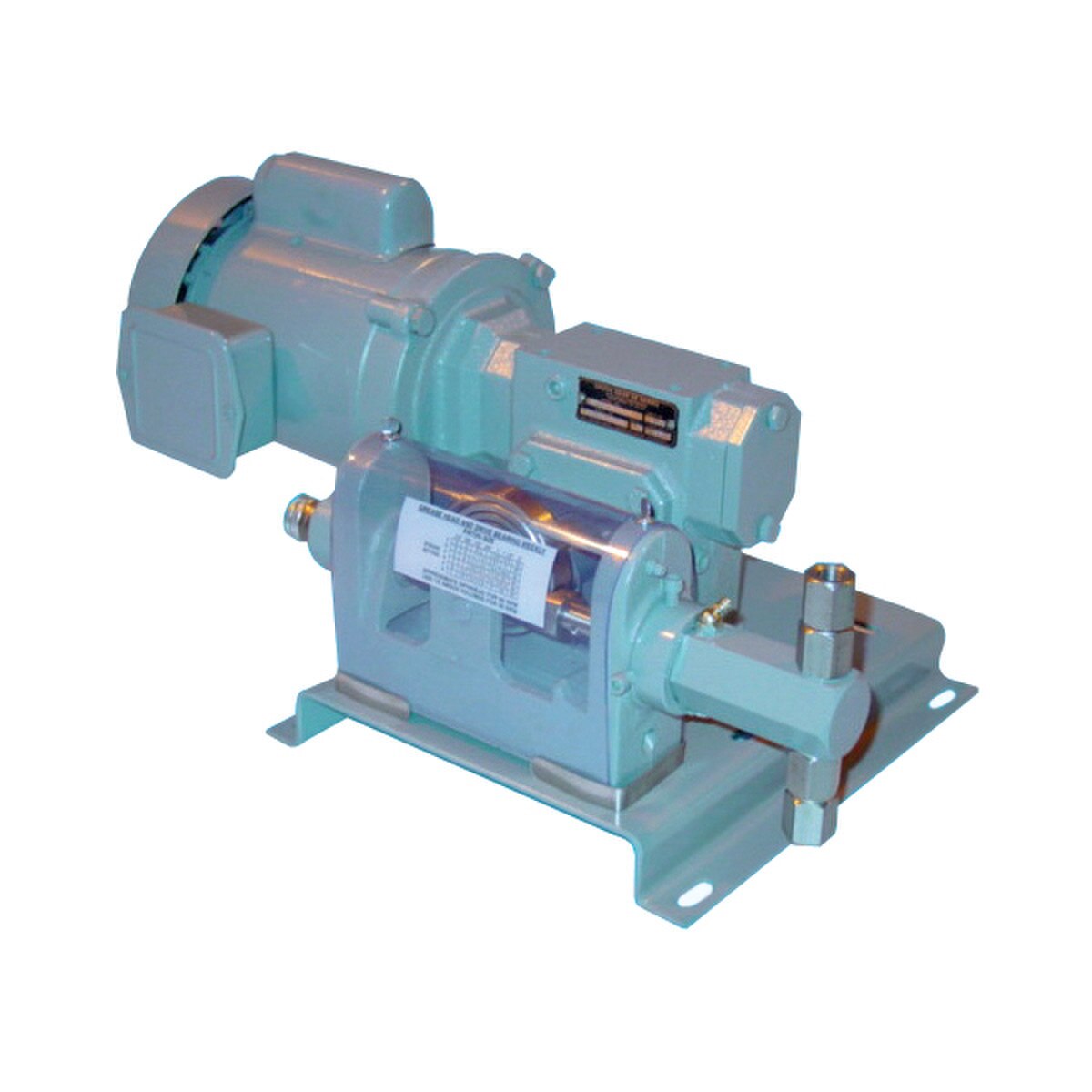

A&F Machine V-10 Piston Metering Pump, Simplex.
2.88 - 14.4 GPD (gallons per day), 0.12 - 0.6 GPH (gallons per hour), 0.256 - 1.28 ounces per minute
10.9 - 54.5 LPD (liters per day), 0.46 - 2.30 LPH (liters per hour), 7.58 - 37.9 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
5/8" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 6 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12 = 1/3 Horsepower 120/240VAC, TEFC, 60Hz 1Phase with power cord.
Wet End Materials: S6 = 316 Stainless Steel,
Includes: pressure relief valve and instruction manual.
2.88 - 14.4 GPD (gallons per day), 0.12 - 0.6 GPH (gallons per hour), 0.256 - 1.28 ounces per minute
10.9 - 54.5 LPD (liters per day), 0.46 - 2.30 LPH (liters per hour), 7.58 - 37.9 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
5/8" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 6 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12 = 1/3 Horsepower 120/240VAC, TEFC, 60Hz 1Phase with power cord.
Wet End Materials: S6 = 316 Stainless Steel,
Includes: pressure relief valve and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Simplex |
| Max Flow (GPH): | 0.6 |
| Max Flow (GPD): | 14.4 |
| Max Pressure (PSI): | 1000 |
| Max Viscosity (CPS): | 6,000 |
| Max Strokes per Minute: | 6 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | S6 (316 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/3 HP 120/240VAC, 1PH, TEFC, 60Hz, 56C Frame |
| Connections: | 1/4" FNPT |
| Power Supply: | 120/240 VAC, 60 Hz, 1 Phase |
| Operating Modes: | Manual |
| Net Weight: | 78 lbs |
| Overall Dimensions: | 24 x 12 x 11 inches |
| Includes: | Pressure Relief Valve and Owners Manual |
