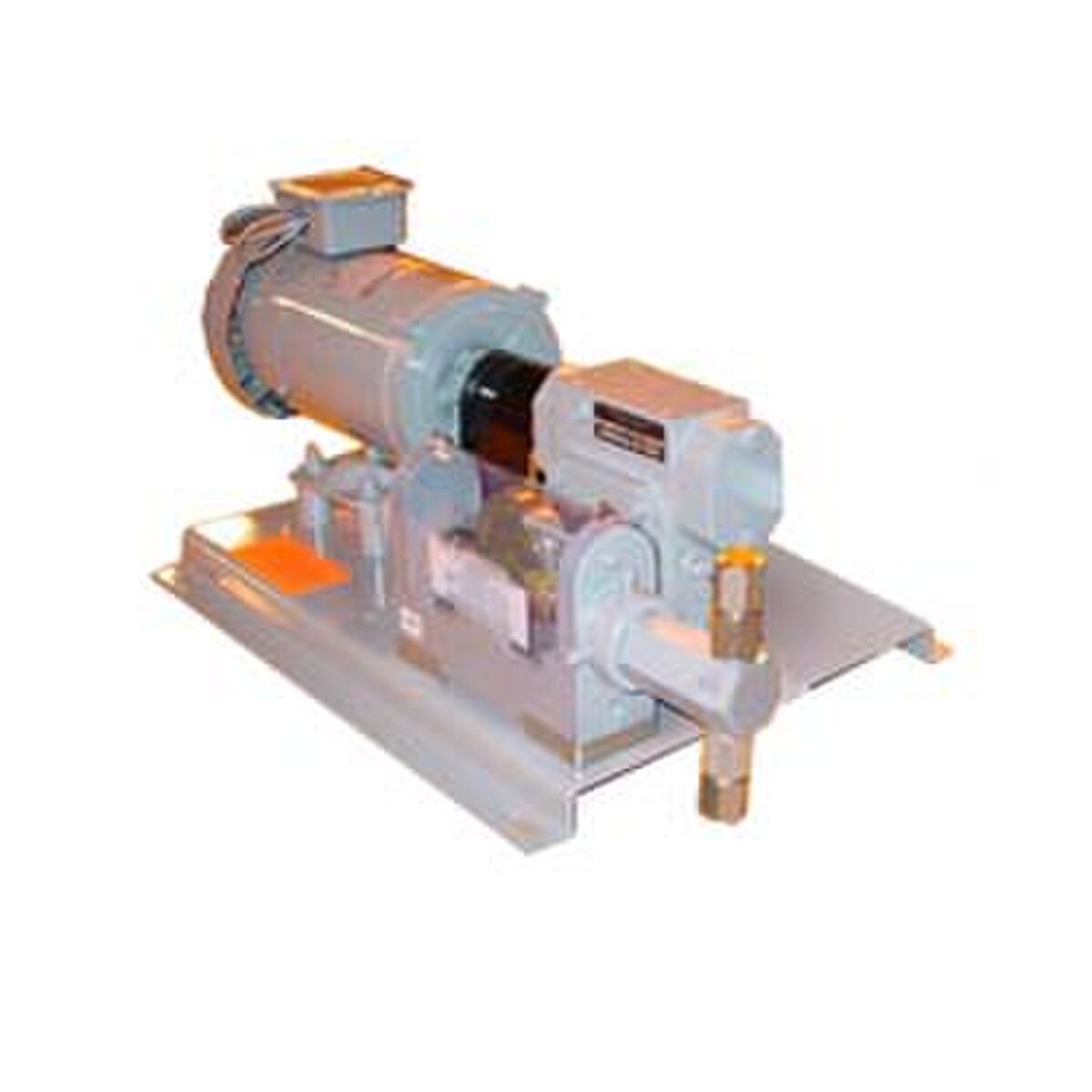

A&F Machine V-5 Piston Metering Pump, Simplex

(0)No Reviews yet
$2,862.75 $3,470.00
QuantityPrice
1$2,862.75
SKU: AFM-1560-8-S6
Item Number: AFM-1560-8-S6
Model Number: 1560-8-S6
Manufacturer: A&F Machine Products
Brand: A&F Machine Products
MPN: 1560-8-S6
Condition: New

New

A&F Machine V-5 Piston Metering Pump, Simplex.
28.8 - 144.0 GPD (gallons per day), 1.2 - 6.0 GPH (gallons per hour), 2.56 - 12.8 ounces per minute
109.0 - 545.0 LPD (liters per day), 4.6 - 23.0 LPH (liters per hour), 75.8 - 379.0 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
5/8" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56 Foot Mount Motor Connection (Coupling Drive).
Drive Motor: 8 = 1/2 Horsepower 120/240VAC, 1PH, TEFC, 60Hz.
Wet End Materials: S6 = 316 Stainless Steel.
Includes: pressure relief valve and instruction manual.


Product Type: Piston Metering Pump, Mechanically Driven
Brand: A&F Machine Products
Product Line: V-5
Class: Simplex
Max Flow (GPH): 6
Max Flow (GPD): 144
Max Pressure (PSI): 1000
Max Viscosity (CPS): 1,000
Max Strokes per Minute: 60
Flow Control: Manual stroke length adjustment (0 to 100%)
Turn Down Ratio: 5 : 1
Head/Fittings: S6 (316 SS)
Valve Balls: S6 (316 SS)
Valve / Seat / O-Ring: Nickel Plated Copper Seal
Motor: 1/2 HP 120/240VAC, 1PH, TEFC, 60Hz, 56 Frame
Connections: 1/4" FNPT
Power Supply: 120/240 VAC, 60 Hz, 1 Phase
Operating Modes: Manual
Net Weight: 95 lbs
Overall Dimensions: 23 x 14.125 x 11.5 inches
Includes: Pressure Relief Valve and Owners Manual
