AFM-2330-0FM-SS

(0)No Reviews yet
$2,938.20 $3,540.00
QuantityPrice
1 – 1$3,540.00
1 – 1$2,938.20
2 +$2,902.80
SKU: AFM-2330-0FM-SS

New

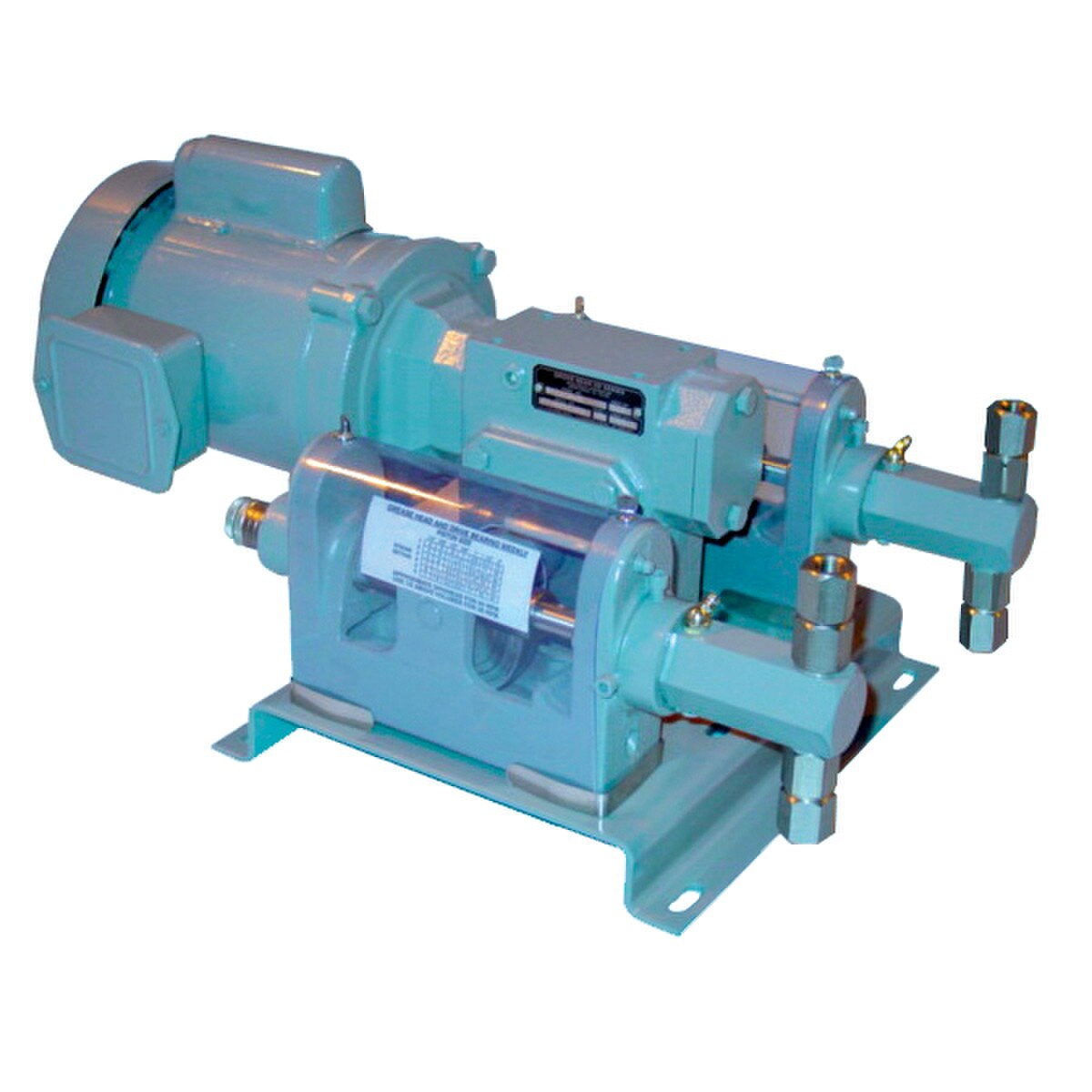

A&F Machine V-10 Piston Metering Pump, Duplex.
Per Head 3.84 - 19.2 GPD (gallons per day), 0.16 - 0.8 GPH (gallons per hour), 0.34 - 1.70 ounces per minute
14.6 - 73.0 LPD (liters per day), 0.6 - 3.0 LPH (liters per hour), 10.1 - 50.5 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 3/8" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 0FM = WITHOUT Motor
Wet End Materials: SS = 303 Stainless Steel
Includes: pressure relief valve (2) and instruction manual.


Product Type: Piston Metering Pump, Mechanically Driven
Brand: A&F Machine Products
Product Line: V-10
Class: Duplex
Max Flow (GPH): 0.8
Max Flow (GPD): 19.2
Max Pressure (PSI): 1000
Max Viscosity (CPS): 2,000
Max Strokes per Minute: 30
Flow Control: Manual stroke length adjustment (0 to 100%)
Turn Down Ratio: 5 : 1
Head/Fittings: SS (303 SS)
Valve Balls: S6 (316 SS)
Valve / Seat / O-Ring: Nickel Plated Copper Seal
Motor: NO MOTOR, 56C FRAME
Connections: 1/4" FNPT
Operating Modes: Manual
Net Weight: 70 lbs
Overall Dimensions: 24 x 12 x 11 inches
Includes: Pressure Relief Valves and Owners Manual
