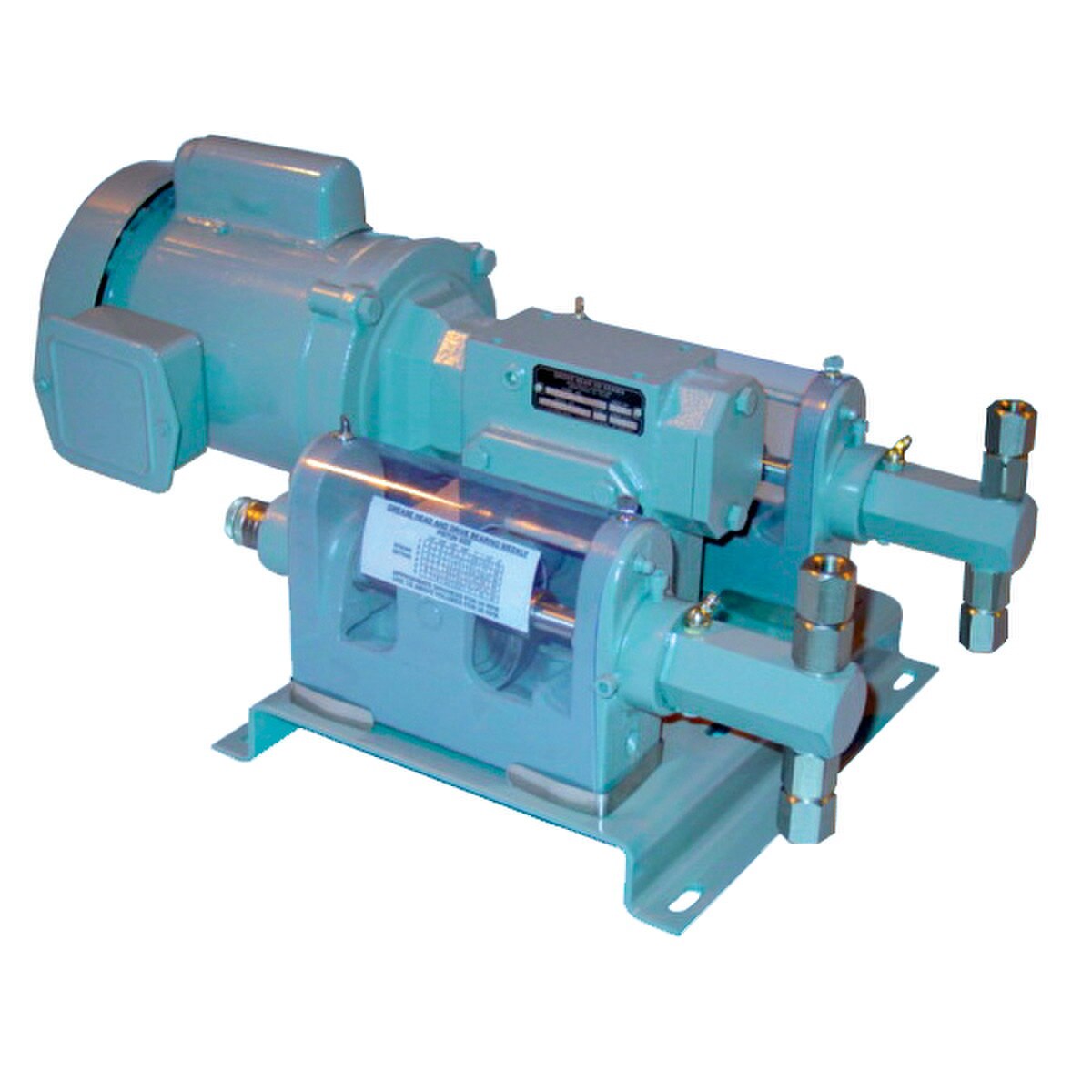

A&F Machine V-10 Piston Metering Pump, Duplex
Images are for representation only. Actual product may differ in size, color or options.
A&F Machine V-10 Piston Metering Pump, Duplex.
Per Head 28.8 - 144.0 GPD (gallons per day), 1.2 - 6.0 GPH (gallons per hour), 2.56 - 12.8 ounces per minute
109.0 - 545.0 LPD (liters per day), 4.6 - 23.0 LPH (liters per hour), 75.8 - 379.0 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 5/8" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12V = 1/2 Horsepower 120/240VAC, 1PH, TEFC, 60Hz (no power cord).
Wet End Materials: SS = 303 Stainless Steel.
Includes: pressure relief valve (2) and instruction manual.
Per Head 28.8 - 144.0 GPD (gallons per day), 1.2 - 6.0 GPH (gallons per hour), 2.56 - 12.8 ounces per minute
109.0 - 545.0 LPD (liters per day), 4.6 - 23.0 LPH (liters per hour), 75.8 - 379.0 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 5/8" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12V = 1/2 Horsepower 120/240VAC, 1PH, TEFC, 60Hz (no power cord).
Wet End Materials: SS = 303 Stainless Steel.
Includes: pressure relief valve (2) and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 Duplex |
| Net Weight: | 111 lbs |
