AFM-2860-19-SS

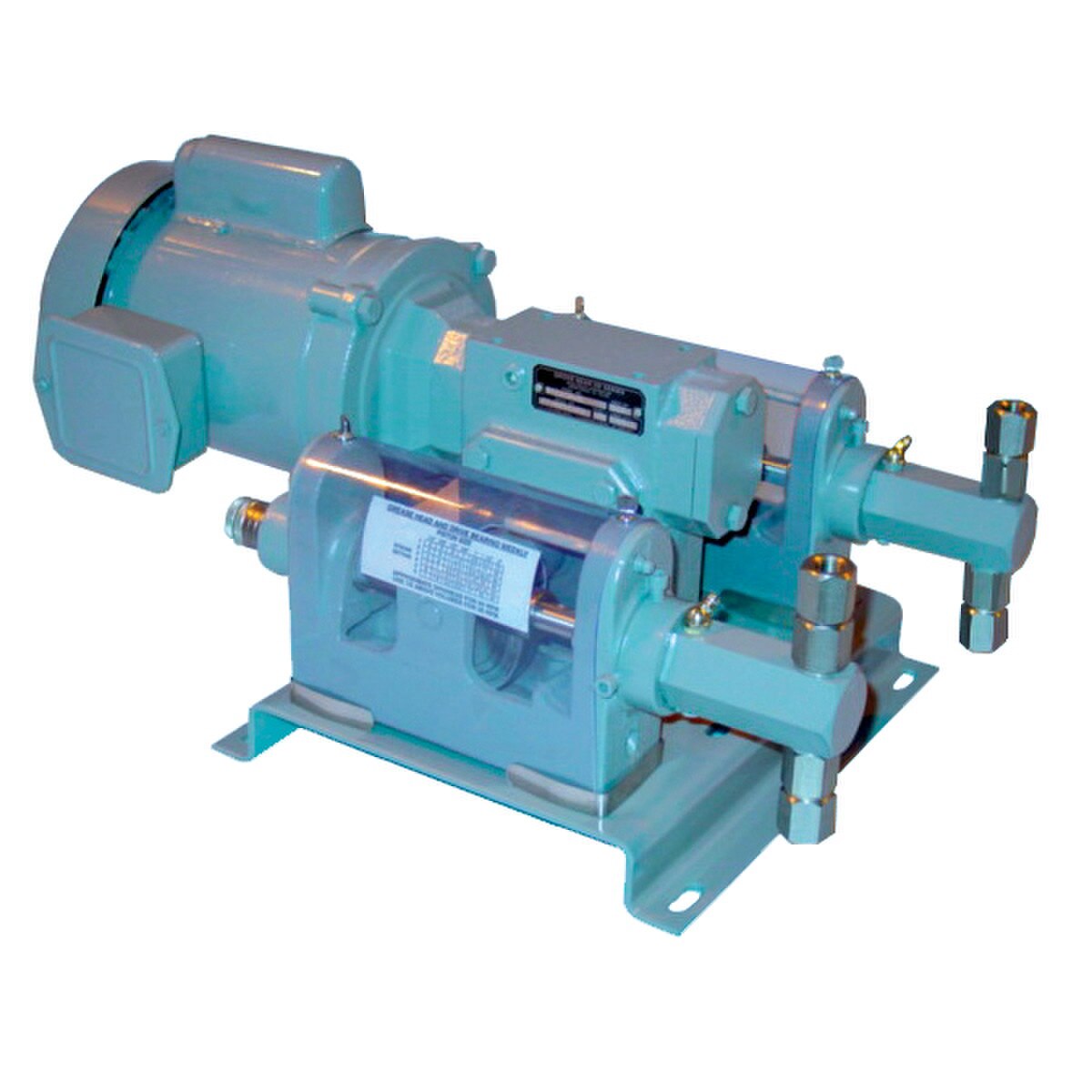

Images are for representation only. Actual product may differ in size, color or options.
A&F Machine V-10 Piston Metering Pump, Duplex.
Per Head 67.2 - 336.0 GPD (gallons per day), 2.8 - 14.0 GPH (gallons per hour), 6.0 - 30.0 ounces per minute
254.4 - 1272.0 LPD (liters per day), 10.6 - 53.0 LPH (liters per hour), 176.66 - 883.3 milliliters per minute
Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
Per Head 1" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/2" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 19 = 1/2 Horsepower 230/460VAC TENV, Inverter Duty (no power cord).
Wet End Materials: SS = 303 Stainless Steel.
Includes: pressure relief valve (2) and instruction manual.
Per Head 67.2 - 336.0 GPD (gallons per day), 2.8 - 14.0 GPH (gallons per hour), 6.0 - 30.0 ounces per minute
254.4 - 1272.0 LPD (liters per day), 10.6 - 53.0 LPH (liters per hour), 176.66 - 883.3 milliliters per minute
Per Head output rated at 500 PSI (34.5 BAR) maximum pressure.
Per Head 1" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/2" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 19 = 1/2 Horsepower 230/460VAC TENV, Inverter Duty (no power cord).
Wet End Materials: SS = 303 Stainless Steel.
Includes: pressure relief valve (2) and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Duplex |
| Max Flow (GPH): | 30 |
| Max Flow (GPD): | 720 |
| Max Pressure (PSI): | 500 |
| Max Viscosity (CPS): | 2,000 |
| Max Strokes per Minute: | 60 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | SS (303 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/2 HP 230/460VAC, 3PH, TENV, Inverter Duty, 56C Frame (VFD ready) |
| Connections: | 1/2" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase, VFD |
| Operating Modes: | Manual, (VFD ready) |
| Net Weight: | 135 lbs |
| Overall Dimensions: | 25 x 12 x 11 inches |
| Includes: | Pressure Relief Valves and Owners Manual |
