AFM-3460-13-S6
Images are for representation only. Actual product may differ in size, color or options.

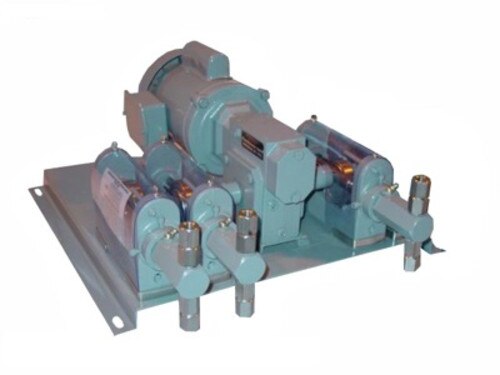

A&F Machine V-10 Piston Metering Pump, Triplex.
Per Head 14.4 - 72.0 GPD (gallons per day), 0.6 - 3.0 GPH (gallons per hour), 1.28 - 6.4 ounces per minute
54.5 - 272.5 LPD (liters per day), 2.28 - 11.4 LPH (liters per hour), 37.8 - 189.0 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 1/2" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 13 = 1/2 Horsepower 120/240VAC, EPFC, 60Hz 1Phase
Wet End Materials: S6 = 316 Stainless Steel
Includes: pressure relief valve (3) and instruction manual.
Per Head 14.4 - 72.0 GPD (gallons per day), 0.6 - 3.0 GPH (gallons per hour), 1.28 - 6.4 ounces per minute
54.5 - 272.5 LPD (liters per day), 2.28 - 11.4 LPH (liters per hour), 37.8 - 189.0 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 1/2" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 13 = 1/2 Horsepower 120/240VAC, EPFC, 60Hz 1Phase
Wet End Materials: S6 = 316 Stainless Steel
Includes: pressure relief valve (3) and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Triplex |
| Max Flow (GPH): | 3 |
| Max Flow (GPD): | 72 |
| Max Pressure (PSI): | 1000 |
| Max Viscosity (CPS): | 1,000 |
| Max Strokes per Minute: | 60 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | S6 (316 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/2 HP 120/240VAC, 1PH, EPFC, 60Hz, 56C Frame |
| Connections: | 1/4" FNPT |
| Power Supply: | 120/240 VAC, 60 Hz, 1 Phase |
| Operating Modes: | Manual |
| Net Weight: | 136 lbs |
| Overall Dimensions: | 24 x 19 x 11 inches |
| Includes: | Pressure Relief Valves and Owners Manual |
