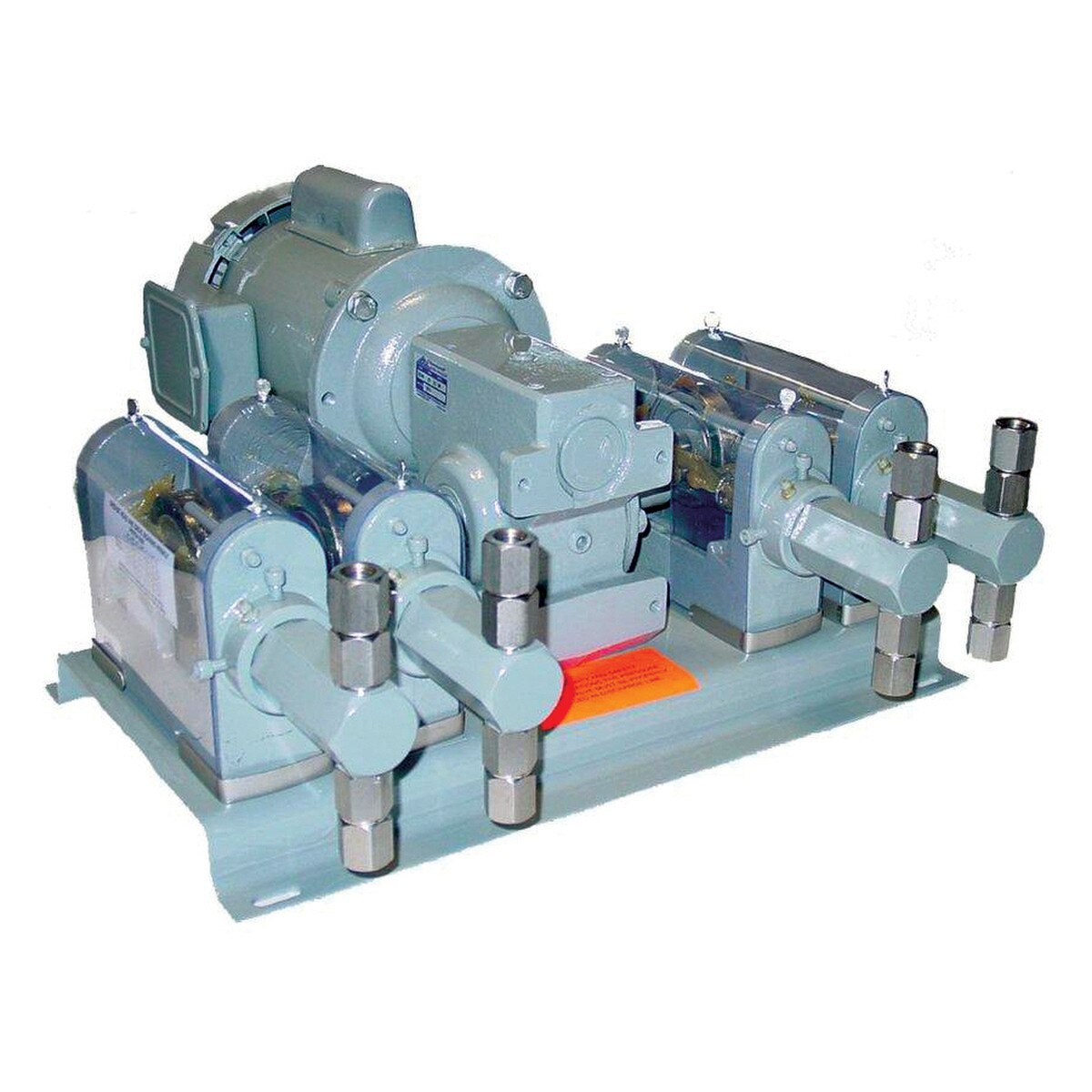

A&F Machine V-10 Piston Metering Pump, Quad
Images are for representation only. Actual product may differ in size, color or options.
A&F Machine V-10 Piston Metering Pump, Quad.
Per Head 0.48 - 2.4 GPD (gallons per day), 0.02 - 0.1 GPH (gallons per hour), 0.043 - 0.213 ounces per minute
1.8 - 9.0 LPD (liters per day), 0.08 - 0.38 LPH (liters per hour), 1.3 - 6.3 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 1/4" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 6 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 19 = 1/2 Horsepower 230/460VAC TENV, Inverter Duty (no power cord).
Wet End Materials: SS = 303 Stainless Steel.
Includes: pressure relief valve (4) and instruction manual.
Per Head 0.48 - 2.4 GPD (gallons per day), 0.02 - 0.1 GPH (gallons per hour), 0.043 - 0.213 ounces per minute
1.8 - 9.0 LPD (liters per day), 0.08 - 0.38 LPH (liters per hour), 1.3 - 6.3 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 1/4" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 6 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 19 = 1/2 Horsepower 230/460VAC TENV, Inverter Duty (no power cord).
Wet End Materials: SS = 303 Stainless Steel.
Includes: pressure relief valve (4) and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Quadraplex |
| Max Flow (GPH): | 0.1 |
| Max Flow (GPD): | 2.4 |
| Max Pressure (PSI): | 1000 |
| Max Viscosity (CPS): | 6,000 |
| Max Strokes per Minute: | 6 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | SS (303 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/2 HP 230/460VAC, 3PH, TENV, Inverter Duty, 56C Frame (VFD ready) |
| Connections: | 1/4" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase, VFD |
| Operating Modes: | Manual, (VFD ready) |
| Net Weight: | 150 lbs |
| Overall Dimensions: | 24 x 19 x 11 inches |
| Includes: | Pressure Relief Valves and Owners Manual |
