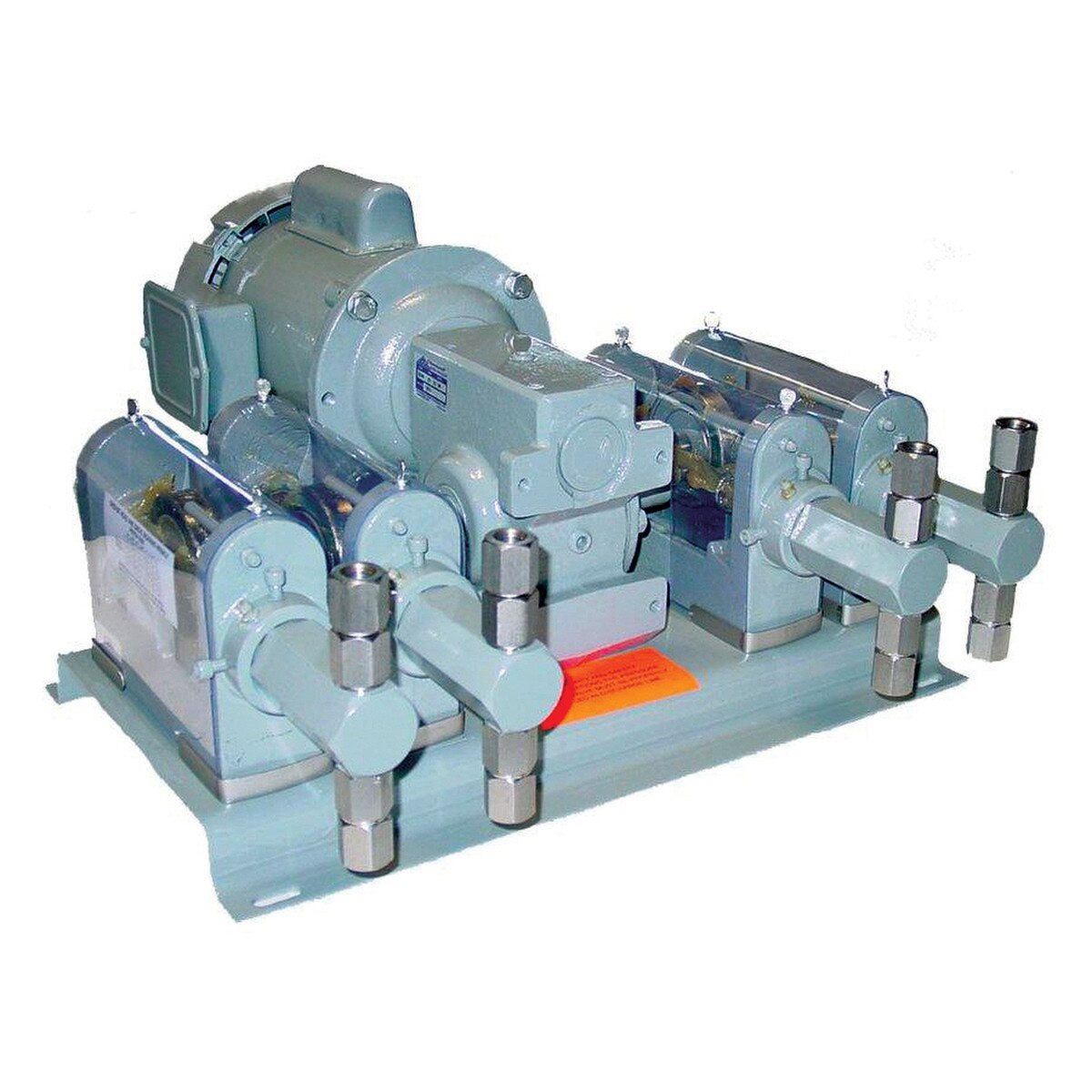

A&F Machine V-10 Piston Metering Pump, Quad
Images are for representation only. Actual product may differ in size, color or options.
A&F Machine V-10 Piston Metering Pump, Quad.
Per Head 7.68 - 38.4 GPD (gallons per day), 0.32 - 1.6 GPH (gallons per hour), 0.68 - 3.41 ounces per minute
29.1 - 145.5 LPD (liters per day), 1.21 - 6.06 LPH (liters per hour), 20.2 - 101.0 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 3/8" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 15V = 1/2 Horsepower 240/480VAC, 3PH, TEFC, 60Hz (no power cord).
Wet End Materials: S6 = 316 Stainless Steel.
Includes: pressure relief valve (4) and instruction manual.
Per Head 7.68 - 38.4 GPD (gallons per day), 0.32 - 1.6 GPH (gallons per hour), 0.68 - 3.41 ounces per minute
29.1 - 145.5 LPD (liters per day), 1.21 - 6.06 LPH (liters per hour), 20.2 - 101.0 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 3/8" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 15V = 1/2 Horsepower 240/480VAC, 3PH, TEFC, 60Hz (no power cord).
Wet End Materials: S6 = 316 Stainless Steel.
Includes: pressure relief valve (4) and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Quadraplex |
| Max Flow (GPH): | 1.6 |
| Max Flow (GPD): | 38.4 |
| Max Pressure (PSI): | 1000 |
| Max Viscosity (CPS): | 1,000 |
| Max Strokes per Minute: | 60 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | S6 (316 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/2 HP 240/480VAC, 3PH, TEFC, 60Hz, 56C Frame |
| Connections: | 1/4" FNPT |
| Power Supply: | 240/480 VAC, 60 Hz, 3 Phase |
| Operating Modes: | Manual |
| Net Weight: | 120 lbs |
| Overall Dimensions: | 24 x 19 x 11 inches |
| Includes: | Pressure Relief Valves and Owners Manual |
