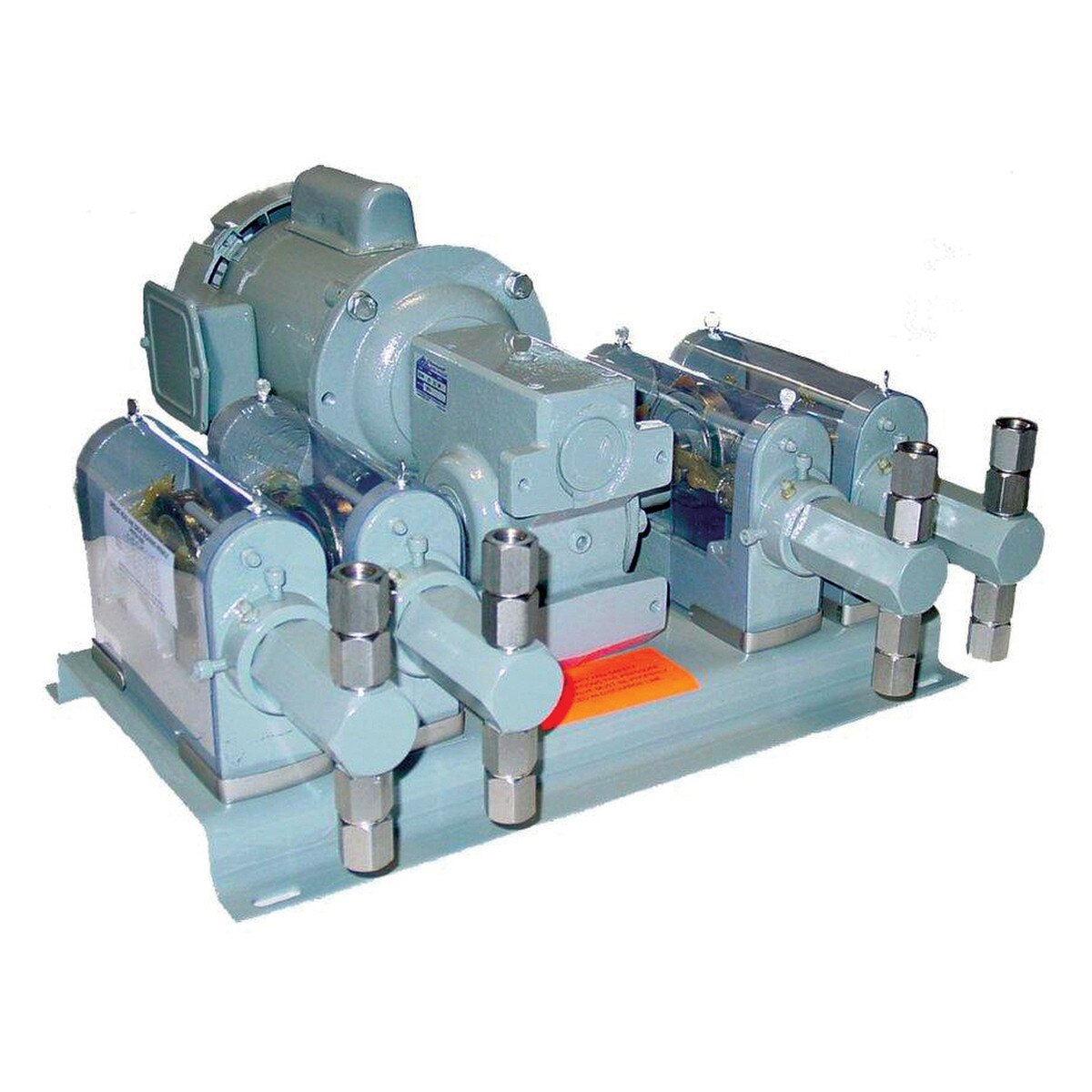

A&F Machine V-10 Piston Metering Pump, Quad
A&F Machine V-10 Piston Metering Pump, Quad.
Per Head 7.2 - 36.0 GPD (gallons per day), 0.3 - 1.5 GPH (gallons per hour), 0.64 - 3.2 ounces per minute
27.2 - 136.0 LPD (liters per day), 1.14 - 5.7 LPH (liters per hour), 18.92 - 94.6 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 1/2" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12V = 1/2 Horsepower 120/240VAC, 1PH, TEFC, 60Hz (no power cord).
Wet End Materials: SS = 303 Stainless Steel.
Includes: pressure relief valve (4) and instruction manual.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10 |
| Class: | Quadraplex |
| Max Flow (GPH): | 1.5 |
| Max Flow (GPD): | 36.0 |
| Max Pressure (PSI): | 1000 |
| Max Viscosity (CPS): | 2,000 |
| Max Strokes per Minute: | 30 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | SS (303 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | Nickel Plated Copper Seal |
| Motor: | 1/2 HP 120/240VAC, 1PH, TEFC, 60Hz, 56C Frame |
| Connections: | 1/4" FNPT |
| Power Supply: | 120/240 VAC, 60 Hz, 1 Phase |
| Operating Modes: | Manual |
| Net Weight: | 160 lbs |
| Overall Dimensions: | 24 x 19 x 11 inches |
| Includes: | Pressure Relief Valves and Owners Manual |
