AFM-DCC
Images are for representation only. Actual product may differ in size, color or options.

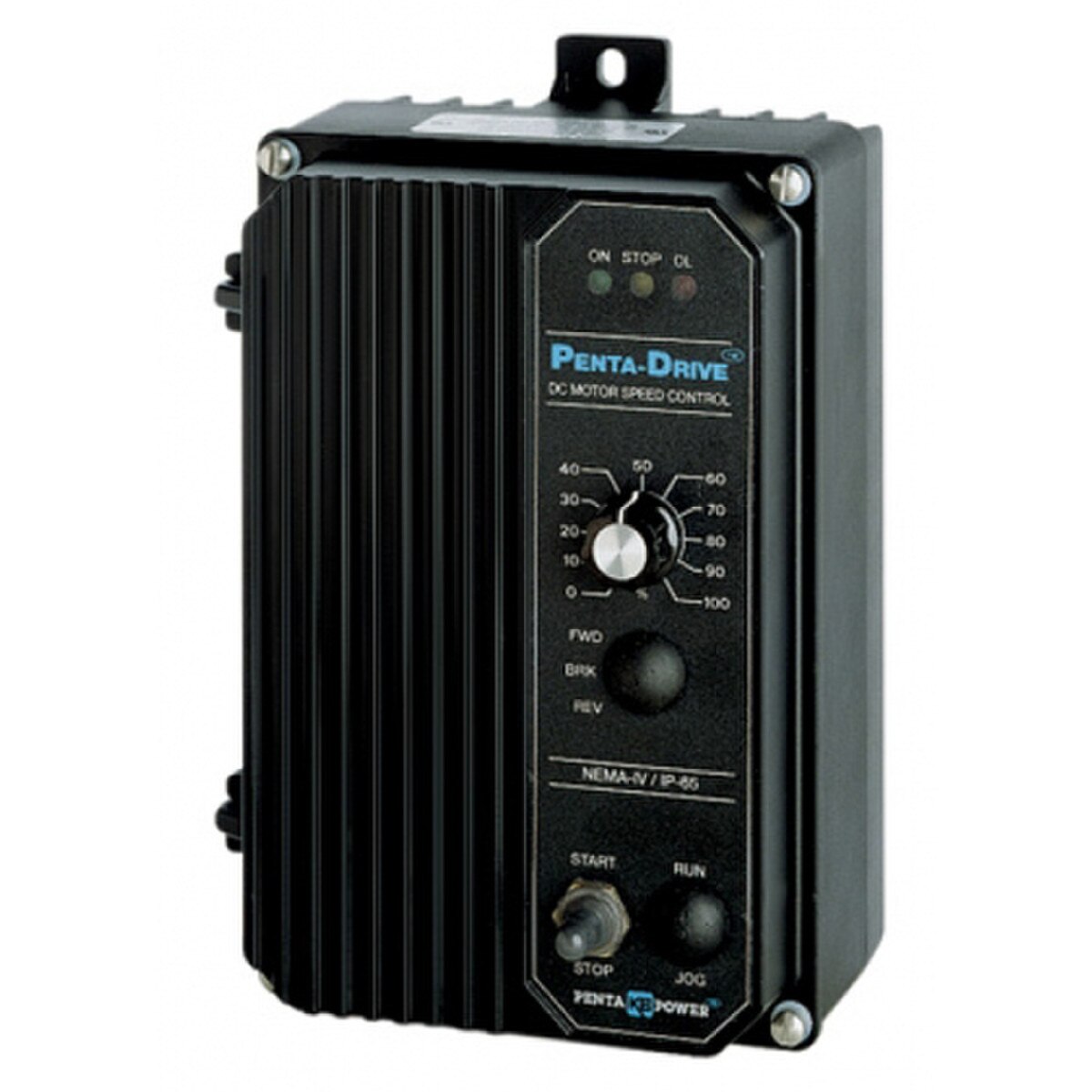

Adjustable DC Motor Speed & variable Torque control (each)
The DCC controller converts AC voltage to DC voltage and is used in conjunction with a DC motor to vary the output of a pump by varying the speed of the motor. Speed control can be done manually by the dial on the front of the controller or remotely by a 0-5/0-10 VDC or 4-20 ma signal. The controller can be mounted directly to a pump or in a remote location like a control room.
Manual-Auto Control.
Manual: Speed Control 0-100%.
Auto Control: via 4-20 mA input.
Input Power: 115VAC 50/60Hz, 1pH.
Ouput Power: 0-90 VDC, 3pH.
Use with 1/4-1/2hp 90VDC motor.
TENV NEMA 4X (IP65) enclosure.
The DCC controller converts AC voltage to DC voltage and is used in conjunction with a DC motor to vary the output of a pump by varying the speed of the motor. Speed control can be done manually by the dial on the front of the controller or remotely by a 0-5/0-10 VDC or 4-20 ma signal. The controller can be mounted directly to a pump or in a remote location like a control room.
Manual-Auto Control.
Manual: Speed Control 0-100%.
Auto Control: via 4-20 mA input.
Input Power: 115VAC 50/60Hz, 1pH.
Ouput Power: 0-90 VDC, 3pH.
Use with 1/4-1/2hp 90VDC motor.
TENV NEMA 4X (IP65) enclosure.
| Product Type: | Motor Speed Controller |
| Brand: | KB Electronics |
