AFM-EC-200-T
Images are for representation only. Actual product may differ in size, color or options.

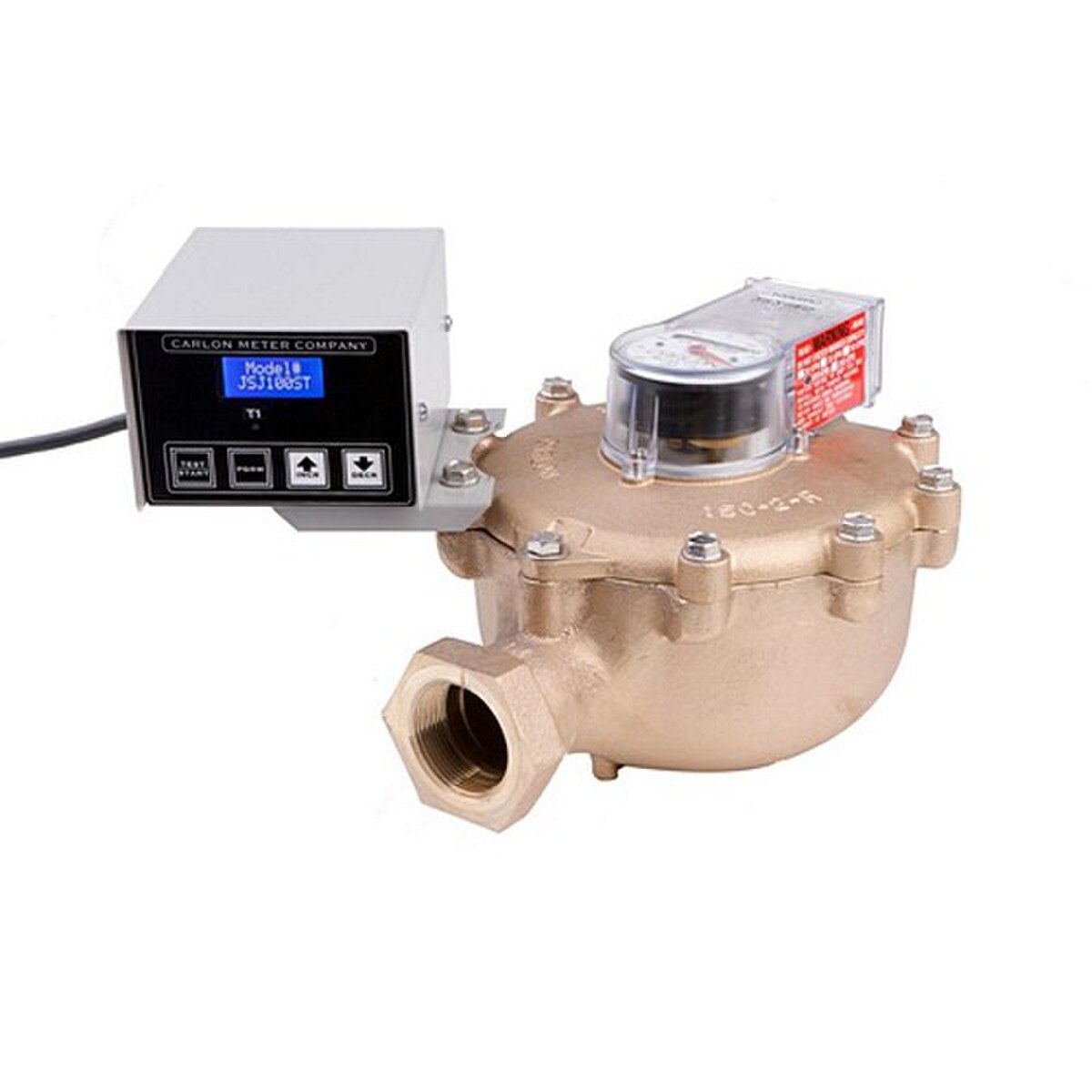

A&F Machine 2" Cold Water Electric Contacting Carlon Water Meter with Timer
Carlon’s JSJ® Programmable Meter/Timer System offers the most complete, economical and convenient system available for controlling chemical metering pumps, valves or other equipment. Installation is easy! Install the JSJ® meter, plug in the 120 volt power cord, and plug the unit to be controlled into the receptacle on the timer. The JSJ® meter is pre-wired to the Carlon Electronic Timer Control. Programmable options include sequential, minutes/seconds, and historical tracking of meter pulses to the controller.
Carlon’s JSJ® Programmable Meter/Timer System offers the most complete, economical and convenient system available for controlling chemical metering pumps, valves or other equipment. Installation is easy! Install the JSJ® meter, plug in the 120 volt power cord, and plug the unit to be controlled into the receptacle on the timer. The JSJ® meter is pre-wired to the Carlon Electronic Timer Control. Programmable options include sequential, minutes/seconds, and historical tracking of meter pulses to the controller.
| Product Type: | Contacting Water Meter |
| Brand: | Carlon Meter |
| Class: | Electric Contacting |
| Grade: | Cold Water |
| Material: | Bronze |
| Capacity: | 2 – 160 GPM |
| Temperature Range: | 105°F (40°C) max |
| Max Flow (GPM): | 160 |
| Max Pressure (PSI): | 150 |
| Flow Control: | 50 GPC (Gallons per Contact) |
| Connections: | 2 inch NPT |
| Includes: | timer |
| Certifications: | Meets or exceeds AWWA specifications |
