AFM-GC-500
Images are for representation only. Actual product may differ in size, color or options.

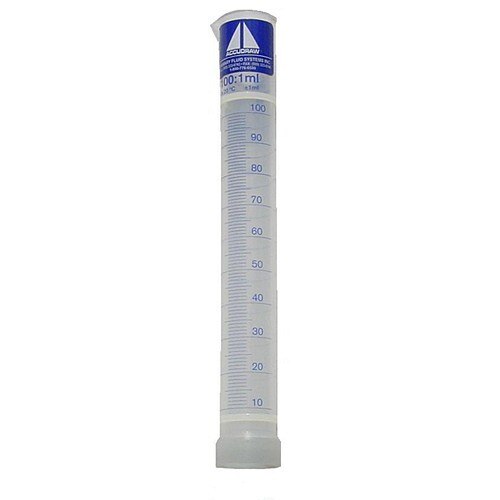

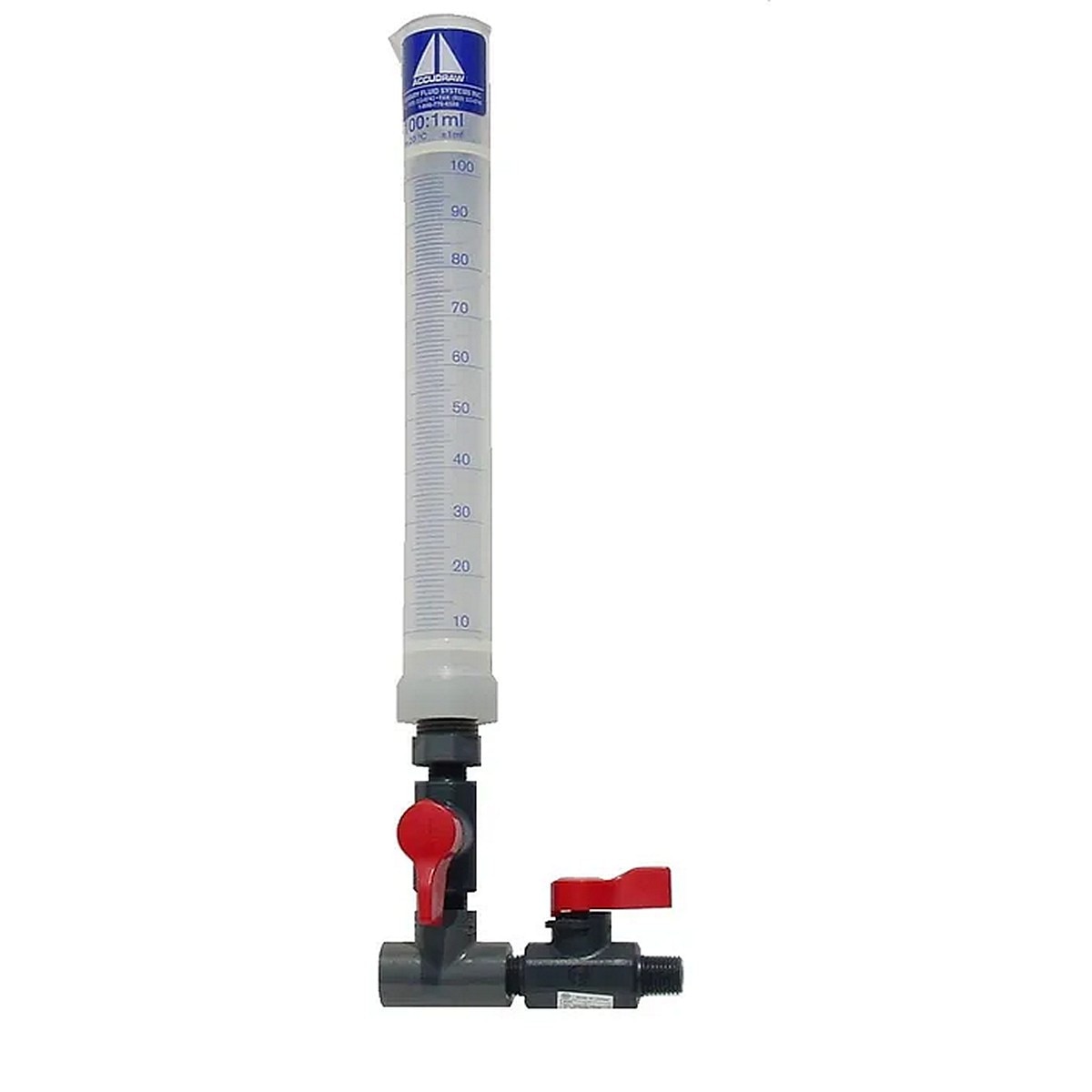

A&F Machine 500 ML Graduated Pump Calibration Column (Calibration Cylinder) with PVC Valves
The cylinder is made from polypropylene and the valves and interconnecting piping are PVC.
Graduated Cylinders are a must for accurate calibration of positive displacement pumps. The Graduated Cylinder is piped into the suction side of the pump and through the supplied valves the pump draws from either the supply tank or the draw down cylinder.
The cylinder is made from polypropylene and the valves and interconnecting piping are PVC.
Graduated Cylinders are a must for accurate calibration of positive displacement pumps. The Graduated Cylinder is piped into the suction side of the pump and through the supplied valves the pump draws from either the supply tank or the draw down cylinder.
| Product Type: | Calibration Column / Calibration Cylinder |
| Brand: | A&F Machine Products |
| Material: | Polypropylene with PVC valves and fittings |
| Capacity: | 500 mL |
| Graduation Interval: | 5.0ml |
| Connections: | 1/2" NPT |
| Height: | 18 inches |
| Outer Diameter: | 2 inches |
