Sample Cooler (each)
Images are for representation only. Actual product may differ in size, color or options.
Sample Cooler (each)

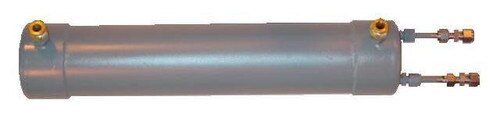

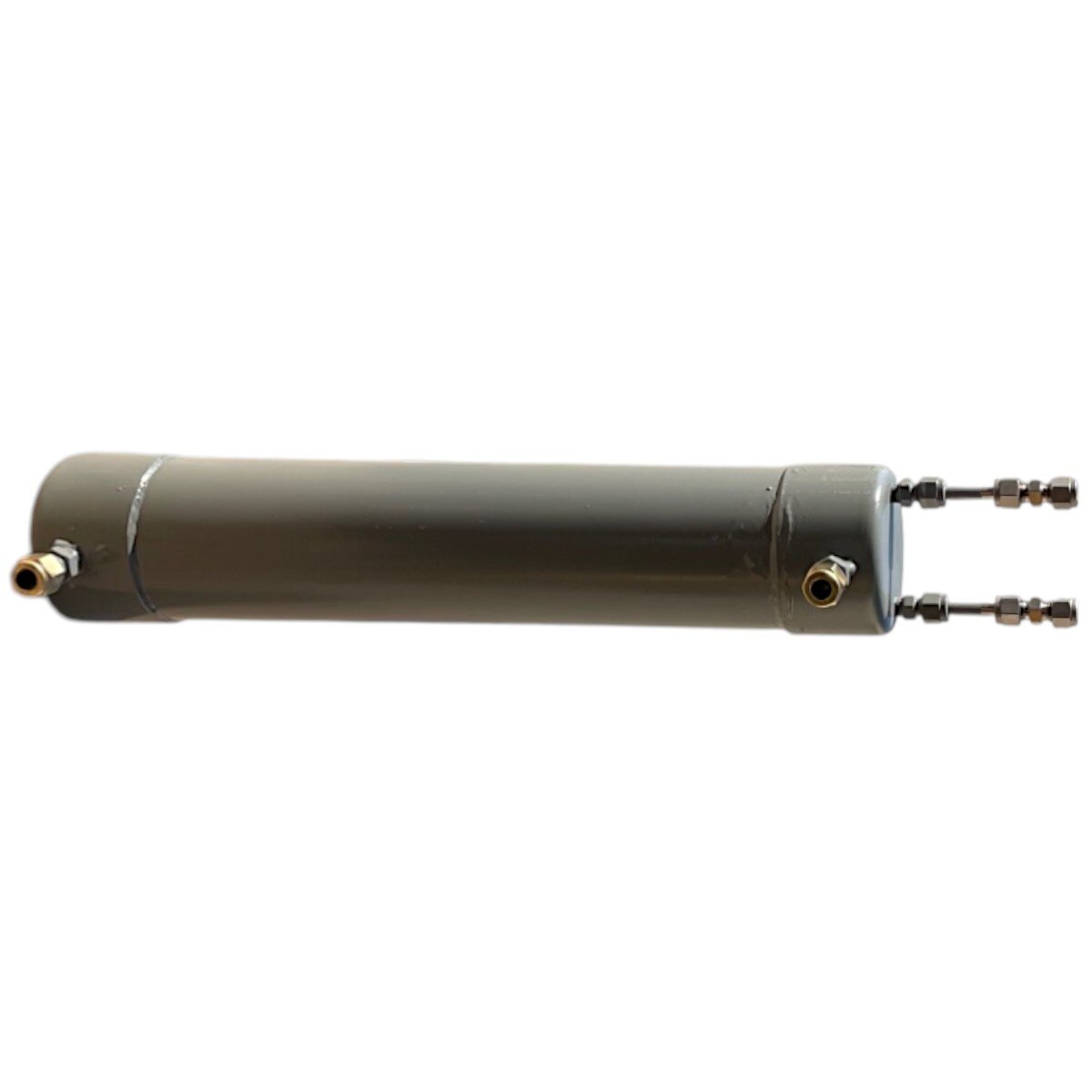

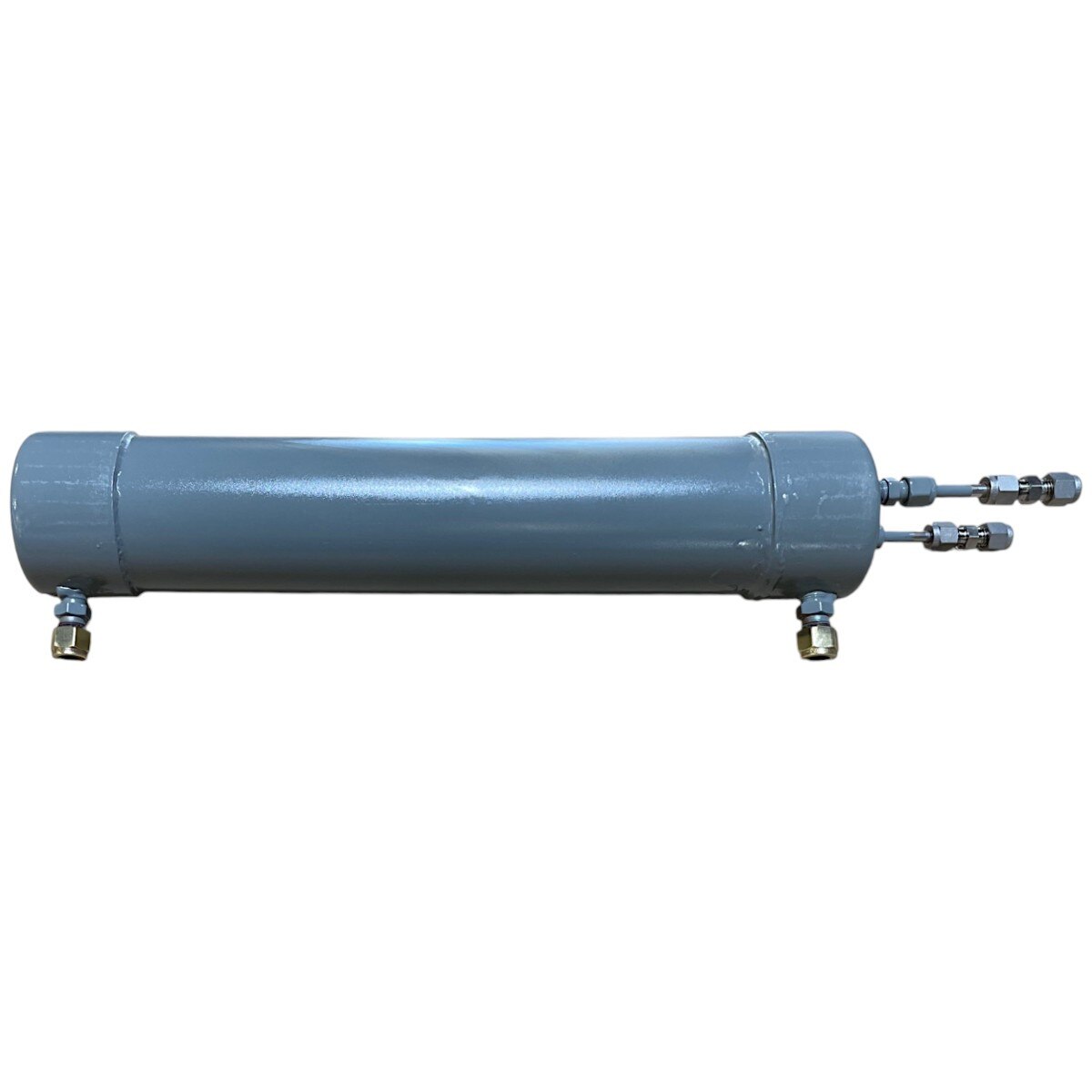

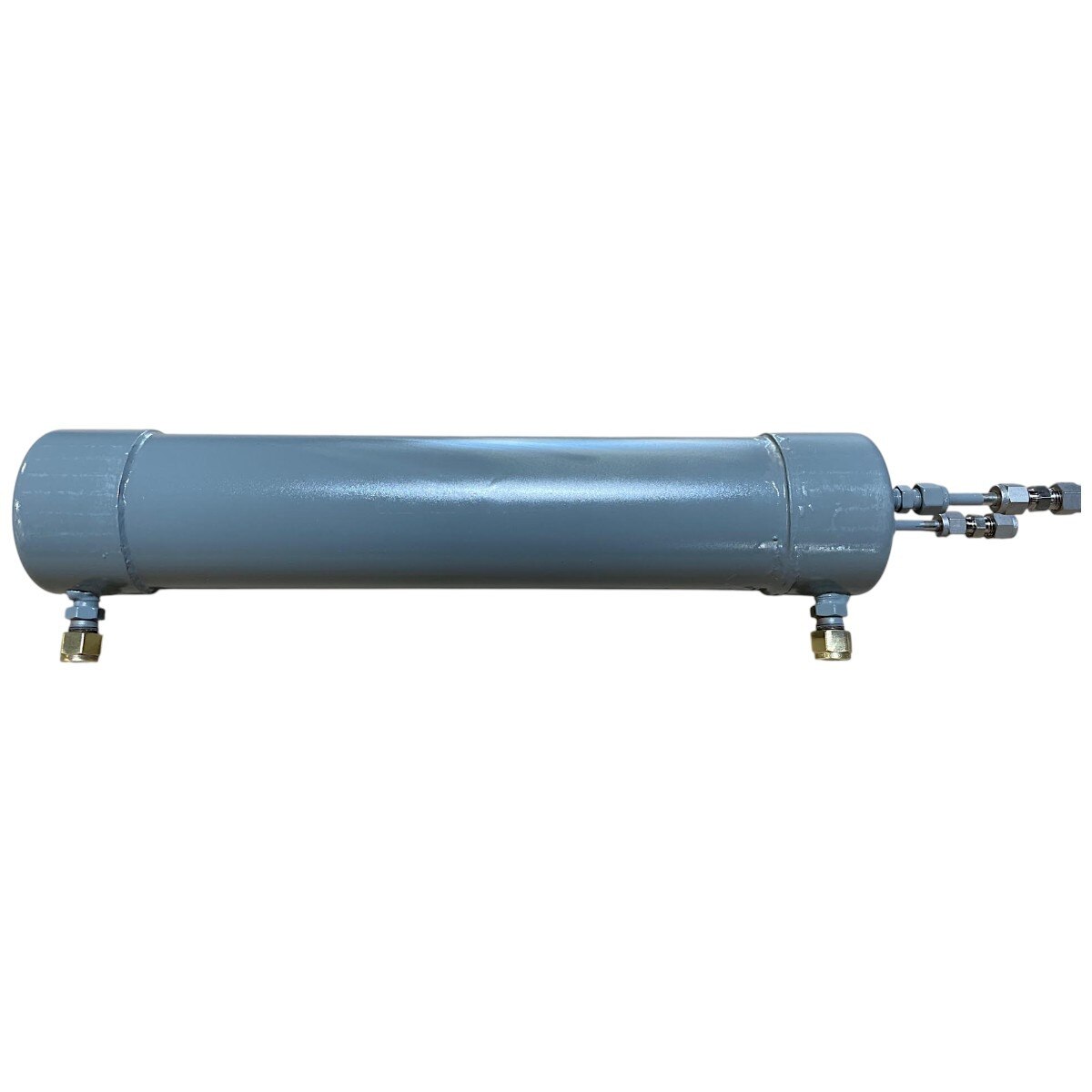

The SC-1 Sample Cooler is engineered to safely extract and cool high-temperature samples from steam and water systems. Featuring a 316 stainless steel coil housed in a durable brass/copper shell, the SC-1 is ideal for boiler blowdown, condensate, and other pressurized sampling applications. It ensures accurate sample collection while protecting downstream instrumentation from thermal damage. The SC-1 includes compression fittings for both steam and cooling water connections and is rated for high-pressure operation.
Specifications
- Part Number: SC-1
- Coil Material: 316 Stainless Steel
- Shell Material: Brass/Copper
- Steam Inlet Fittings: 1/4″ 316 SS Compression (Rated to 1000 PSI)
- Cooling Water Fittings: 3/8″ Brass Compression (Rated to 100 PSI)
- Application: Steam and water sample cooling
- Mounting: Vertical or horizontal installation
- Manufacturer: A&F Machine Products
Features
- Efficient heat exchange for safe sample cooling
- High-pressure rated fittings for steam and water lines
- Corrosion-resistant stainless steel coil
- Compact and rugged design for industrial environments
Applications
- Boiler blowdown sampling
- Condensate and feedwater analysis
- Steam system monitoring
- Power plant and industrial water treatment
| Product Type: | Boiler Sample Cooler |
| Brand: | A&F Machine Products |
| Material: | Stainless Steel and Brass |

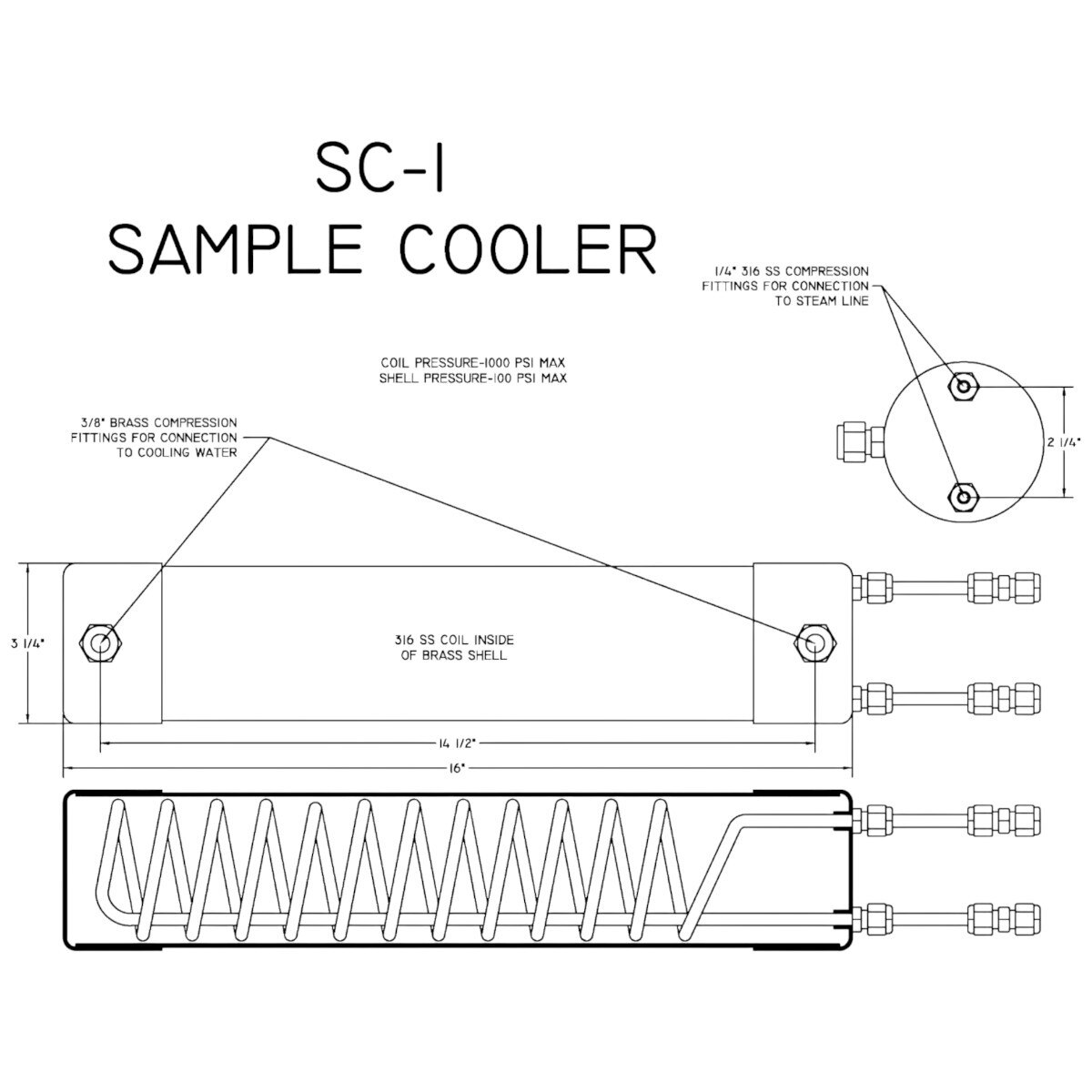

| Max Pressure (PSI): | Coil: 1000; Shell: 100 |
| Head/Fittings: | 3/8 in. Brass Compression Fittings to Cooling Water Fittings |
| Connections: | 1/4 in. 316SS Compression Fittings to Steam Line |
| Notes: | 316SS Coil inside Brass Shell |
