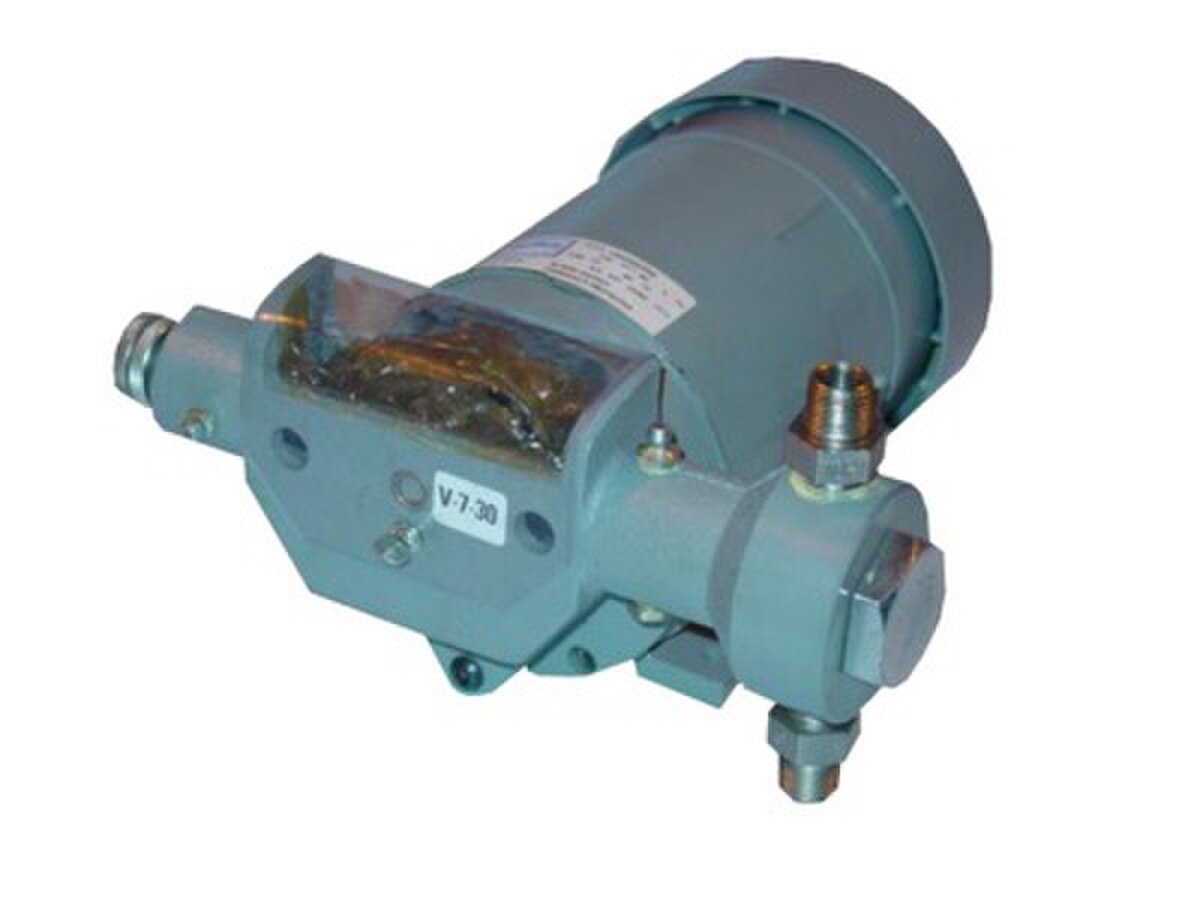

V-7 Piston Metering Pump, 24.0 GPD, 100 PSI, 30 SPM, 120VAC, 60Hz
Images are for representation only. Actual product may differ in size, color or options.
V-7 Piston Metering Pump, 24.0 GPD, 100 PSI, 30 SPM, 120VAC, 60Hz
4.8 - 24.0 GPD (gallons per day), 0.2 - 1.0 GPH (gallons per hour), 0.428 - 2.14 ounces per minute
18.2 - 91.0 LPD (liters per day), 0.758 - 3.79 LPH (liters per hour), 12.6 - 63.0 milliliters per minute
Output rated at 100 PSI (6.89 BAR) maximum pressure.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
Drive: 1/20 Horsepower, 120VAC, 60Hz Totally Enclosed Fan-Cooled Motor with 6' 3-wire US Plug.
Wet End Material: Cast iron body, stainless steel piston and check valves with 3/8" OD tubing connections.

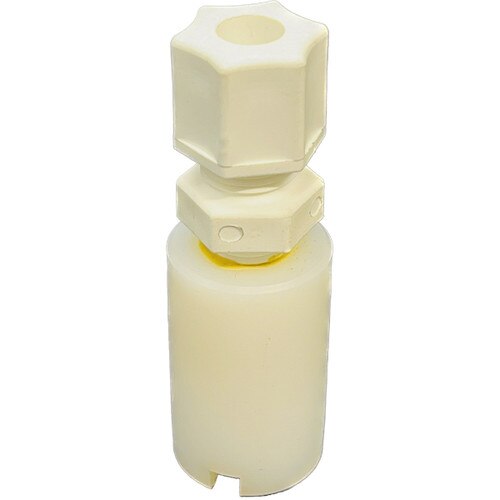

Includes: Polyethylene foot valve, polyethylene injection nozzle assembly, 5' suction tubing, 5' discharge tubing, wall mount bracket and instruction manual.
This model is a V-7 Series Mini Pump with a single drive to one pump head. A compact unit the V-7 mini pump is designed for lighter metering applications. It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required. The V-7 Series is a heavy duty piston metering pump designed for trouble free operation with a minimum of maintenance. The pump end of the unit utilizes a precision inline machined casting insuring exact alignment of the drive mechanism and the piston head assembly, minimizing wear. The pump is driven by a continuous heavy duty oil filled speed reducer. The wet end of the pump is precision machined and utilizes a ground stainless steel piston and check valves to minimize packing wear. The check valves are of the double ball check design to insure accurate metering. The ground and polished piston and double ball check valves are placed on the inlet and outlet of the pump wet end. The output of the pump is varied from zero to maximum by manually adjusting the piston stroke length. V-7 model mini pumps are prepackaged with a 1/20 Horsepower, 120VAC, Totally Enclosed Fan-Cooled, 60Hz, 1 Phase gear drive motor.
4.8 - 24.0 GPD (gallons per day), 0.2 - 1.0 GPH (gallons per hour), 0.428 - 2.14 ounces per minute
18.2 - 91.0 LPD (liters per day), 0.758 - 3.79 LPH (liters per hour), 12.6 - 63.0 milliliters per minute
Output rated at 100 PSI (6.89 BAR) maximum pressure.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 30 SPM (strokes per minute).
Drive: 1/20 Horsepower, 120VAC, 60Hz Totally Enclosed Fan-Cooled Motor with 6' 3-wire US Plug.
Wet End Material: Cast iron body, stainless steel piston and check valves with 3/8" OD tubing connections.
Includes: Polyethylene foot valve, polyethylene injection nozzle assembly, 5' suction tubing, 5' discharge tubing, wall mount bracket and instruction manual.
This model is a V-7 Series Mini Pump with a single drive to one pump head. A compact unit the V-7 mini pump is designed for lighter metering applications. It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required. The V-7 Series is a heavy duty piston metering pump designed for trouble free operation with a minimum of maintenance. The pump end of the unit utilizes a precision inline machined casting insuring exact alignment of the drive mechanism and the piston head assembly, minimizing wear. The pump is driven by a continuous heavy duty oil filled speed reducer. The wet end of the pump is precision machined and utilizes a ground stainless steel piston and check valves to minimize packing wear. The check valves are of the double ball check design to insure accurate metering. The ground and polished piston and double ball check valves are placed on the inlet and outlet of the pump wet end. The output of the pump is varied from zero to maximum by manually adjusting the piston stroke length. V-7 model mini pumps are prepackaged with a 1/20 Horsepower, 120VAC, Totally Enclosed Fan-Cooled, 60Hz, 1 Phase gear drive motor.
| Product Type: | Piston Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-7 |
| Class: | Simplex |
| Max Flow (GPH): | 1 |
| Max Flow (GPD): | 24 |
| Max Pressure (PSI): | 100 |
| Max Viscosity (CPS): | 1,000 |
| Max Strokes per Minute: | 30 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | SS (303 SS) |
| Valve Balls: | S6 (316 SS) |
| Valve / Seat / O-Ring: | SS (303 SS) |
| Motor: | 1/12 HP 120VAC, 1PH, TEFC, 60Hz |
| Connections: | 3/8" MNPT x 3/8" OD Tubing |
| Power Supply: | 120 VAC, 60Hz |
| Operating Modes: | Manual |
| Overall Dimensions: | 10 x 10 x 6 inches |
| Includes: | Foot Valve, Injection Nozle, Wall Mounting Bracket, Tubing and Owners Manual |
