DR-M2/1550 Abbe Multi-Wavelength Refractometer

(0)No Reviews yet
$25,014.50 $35,735.00
QuantityPrice
1$25,014.50
SKU: ATA-1412
Item Number: ATA-1412
Model Number: DR-M2/1550
Manufacturer: Atago
Brand: ATAGO
MPN: 1412
Condition: New

New

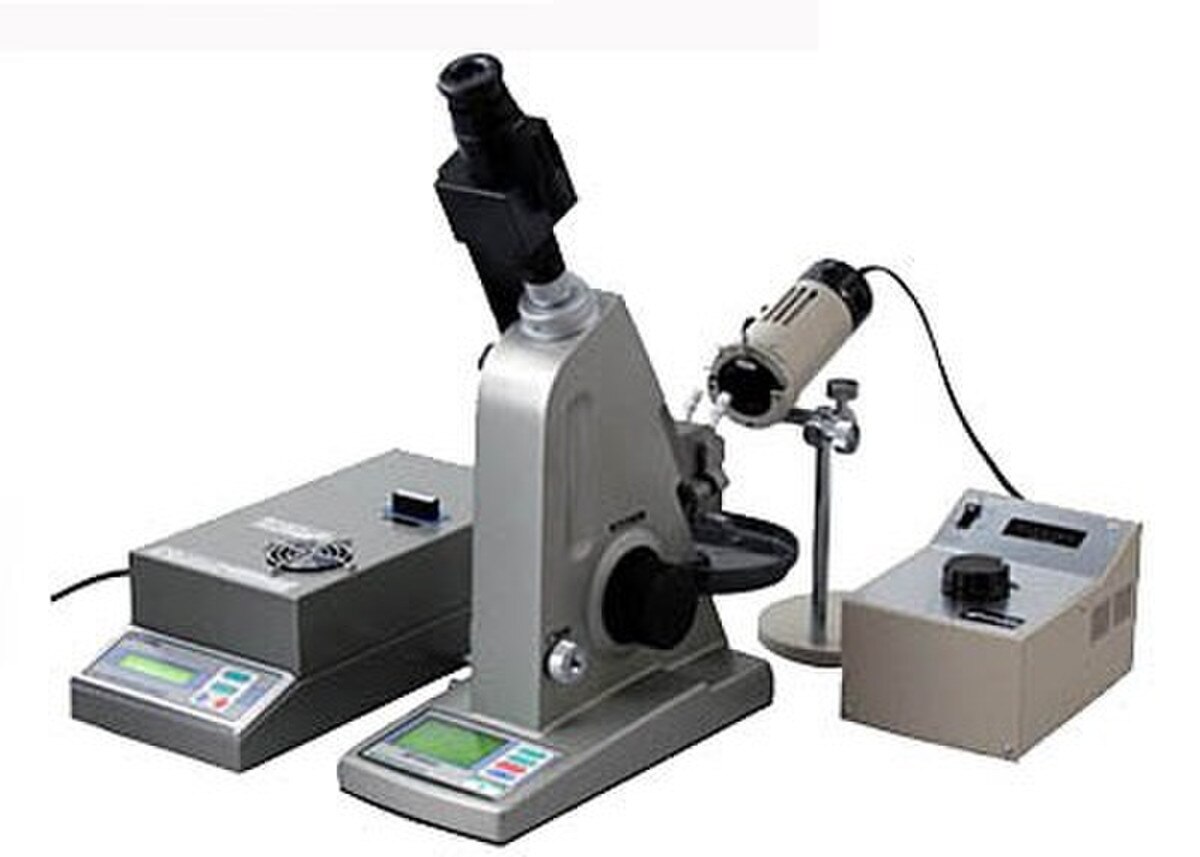

Atago 1412 DR-M2/1550 Abbe Multi-Wavelength Refractometer.
Wavelength 450nm
Refractive Index 1.3277 - 1.7379
Wavelength 589nm Refractive Index 1.3000 - 1.7100
Wavelength 680nm Refractive Index 1.2912 - 1.7011
Wavelength 1100nm Refractive Index 1.2746 - 1.6843
Wavelength 1550nm Refractive Index 1.2594 - 1.6690
Minimum Indication 0.0001 (refractive index), 0.1 (Abbe)
Measurement Accuracy ±0.0002 (refractive index with test piece at 589nm)
Digitally displays wavelengths ranging from 450 to 1550nm (with interference filter).
Includes: Monochromatic light source device, Near infrared ray viewer, mounting adapter and set screw, allen wrench, 589nm interference filter, Lighting glass for film measurement, allen wrench, test piece (nD 1.516), contact liquid monobromonaphthalene (4ml), tube band (10pcs), and owner's manual.

The DR-M2/1550 is a digital abbe multi-wavelength refractometer. Refractive index or Abbe number(vd or ve) can be measured at different wavelengths ranging from 450 to 1550nm. This refractometer digitally display measurement result of refractive index or Abbe number on the LCD. Measurement can be achieved by matching the boundary line with the intersection point of the cross hairs. They are connectable with digital printer OP-21 (A)(optional).

Output terminal: For printer, DP-21(A) (optional).
Size and weight: Refractometer 13x29x31cm 6.0kg, Light source unit 15x33x11cm 3.0kg

This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you


Product Type: Refractometer
Brand: ATAGO
Class: Abbe
