RX-9000α Bench top Digital Refractometer

(0)No Reviews yet
$17,479.85 $23,945.00
SKU: ATA-3263
Item Number: ATA-3263
Model Number: RX-9000α
Manufacturer: Atago
Brand: ATAGO
MPN: 3263
Condition: New

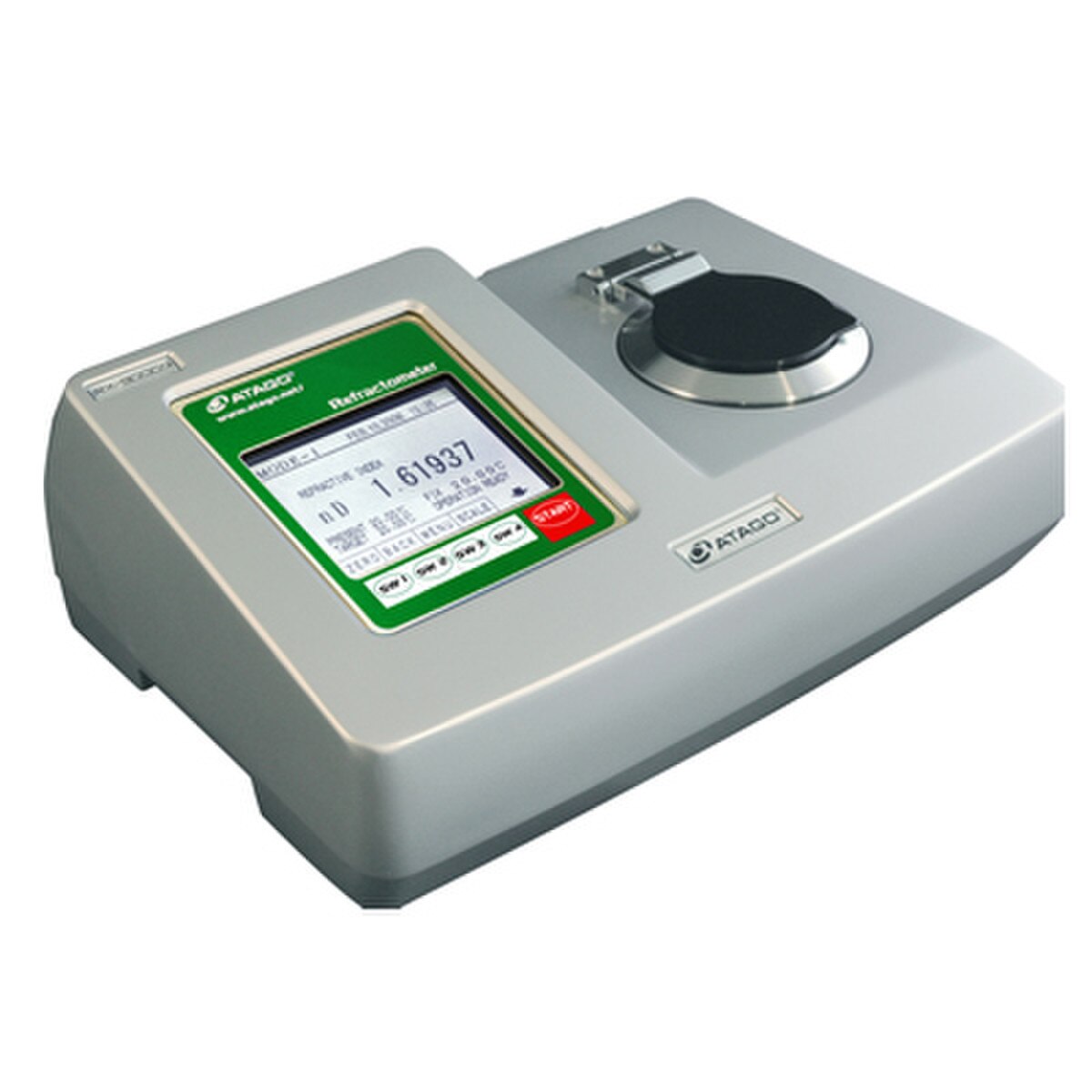

Atago 3263 RX-9000a Automatic Digital Bench Top Refractometer

The RX-9000a (alpha) is an automatic digital refractometer which can set measurement temperature internally and has the following features for measuring the refractive index, Brix or concentration of various liquids accurately and speedily. Since the RX-9000a has a thermo-module to control temperature, a constant temperature water bath is not necessary. The measurement starts automatically after the sample reaches your targeted temperature. The refractive index and Brix at your targeted temperature are speedily displayed. High Brix ± 0.03% and refractive index ± 0.00004 accuracy can be obtained. The RX-9000a displays a programmable top-and-bottom-limit-bar for your set control range. If the measurement value differs from that of your Standard Liquid or the other refractometer, it can be adjusted in a certain range. 30 kinds of user scales can be input according to your sample.The RX-9000a is capable of calling up 30 latest measurements.

Sample Refractive index(nD) measurements:
Light oil, Heavy oil, Crude oil, Industrial medicine, Flavor, Citrus oil, Chemicals, Methylene chloride, Polymer, Vegetable oils and fats, Edible oil, Animal oils and fats, Spice oils, Medicinal liquid, Insulating Oil, Heavy water, etc.

Sample Brix% measurements:
Fruit juice, Soft drinks, Tea drinks, Oolong tea, Green tea, Coffee drinks, Cocoa drinks, Lactic drinks, Alcohol drinks, Soybean milk, Concentrated fruit juice, Tomato Juice, Puree, Canned syrup, Liquid sugar, Glucose, Starch, Honey, Jam, Condensed milk, Soy sauce, Sauce, Ketchup, Soup, Wort, Vinegar, Pickle(liquid) Waste liquid of sugar, etc.

Sample User Scale measurements:
Lubricating oil, Water-soluble cutting oil, Quenching oil, Water-soluble detergent, Coolant and brine solutions, Ethylene glycol, Propylene glycol, Rust preventive, IPA, PVA, Ethanol, Alkaline solution, NaOH, Sodium carbonate, Sodium glutamate, Acetic acid, Citric acid, Amino acid, Glycerin, Protein, Injection liquid, Surfactant, Cupric sulfate, Formalin, Gelatin, Cesium chloride, Salt water, Calcium chloride, Seawater, Fire extinguishing solution, Coating solution, H2O2, DMF, Ammonia, Urine, Sizing liquid, Waste liquid of alcohol, etc.

Output terminals: Printer output, RS-232C output
Power supply: 100 to 240VAC, 50/60Hz
Power Consumption: 480VA
Dimensions and weight: 37 x 26 x 14cm, 9.0kg
Optional Accessories: DP-RX Digital Printer (prints Refractive index, Brix, User scale, Temperature, Month, Year, Time, Sample number).

This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you

Product Type: Refractometer
Brand: ATAGO
Grade: Digital Benchtop
Range: 1.33299 - 1.42009nD, 1.32500 - 1.70000nD, 0.00 - 50.00% Brix, 50.01 - 100.00% Brix
Resolution: 0.00001 / 0.01%
Accuracy: ±0.00004 / ±0.00010 / ±0.03% / ±0.05%
ATC: Yes, Brix Only (5.00 - 70.00°C)
Overall Dimensions: 37 x 26 x 14cm
Includes: Printer output, RS-232C output, power cable, keyboard mask, 3 plastic spoons, test report and instruction manual
