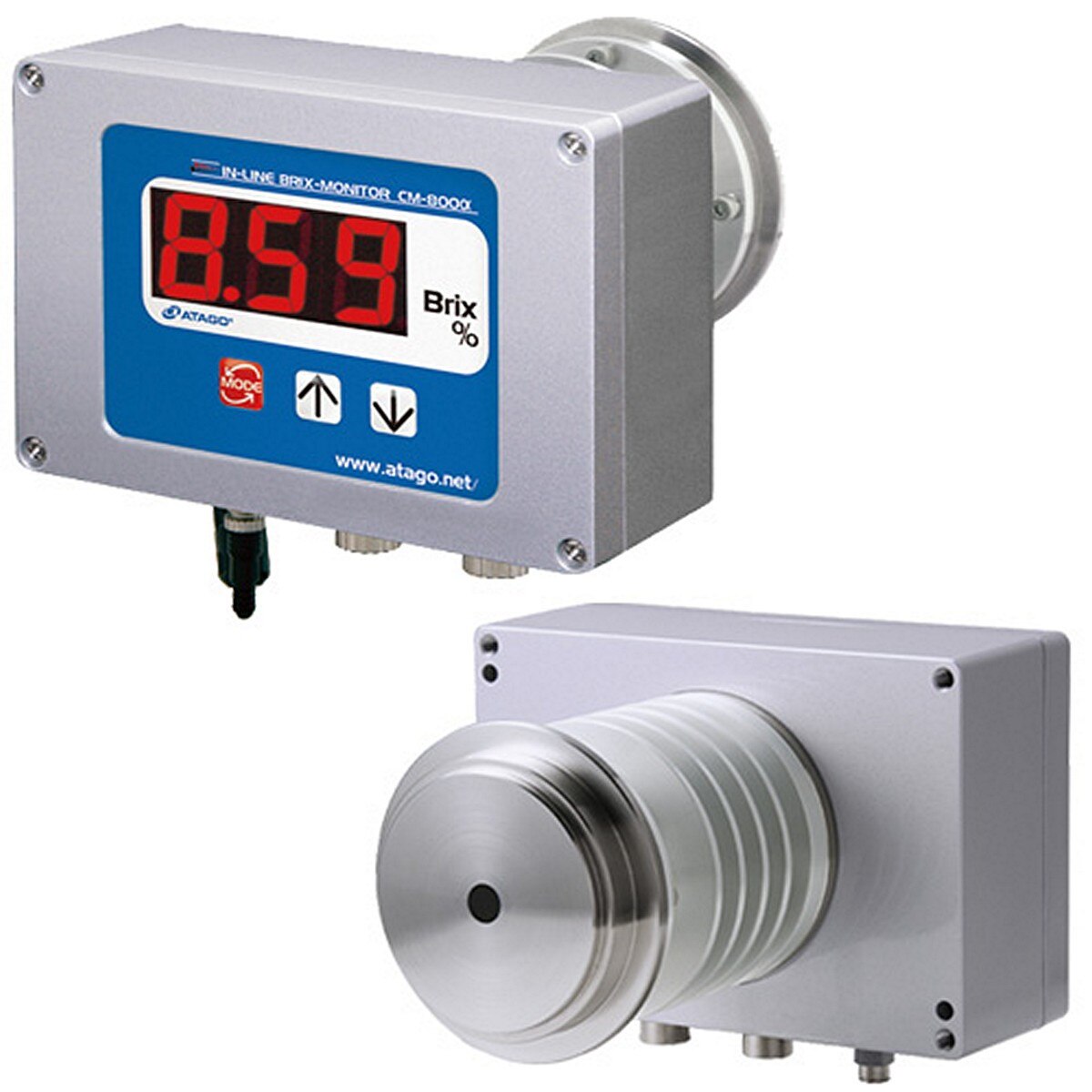

Atago CM-800α In-line Brix-Monitor
Images are for representation only. Actual product may differ in size, color or options.
Atago CM-800α In-line Brix-Monitor
This new addition to the CM series is compatible with the PRM-100α fittings. Fittings are available in a wide variety of shapes and sizes. The accuracy is ±0.1% across the entire range of 0-80% Brix.
| Model | CM-800α |
|---|---|
| Cat.No. | 3564 |
| Range | Brix : 0.0 to 80.0% Temperature:-15 to 160ﾟC/5 to 320ﾟF |
| Resolution | Brix : 0.01 or 0.1% (2nd decimal place shown per selection for 0.00 - 9.99%) Temperature : 1ﾟC / 1ﾟF |
| Accuracy | Brix : ±0.1% Temperature : ±1ﾟC / ±1ﾟF |
| Temperature compensation | 5 to 100ﾟC |
| Output | (1) DC 4 to 20mA (2) RS-232C output |
| Power Supply | DC24V |
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
| Product Type: | Inline Brix Monitor |
| Brand: | ATAGO |
| Class: | In-Line |
| Grade: | Digital |
| Range: | 0.0 - 80.0% Brix |
| Resolution: | 0.1% (0.01% optional from 0.00 and 9.99% Brix) |
| Accuracy: | ±0.1% |
| Temperature Range: | 5 to 100°C |
| Temperature Resolution: | 1°C |
| Temperature Accuracy: | ±1°C |
| ATC: | Yes, from 5 to 100°C |
| Overall Dimensions: | 16 x 17 x 11cm |
| Includes: | Monitor/display unit with integral refractometer prism/detector, 24VDC connector cable, inspection certificate, test report, and Owner's Manual |
| Notes: | Wetted parts temperature rage: -30 to 150°C |
