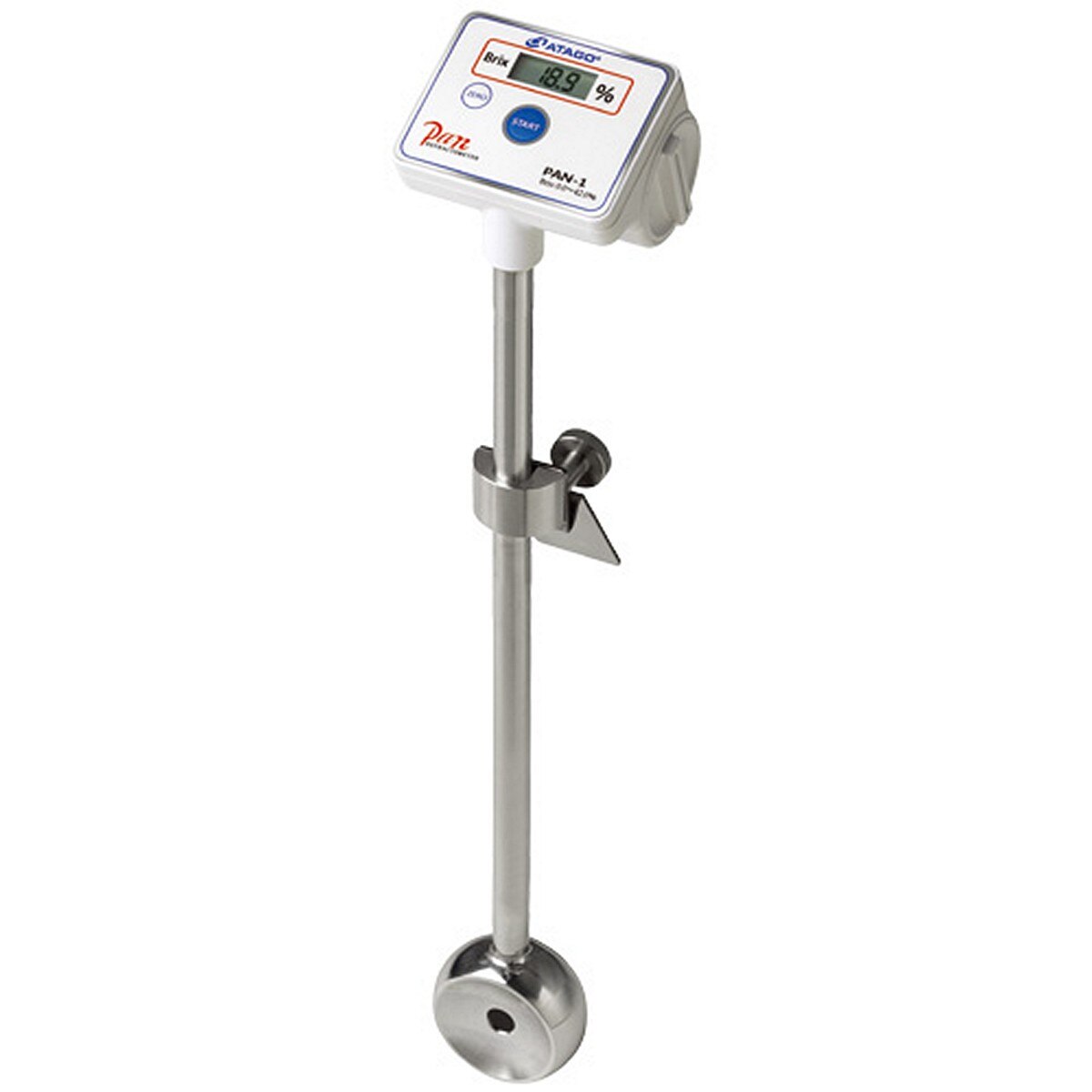

ATAGO® PAN‑1 M Digital Immersion‑Type Refractometer

ATAGO® PAN‑1 M Digital Immersion‑Type Refractometer

The ATAGO® PAN‑1 M is a digital immersion‑type refractometer designed for continuous, real‑time Brix measurement directly inside a pot or tank. The PAN‑1 M version features an extended 30 cm length, making it suitable for deeper vessels and applications requiring additional reach. No special installation equipment is required—simply mount the unit on the side of the vessel. The instrument automatically updates readings approximately every 35 seconds, alternating between Brix and temperature.

Key Features

• Extended 30 cm immersion length for deeper tanks
• Immersion‑type design for direct in‑tank measurement
• No special installation tools required
• Continuous real‑time Brix and temperature readings
• Automatic update cycle every ~35 seconds
• Wide temperature compensation range
• Battery‑powered for portable, flexible use
• IP67 (immersed part) and IP65 (display) protection ratings

More About This Item

The PAN‑1 M is widely used in industrial processing, cleaning systems, metal‑working operations, and food and beverage production. Its immersion‑type design eliminates the need for sampling, allowing operators to monitor concentration changes continuously. The rugged construction and waterproof design ensure reliable performance even in demanding environments.

ATAGO immersion‑type refractometers are manufactured in Japan and known for durability, ease of use, and stable measurement performance.

Technical Specifications

• Model: PAN‑1 M
• Catalog Number: 3597
• Range: Brix: 0.0 to 42.0%
• Accuracy: ±0.2%
• Temperature Compensation: 10.0 to 95.0°C
• Ambient Temperature: 10 to 45°C
• Power Supply:
  Size D alkaline battery × 1
  Compatible with LSD NiMH
• International Protection Class:
  Immersed part: IP67
  Display: IP65
• Dimensions & Weight: 80(W) × 400(L) × 72(H) mm, 660 g
• Included Accessories: Size D battery

Included Accessories

• Main unit
• Instruction manual
• Size D battery

The PAN‑1 M is ideal for operators who need continuous, reliable Brix monitoring directly inside deeper tanks or vessels. Its extended length, rugged waterproof design, and automatic measurement cycle make it a dependable solution for real‑time concentration control.
