ATAGO® PAN‑1DC L Digital Immersion‑Type Refractometer

ATAGO® PAN‑1DC L Digital Immersion‑Type Refractometer

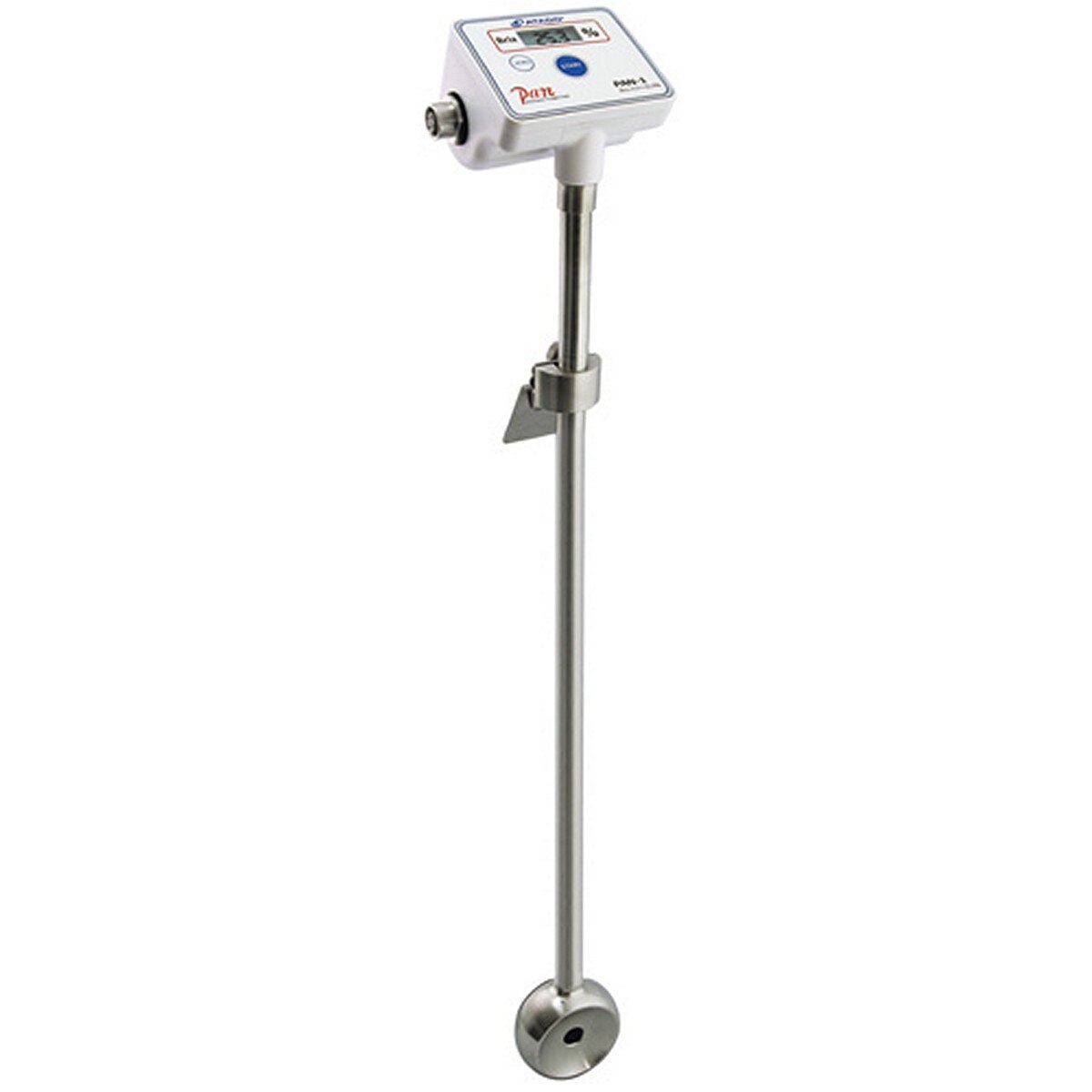

The ATAGO® PAN‑1DC L is a digital immersion‑type refractometer designed for continuous, real‑time Brix measurement directly inside a pot or tank. The PAN‑1DC L version features an extended 50 cm length, making it ideal for deeper vessels and applications requiring additional reach. Unlike the battery‑powered PAN‑1 series, the PAN‑1DC L operates on DC 24V and provides RS‑232C output for integration with control systems. The instrument automatically updates readings approximately every 35 seconds, alternating between Brix and temperature.

Key Features

• Extended 50 cm immersion length for deeper tanks
• Direct in‑tank measurement with no special installation tools required
• Continuous real‑time Brix and temperature readings
• Automatic update cycle every ~35 seconds
• RS‑232C output for system integration
• High/low alarm output via open‑collector signal
• Wide temperature compensation range
• DC 24V power supply for stable operation
• IP67 protection rating for immersed section

More About This Item

The PAN‑1DC L is widely used in industrial processing, cleaning systems, metal‑working operations, and food and beverage production. Its immersion‑type design eliminates the need for sampling, allowing operators to monitor concentration changes continuously. The rugged waterproof construction ensures reliable performance even in demanding environments.

ATAGO immersion‑type refractometers are manufactured in Japan and known for durability, ease of use, and stable measurement performance.

Technical Specifications

• Model: PAN‑1DC L
• Catalog Number: 3608
• Range: Brix: 0.0 to 42.0%
• Accuracy: ±0.2%
• Temperature Compensation: 10.0 to 95.0°C
• Ambient Temperature: 10 to 45°C
• Output: RS‑232C
• Alarm Output: Open‑collector output for high‑ and low‑limit settings
• Power Supply: DC 24V
• International Protection Class: Immersed part: IP67
• Dimensions & Weight: 80 × 72 × 600 mm, 780 g
• Included Accessories:
  Cable included (DC 24V input, RS‑232C output), standard length: 2 m

Included Accessories

• Main unit
• Instruction manual
• DC24V / RS‑232C cable (2 m standard)

The PAN‑1DC L is ideal for operators who need continuous, reliable Brix monitoring directly inside deeper tanks or vessels, with the added benefit of RS‑232C output for integration into automated systems. Its extended length, rugged waterproof design, and automatic measurement cycle make it a dependable solution for real‑time concentration control.

This item is NON‑REFUNDABLE/NON‑RETURNABLE once the order is placed. Please call if you are unsure this item will work for you.
