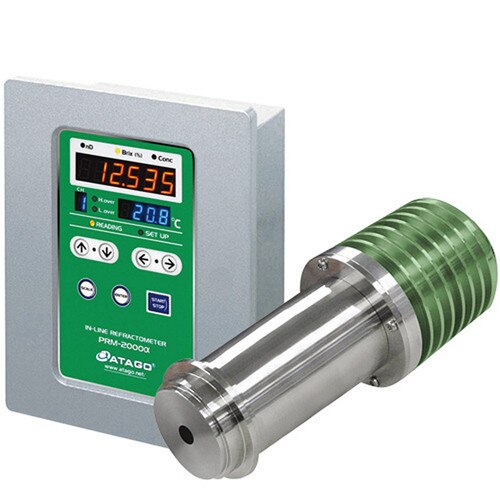

ATAGO® PRM‑2000α In‑Line Refractometer

ATAGO® PRM‑2000α In‑Line Refractometer

The ATAGO® PRM‑2000α is a high‑precision in‑line refractometer designed for low‑sugar beverages, cleaning solutions, and other applications requiring extremely accurate measurement in the 0–20% Brix range. It offers exceptional accuracy of ±0.007% up to Brix 2.000% and ±0.050% from Brix 2.001% to 20.000%, making it ideal for processes where small concentration changes must be detected reliably.

Key Features

• High‑accuracy Brix measurement for low‑sugar and low‑concentration applications
• Wide refractive index range suitable for various industrial fluids
• Continuous in‑line measurement of refractive index, Brix, concentration, and temperature
• LED light source (D‑line approximation) for stable optical performance
• IP67 protection for both detection and display sections
• RS‑232C and DC 4–20 mA output for integration with control systems
• High/low alarm output via open‑collector signal
• Temperature compensation from 5 to 90°C
• CIP/SIP resistance up to 165°C for 30 minutes

More About This Item

The PRM‑2000α is ideal for beverage production, cleaning solution monitoring, and any process requiring precise low‑range Brix measurement. Its robust construction and high accuracy make it suitable for automated systems where continuous monitoring and tight process control are essential.

ATAGO in‑line refractometers are manufactured in Japan and known for long‑term reliability, precision optics, and stable performance in demanding industrial environments.

Technical Specifications

• Model: PRM‑2000α
• Catalog Number: 3641
• Measurement Items: Refractive index, Brix (sucrose, HFCS, sugar‑free), concentration (%), temperature
• Range:
  Refractive index (nD): 1.32069 to 1.36500
  Brix: 0.000 to 20.000%
  Temperature: 0 to 100°C
• Resolution:
  Refractive index (nD): 0.00001
  Brix: 0.001%
• Accuracy:
  Refractive index: ±0.00001 (1.32069 to 1.33681)
  Refractive index: ±0.00010 (1.33682 and above)
  Brix: ±0.007% (0.000 to 2.000%)
  Brix: ±0.050% (2.001% to 20.000%)
• Temperature Compensation: 5 to 90°C
• Wetted Parts Temperature Resistance: −30 to 165°C during CIP/SIP (max 30 minutes)
• Light Source: LED (D‑line approximation)
• International Protection Class:
  Detection section: IP67
  Calculation display section: IP67
• Output:
  RS‑232C
  DC 4–20 mA
• Alarm Output: Open‑collector output for high‑ and low‑limit settings
• Cable:
  Detection section → Display section: 15 m standard (extendable up to 200 m)

Optional Accessories

• US‑α (Cat. No. 9112)
• Manual Prism Wiper – RE‑67590
• RS‑232C Output Cable – RE‑65301
• Alarm Output Cable – RE‑65305

Included Accessories

• Main unit
• Instruction manual

The PRM‑2000α is ideal for low‑sugar beverage production, cleaning solution monitoring, and any application requiring extremely precise low‑range Brix measurement. Its high accuracy, robust construction, and flexible output options make it a dependable solution for real‑time process control.

This item is NON‑REFUNDABLE/NON‑RETURNABLE once the order is placed. Please call if you are unsure this item will work for you.
